5. Close the detergent solution tap (1)
6. Disconnect the solution tank drainage hose (2) located at the rear of the machine
7. Unscrew the solution tank drainage hose cap
1. Unscrew the solution tank filling plug (3), located behind the operator's seat
2. Rinse the inside of the tank with a jet of water
3. Reassemble all the elements
ATTENTION: These operations must be carried out using gloves to protect
against contact with dangerous solutions.

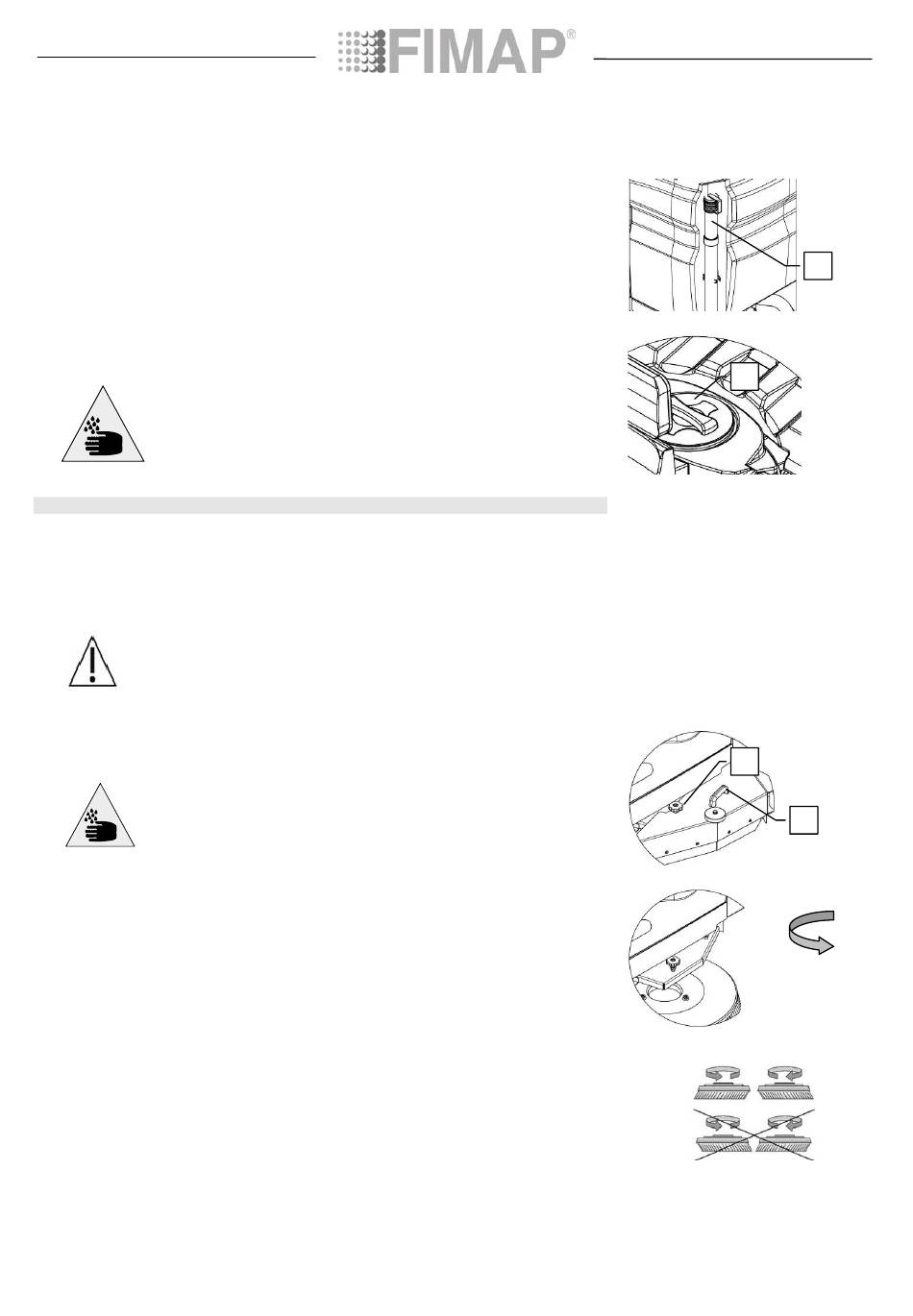

38. BRUSH CLEANING

Proceed as follows for cleaning:
1. Check that the parking brake is engaged, and if not, engage it
2. Check that the electrical system connector is disconnected from the battery connector, and if not,
disconnect it
3. Check the main switch is on "0" (turn it to this position if necessary)
ATTENTION: Before performing any maintenance, remove the keys from the
panel and disconnect the battery connector.
4. Turn the knobs (1) in an anti-clockwise direction
5. Use the handle (2) to remove the right splash guard cover
ATTENTION: This operation must be carried out using gloves to protect
against contact with dangerous solutions.
6. Rotate the brush anticlockwise until it comes out of the brush-holder plate seat, as shown in the figure.
The photo shows the rotation direction to hook up the right-hand brush; for the left-hand one, rotate in
the opposite direction.
You are advised to invert the right and left-hand brushes every day. If the brushes are not new however,
and have deformed bristles, it is better to reassemble them in the same position (the right-hand one on the
right, and the left-hand one on the left), to prevent the different inclination of the bristles producing an
overload on the brush motor as well as excessive vibrations.
WEEKLY MAINTENANCE
28
2
3
1
2
