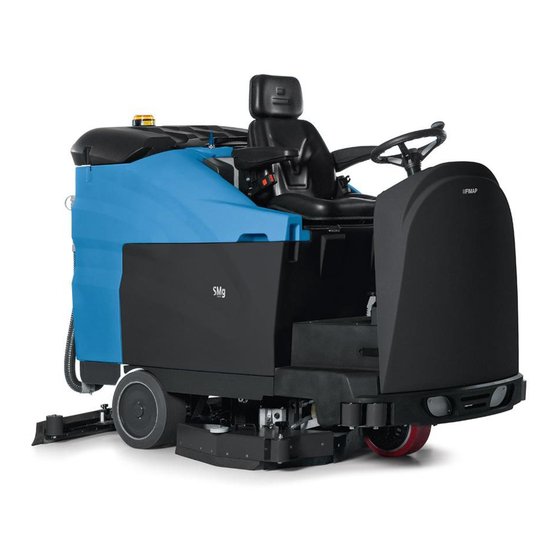

USE AND MAINTENANCE MANUAL
SMG120 B
ED. 09-2019
ORIGINAL
INSTRUCTIONS
Doc.
10036957
Ver.
AB
BASE
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMG120 B BASE and is the answer not in the manual?

Questions and answers

Related Manuals for Fimap SMG120 B BASE

Summary of Contents for Fimap SMG120 B BASE

  • Page 1 USE AND MAINTENANCE MANUAL SMG120 B BASE ED. 09-2019 ORIGINAL INSTRUCTIONS Doc. 10036957 Ver.
  • Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.

  • Page 3: Table Of Contents

    CONTENTS ON CONSIGNMENT OF THE MACHINE............................. 5   SERIAL NUMBER PLATE ................................. 5   INTRODUCTORY COMMENT ................................5   INTENDED USE ....................................5   TECHNICAL DESCRIPTION ..................... ERRORE. IL SEGNALIBRO NON È DEFINITO.   SYMBOLS USED ON THE MACHINE ..............................7  ...
  • Page 4 43. ADJUSTING THE HEIGHT OF THE SIDE SPLASH GUARDS ..................................31   TROUBLESHOOTING ..................................32   44. THE MACHINE DOES NOT START ............................................32   45. INSUFFICIENT WATER ON THE BRUSHES ........................................32   46. THE SQUEEGEE DOES NOT DRY PERFECTLY ......................................32  ...

  • Page 5: On Consignment Of The Machine

    On consignment of the machine Serial number plate When the machine is consigned to the customer, an immediate check must be performed to ensure all the material mentioned in the shipping documents has been received, and also to check the machine has not suffered damage during transportation.

  • Page 6: Technical Description

    TECHNICAL DESCRIPTION SMg 120 BASE Nominal input power [IEC 60335-2-72; IEC 62885-9] 4,97 Working width 1200 Squeegee width 1266 Working capacity, up to 7250 Disc brush 2 / 610 No. / mm Disc brush rotations Brush motor 36/2000 Force exerted on the brush (step-01; step-02; step-03) 1275;...

  • Page 7: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Main switch or key switch symbol Used on the instrument panel, to indicate the key switch for machine operation on (ON-I) or off (OFF-0) Symbol denoting horn Used to indicate the acoustic alarm button Symbol denoting forwards and backwards speed selector Used on the instrument panel, to indicate the speed of the forwards or backwards movements of the machine Symbol denoting pressure applied to the brushes Used to indicate the knob for increasing the brush pressure...
  • Page 8 SYMBOLS USED ON THE MACHINE Symbol denoting recovery tank rotation Used on the instrument panel, for the green indicator light indicating rotation consent to recovery tank Symbol denoting tap regulation Used on the central panel of the steering cover, to indicate the tap knob to regulate the detergent Parking brake pedal symbol Used on the solution tank to indicate the position of the parking brake pedal Symbol denoting the machine's power supply voltage...
  • Page 9 SYMBOLS USED ON THE MACHINE Label relating to uncoupling the seat support Displayed on the seat support to indicate the uncoupling handle Symbol denoting treading ban Used to indicate the area of the machine on which it is forbidden to tread or stand Label indicating the position of the suction motor thermal circuit breakers...

  • Page 10: General Safety Regulations

    GENERAL SAFETY REGULATIONS Before using the machine, please read the following document carefully and follow the instructions contained herein, along with the instructions in the document supplied with the machine itself, “GENERAL SAFETY REGULATIONS” (document code 10083659).

  • Page 11: Preparation Of Machine

    PREPARATION OF MACHINE 1. HANDLING THE PACKED MACHINE The machine is contained in specific packaging with a pallet for the handling with fork trucks. The packages CANNOT be placed on top of each other. The total weight of the machine and packaging is 680kg. The packaging dimensions are as follows: SMG120 B A: 1620mm...

  • Page 12: Steering Column Components

    PREPARATION OF MACHINE 3. Level indicator for battery/hour meter 4. Red warning light indicating that there is a malfunction in the machine traction 5. Red indicator light, indicates that the parking brake is engaged or indicates the machine's braking system oil reserve level 6.

  • Page 13: Footboard Components

    PREPARATION OF MACHINE 5. FOOTBOARD COMPONENTS The components at the front right of the footboard are identified as follows: 14. Forward movement pedal 15. Backward movement pedal 16. Brake pedal 17. Parking brake pedal 18. Battery charger plug insertion hatch 6.

  • Page 14: Front Machine Components

    PREPARATION OF MACHINE 24. Blinking light 25. Water/detergent solution filler cap 26. Rapid refill kit (optional) 7. FRONT MACHINE COMPONENTS The front components of the machine are identified as follows: 27. Headlights (optional) 8. BATTERY TYPE To power the machine it is necessary to use: ...

  • Page 15: Connecting The Batteries And Battery Connector

    PREPARATION OF MACHINE ATTENTION: You are advised to use airtight batteries only, to avoid the leakage of acids! ATTENTION: users are advised to always wear protective gloves, to avoid the risk of serious injury to hands. To insert batteries proceed as follows: 1.

  • Page 16: Connecting The Battery Charger

    PREPARATION OF MACHINE 12. CONNECTING THE BATTERY CHARGER In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the “discharged batteries” blinking light. ATTENTION: Never leave the batteries completely discharged, even if the machine is not being used.

  • Page 17: Service Brake - Parking Brake

    PREPARATION OF MACHINE 14. SERVICE BRAKE – PARKING BRAKE The machine has an electronic braking system. To brake in normal conditions, just remove your foot from the accelerator pedal. If this service brake is working badly, or if necessary, activate the brake pedal (1) pushing it downwards.

  • Page 18: Increasing The Pressure On The Brush Head Unit

    PREPARATION OF MACHINE 16. INCREASING THE PRESSURE ON THE BRUSH HEAD UNIT This machine can increase the pressure on the brushes via the joystick (1) located on the instrument panel; it has three different settings: Step01: the weight exerted on the floor is 110 kg. Step02: the weight exerted on the floor is 130 kg.

  • Page 19: Recovery Tank

    PREPARATION OF MACHINE 20. RECOVERY TANK Make sure the recovery tank is empty, otherwise empty it completely. Check the cap of the drainage hose (1) (on the rear of the machine) is correctly closed. Check that the drain pipe cap (2) at the rear of the machine is correctly closed. 21.

  • Page 20: Assembling The Brushes

    PREPARATION OF MACHINE 24. ASSEMBLING THE BRUSHES To assemble the brushes of the brush head unit, proceed as follows: 1. Check that the brush head body is lifted off the ground 2. Turn the main switch key anticlockwise to the “0” position 3.

  • Page 21: Work

    WORK 26. WORK Before beginning to work, it is necessary to: 1. Make sure the recovery tank is empty, otherwise empty it completely 2. Check that the main switch (3) of the machine is set to “0” 3. Connect the battery connector (1) to the electric system connector (2) 4.

  • Page 22: Braking System Oil Level

    WORK 10. Rotate the tap lever (7) in an anticlockwise direction, allowing the full passage of the detergent. 11. When the forward movement pedal (8) is pressed, the machine begins to move, the squeegee lowers automatically and the suction motors will begin to work. Simultaneously, the brushes will begin to rotate and the solenoid valve will begin to function.

  • Page 23: At The End Of The Work

    AT THE END OF THE WORK 31. AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: 1. Fully rotate the tap lever (1) in a clockwise direction, completely closing the passage of the detergent solution.

  • Page 24: Daily Maintenance

    DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 32. CLEANING THE VACUUM MOTOR FILTER 1. Check the recovery tank is empty (if necessary, empty it) 2. Check that the parking brake is engaged, and if not, engage it 3. Check that the machine's main switch is on “OFF-0”; if this is not the case, turn the key of the main switch (1) a quarter of a turn anticlockwise (to the 0 position) 4.

  • Page 25: Cleaning The Recovery Tank

    DAILY MAINTENANCE 33. CLEANING THE RECOVERY TANK 1. Check the recovery tank is empty (if necessary, empty it). 2. Check that the parking brake is engaged, and if not, engage it ATTENTION: These operations must be carried out using gloves to protect against contact with dangerous solutions.

  • Page 26: Cleaning The Squeegee

    DAILY MAINTENANCE 34. CLEANING THE SQUEEGEE The careful cleaning of the whole vacuum unit ensures better drying and cleaning of the floor as well as a longer suction motor life. Proceed as follows for cleaning: 1. Check that the parking brake is engaged, and if not, engage it 2.

  • Page 27: Weekly Maintenance

    WEEKLY MAINTENANCE 36. CLEANING THE VACUUM HOSE Whenever vacuum seems to be unsatisfactory, check that the vacuum hose is not obstructed. If necessary clean with a jet of water as follows: 1. Make sure the recovery tank is empty, otherwise empty it completely 2.

  • Page 28: Brush Cleaning

    WEEKLY MAINTENANCE 5. Close the detergent solution tap (1) 6. Disconnect the solution tank drainage hose (2) located at the rear of the machine 7. Unscrew the solution tank drainage hose cap 1. Unscrew the solution tank filling plug (3), located behind the operator's seat 2.

  • Page 29: Extraordinary Maintenance

    EXTRAORDINARY MAINTENANCE 39. REPLACING THE FRONT SQUEEGEE RUBBER Vacuum will be poor and the machine will not dry perfectly if the front squeegee rubber is worn. Proceed as follows to replace it: 1. Check that the parking brake is engaged, and if not, engage it 2.

  • Page 30: Replacing The Front Splash Guard Rubber On The Side Cover Of The Brush Head

    EXTRAORDINARY MAINTENANCE 4. Turn the knobs (1) in an anti-clockwise direction 5. Use the handle (2) to remove the right splash guard cover ATTENTION: This operation must be carried out using gloves to protect against contact with dangerous solutions. 6. Use suitable equipment to remove the rubber-pressing blade (3) from inside the side cover, and unscrew the screws (4) which fasten it to the splash guard support 7.

  • Page 31: Adjusting The Height Of The Side Splash Guards

    EXTRAORDINARY MAINTENANCE 43. ADJUSTING THE HEIGHT OF THE SIDE SPLASH GUARDS If the splash guard rubbers on the brush head side cover not are not positioned correctly in relation to the floor, these may not function properly (i.e. they may not conduct water to the squeegee correctly). The height of the splash guard rubbers must therefore be adjusted.

  • Page 32: Troubleshooting

    TROUBLESHOOTING 44. THE MACHINE DOES NOT START 1. Check that batteries are charged 2. Make sure the electric system connector is connected to the battery connector 3. Check the key switch is ON/I 45. INSUFFICIENT WATER ON THE BRUSHES 1. Check there is water in the solution tank 2.

  • Page 33: Electric Fuses And Thermal Cut-Outs

    TROUBLESHOOTING 51. ELECTRIC FUSES AND THERMAL CUT-OUTS The machine is fitted with the following electrical protection systems: Power fuses arranged in the electrical box, to protect against short-circuiting thermal trip units arranged on the outside of the handlebars, to protect the following engines: 1.

  • Page 34: Disposal

    DISPOSAL Proceed with scrapping the machine in accordance with the waste disposal regulations in force in the country in which the machine is being used.

  • Page 35: Choosing And Using The Brushes

    CHOOSING AND USING THE BRUSHES POLYPROPYLENE BRUSH (PPL) Used on all types of floors. Good resistance to wear and tear, and hot water (no greater than 60°C.). PPL is non-hygroscopic and therefore retains its characteristics even when working in wet conditions. NYLON BRUSH Used on all types of floors.

  • Page 36: Ec Declaration Of Conformity

    37050 Santa Maria di Zevio (VR) - ITALY Santa Maria di Zevio, 18/09/2019 FIMAP S.p.A. Legal representative Giancarlo Ruffo FIMAP spa Via Invalidi del Lavoro, 1 - 37059 S.Maria di Zevio (Verona) Italy Tel. +39 045 6060411 r.a. - Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com...
  • Page 40 FIMAP - Via Invalidi del Lavoro, 1 - 37059 S. Maria di Zevio - Verona - Italy Tel. +39 045 6060411 - Fax +39 045 6060417 - E-mail: fimap@fimap.com www.fimap.com...
