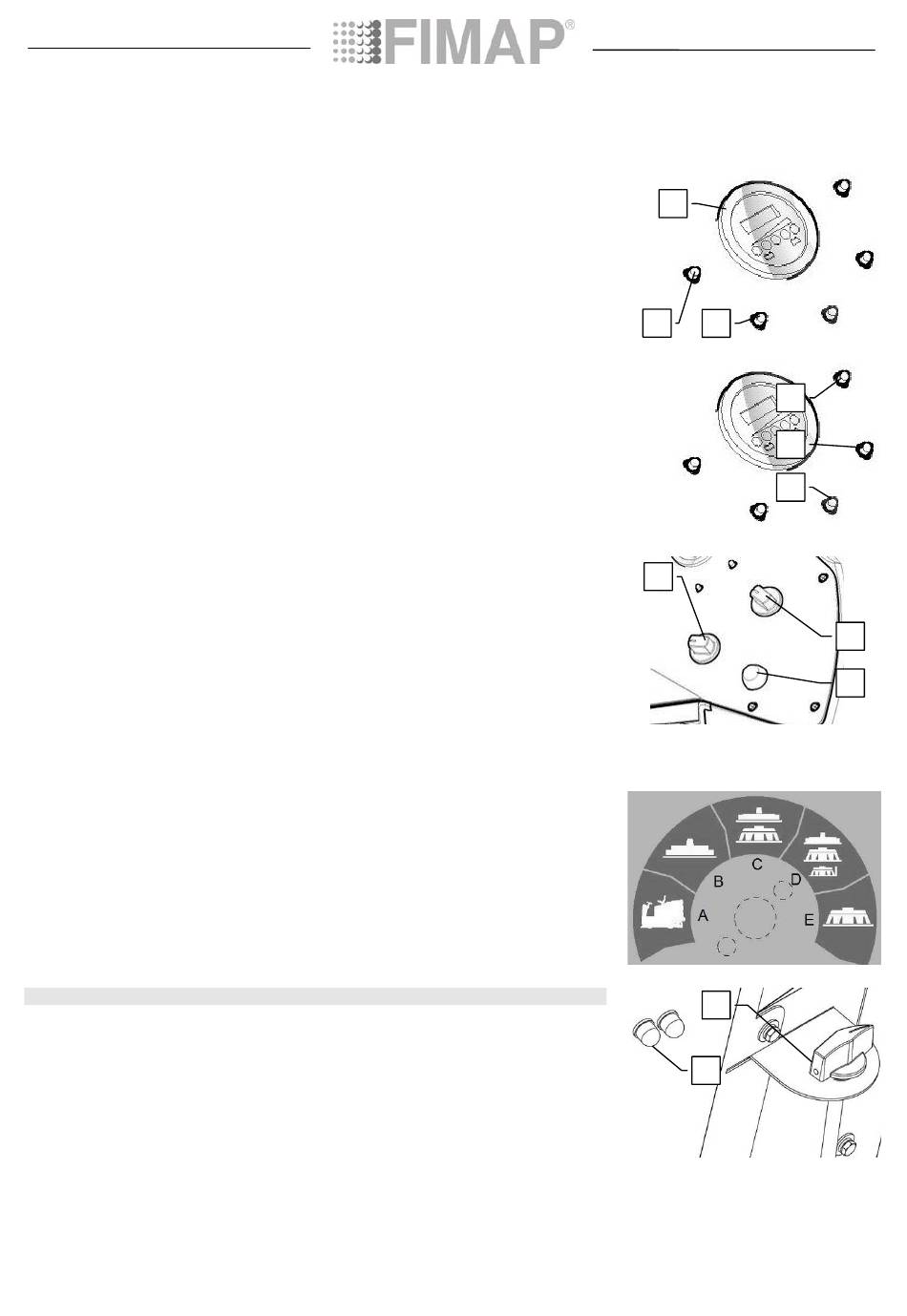

3. Level indicator for battery/hour meter

4. Red warning light indicating that there is a malfunction in the machine traction

5. Red indicator light, indicates that the parking brake is engaged or indicates the machine's braking

system oil reserve level

6. Red warning light indicating that the brush head motor is working under pressure (force)

7. Red indicator light, indicates that the detergent solution has reached the reserve level

8. Green indicator light, indicates consent to rotate the recovery tank

9. 3-way knob to set force applied to brushes during operation

10. Horn button

11. Working program adjustment switch, I-Drive device

Choose the desired working program with the I-Drive device:

A. Transfer: movement of the machine without working

B. Drying: use the squeegee only

C. Central brushes Scrubbing / Drying: use both the brushes and the squeegee

D. Central brushes moved to the side Washing / Drying: use of both the brushes that have been moved

laterally to the right and the squeegee (valid only for SMG120 EM)

E. Scrubbing only: use brushes only

4. STEERING COLUMN COMPONENTS

The steering column components on the left side are identified as follows:

12. suction motor thermal circuit breakers

13. Detergent delivery regulating knob

PREPARATION OF MACHINE
