Schematic diagrams STEVAL-IME008V1

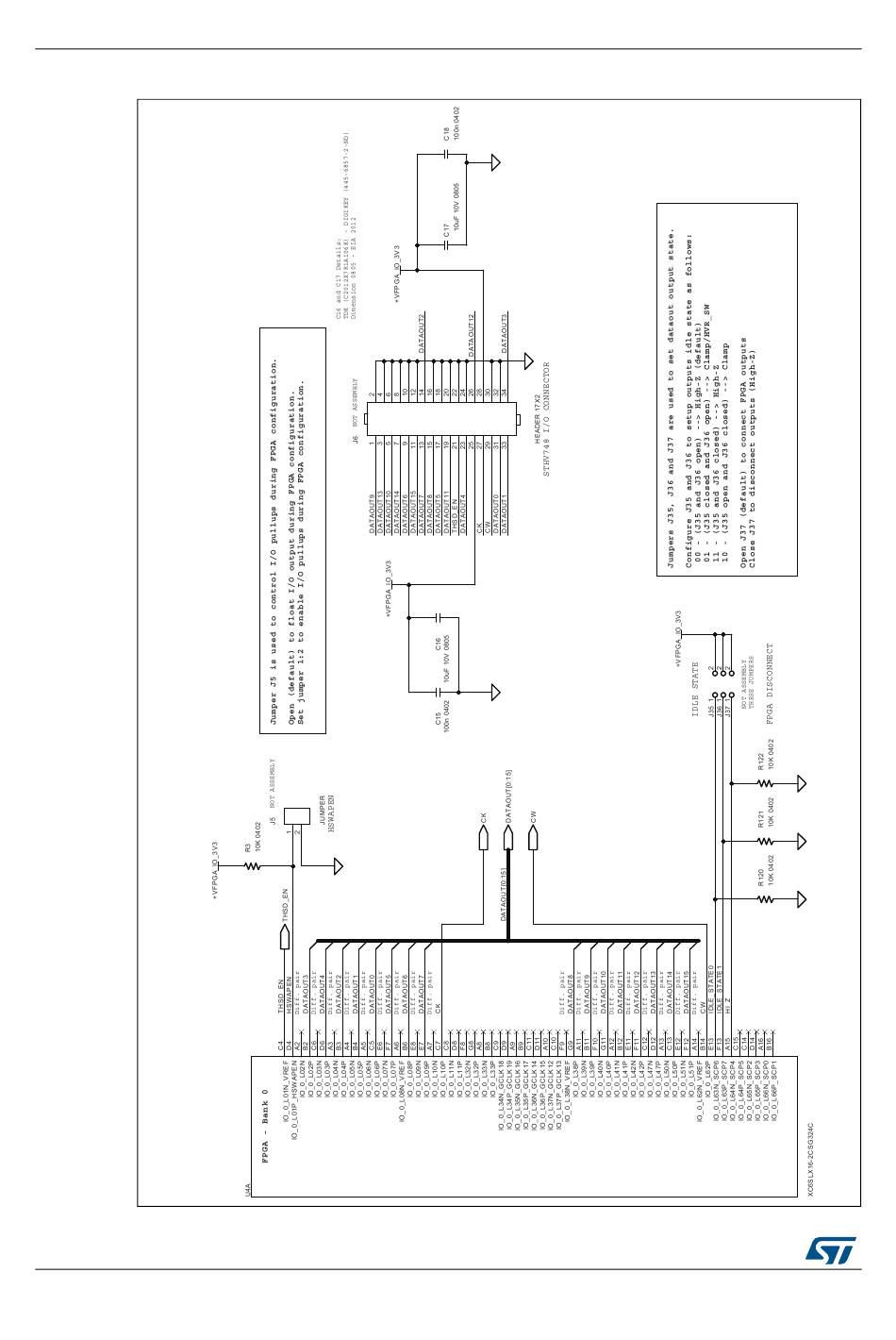

Figure 5. STEVAL-IME008V1 circuit schematic (5 of 16)
GSPG30072014DI1200
