STMicroelectronics STEVAL-IME008V1 Wiring Manual And Hardware Reference page 3

STEVAL-IME008V1 Schematic diagrams

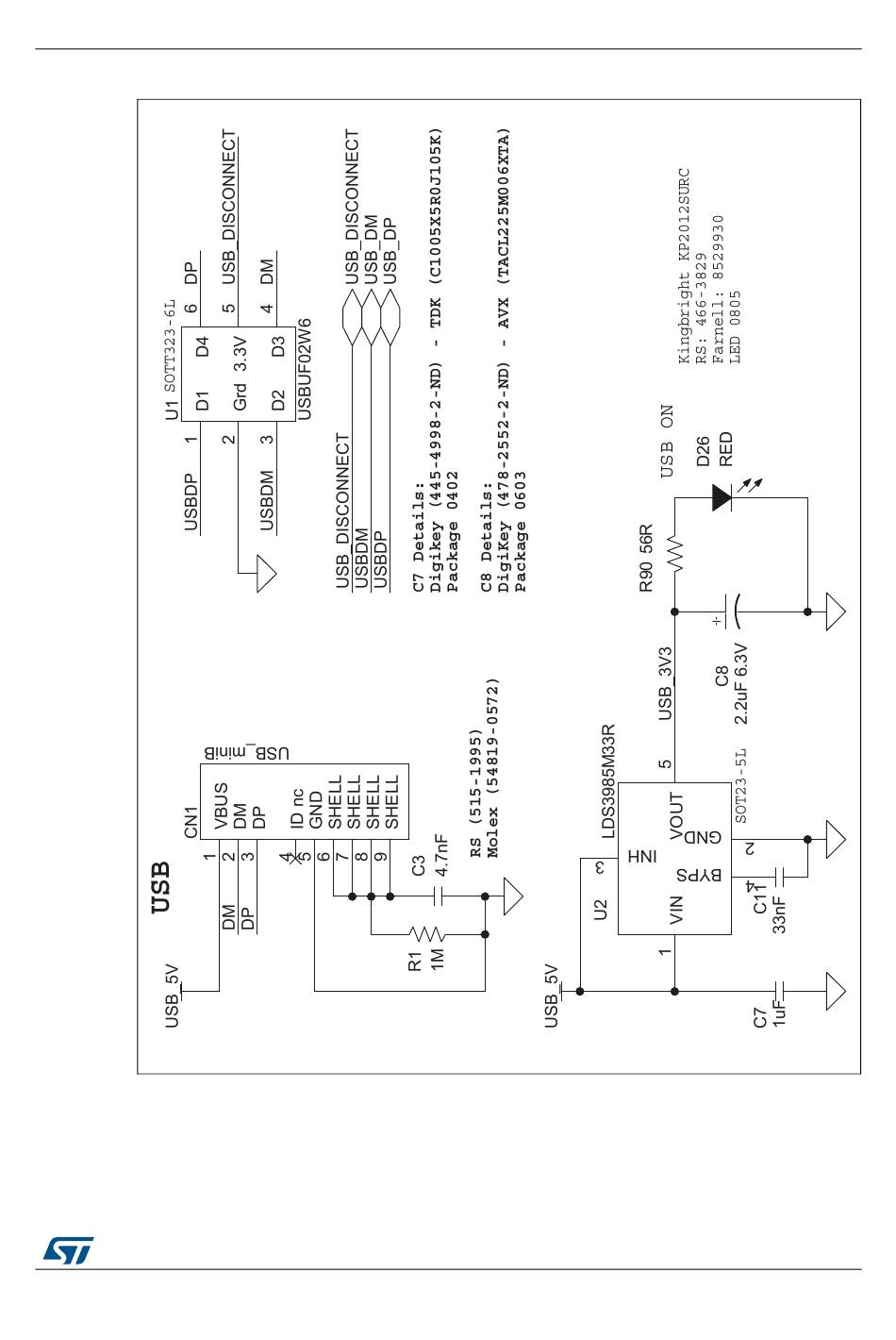

Figure 2. STEVAL-IME008V1 circuit schematic (2 of 16)
GSPG30072014DI1140
DocID026791 Rev 2 3/19
