Accessories - gefran GEFLEX Multifunction Operating Instructions And Warnings

KIT WINSTRUM
GFX-OP
FUSES
MODULES
Note: See the Geflex catalog for more accessories.

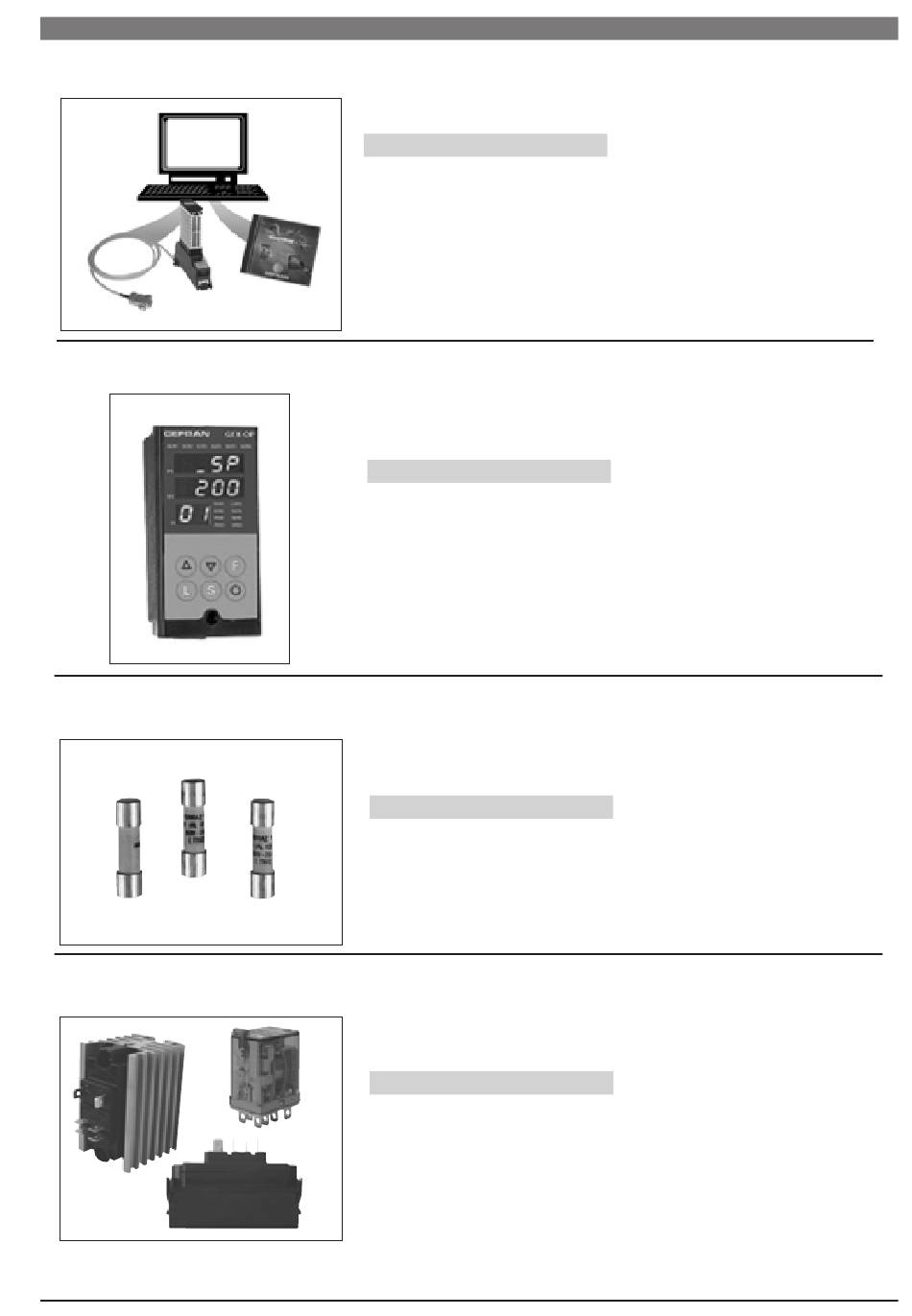

6.1 Accessories

Software for management / configuration of Geflex units.
The main parameters of all Geflex models can be varied with a simple, intuitive interface.
ORDER CODE
Winstrum software on CD, RS232/485 converter complete
with cables to connect the PC and the Geflex . . . . . . . . . . . . . . . . . . . . .WSK - 1 - 1 - 0
Winstrum software on CD, IRDA interface for Geflex . . . . . . . . . . . . . . .WSK - 1 - 2 - 0
[Note: the PC used must be equipped with an IRDA (infrared) interface]
Operator terminal for field configuration of the entire Geflex range
Two types of terminals are available:
- for installation on the Geflex heatsink or on DIN guide
- for installation on the faceplate
ORDER CODE
Programming terminal for Geflex (installation on DIN guide or on heatsink),
complete with connection cable to Geflex (L = 0.2 m) . . . . . . . . . . . . . . . . . . .GFX-OP-D
Note: see cable section for other cable lengths
Programming terminal for Geflex (installation on faceplate) . . . . . . . . . . . . . . .GFX-OP-P
Note: see cable section for connection cable
Kit consists of:
power supply, connection cable PC <--> GFX-DP-D (L = 2 m),
power adapter for the Geflex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GFX-OP-K
High-speed fuses for protection.
ORDER CODE
Fuses for Geflex Multifunction with 5A power solid state unit . . . . . . . . . . . . . .FUS-05G
Fuses for Geflex Multifunction with 10A power solid state unit . . . . . . . . . . . . .FUS-10G
Fuses for Geflex Multifunction with 15A power solid state unit . . . . . . . . . . . . .FUS-16G
Series of modules insertable on base
ORDER CODE
5A power solid state unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GTS-L 5/230
10A power solid state unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GTS-L 10/230
15A power solid state unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GTS-L 15/230
Double relay module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GFX-OUT-RR
Double continuous output module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GFX-OUT-CC
Single relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RELÈ
39
