Overall Dimensions And Mounting Dimensions - gefran GEFLEX Multifunction Operating Instructions And Warnings

1) Position each GEFLEX module with the longer side aligned
with the vertical axis of the electrical panel to increase
adequate natural air flow to the heat sink. The minimum
distance from the side walls of the panel must be 20 mm; from
the top and bottom walls, the minimum distance must be
100mm.
2) If a Master (GFX-M2...), install the module at the extreme
left of the space reserved on the electromechanical plate; line
up the Slave (GFX-S2...) or Expansion (GFX-E2...) modules
progressively to the right of the Master, for a maximum of ten
modules in all (see "Connection Examples").
3) The distance between the modules is shown on the attached
drawing. The minimum distances can be used if the actual
current is less than or equal to 75% of the maximum current
shown on the GEFLEX data plate.
4) Attach each GEFLEX module to the electromechanical plate
by means of DIN EN50022 guide or directly with 5MA screws
(see "Dimensions and Cutout").
Base with
Base with "10/15A power solid state unit" module
Base with "Base with Relay" module"

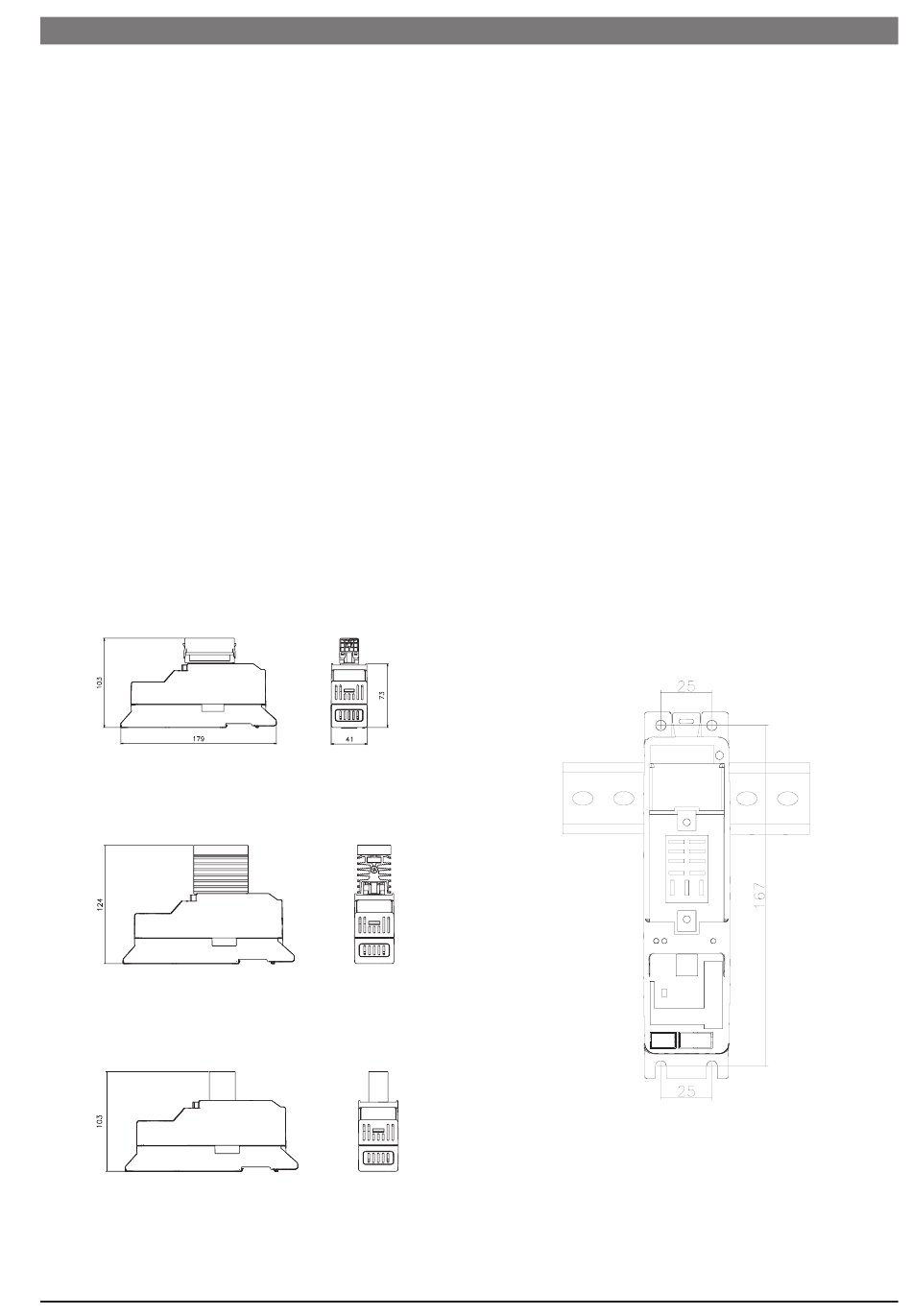

2.1 Overall dimensions and mounting dimensions

"5A solid state power unit" module or
"Double continuous output" or
"Double Relay
5) Remove the screw fastening the wire to the ground terminal,
and then remove the protective cover from the power terminals
by sliding it upward.
6) Wire signal terminal boards "J1" and "J2", connect the
INPUT power terminals to Line, OUTPUT to Load and
COMMON to the return phase of Load (see "Electrical
Connections").
7) Attach the protective cover of the power terminals and
connect the wire to the ground terminal.
8) If the module is a Master (GFX-M2...), wire its connector to
the serial interface see "Electrical Connections").
9) If the module is a Slave (GFX-S2...) or Expansion (GFX-
E2...), attach the flat wire to the corresponding connector "J3"
of the module immediately to the left (see "Connection
Examples").
Base
Mounting on electromechanical plate with quick
coupling to DIN EN50022 guide or with 5mA
screws
25
