5.3.2

Mounting

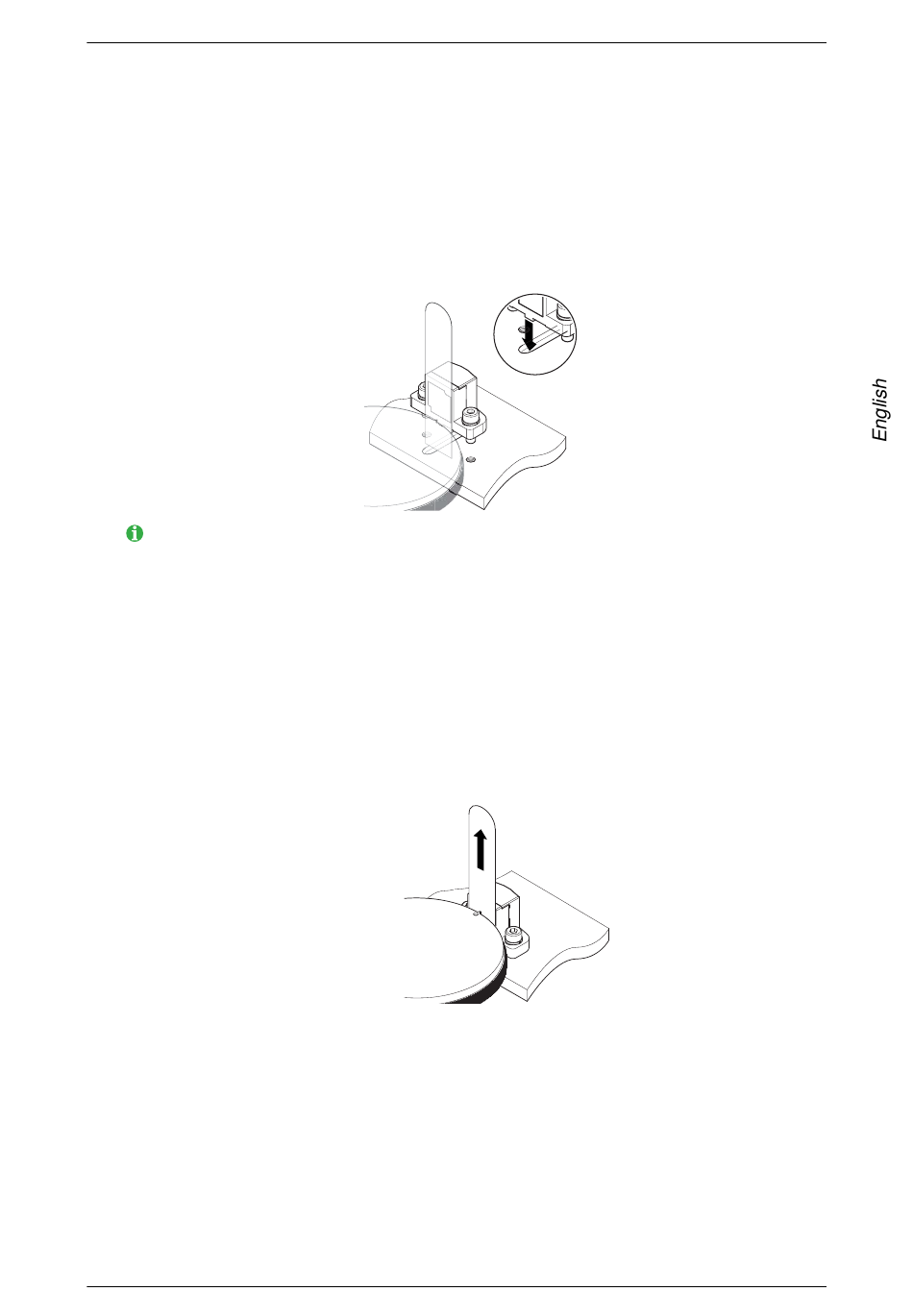

► Remove the MiniCODER and the matching distance gauge from the packaging.
► Wet 2 screws M4 (recommendation: DIN 912 M4×10) with threadlocker to pre-
vent unintentional loosening.
► Fit the screws with spring washers and washers in the slots on the flange.
► Place the distance gauge on the target wheel in the installation space.
Only use the distance gauge supplied as a mounting aid. It will protect the
measuring surface against mechanical damage during assembly and ensure
the correct adjustment of the air gap.
► Fit the two guide lugs on the MiniCODER in the guide slot on the mounting sur-
face and slide it against the distance gauge.
► Fix the MiniCODER by slightly tightening the screws.
► Check again the air gap with the aid of the distance gauge.
► Remove the distance gauge and keep it in a safe place for subsequent removal
or adjustment.
