Lenord + Bauer

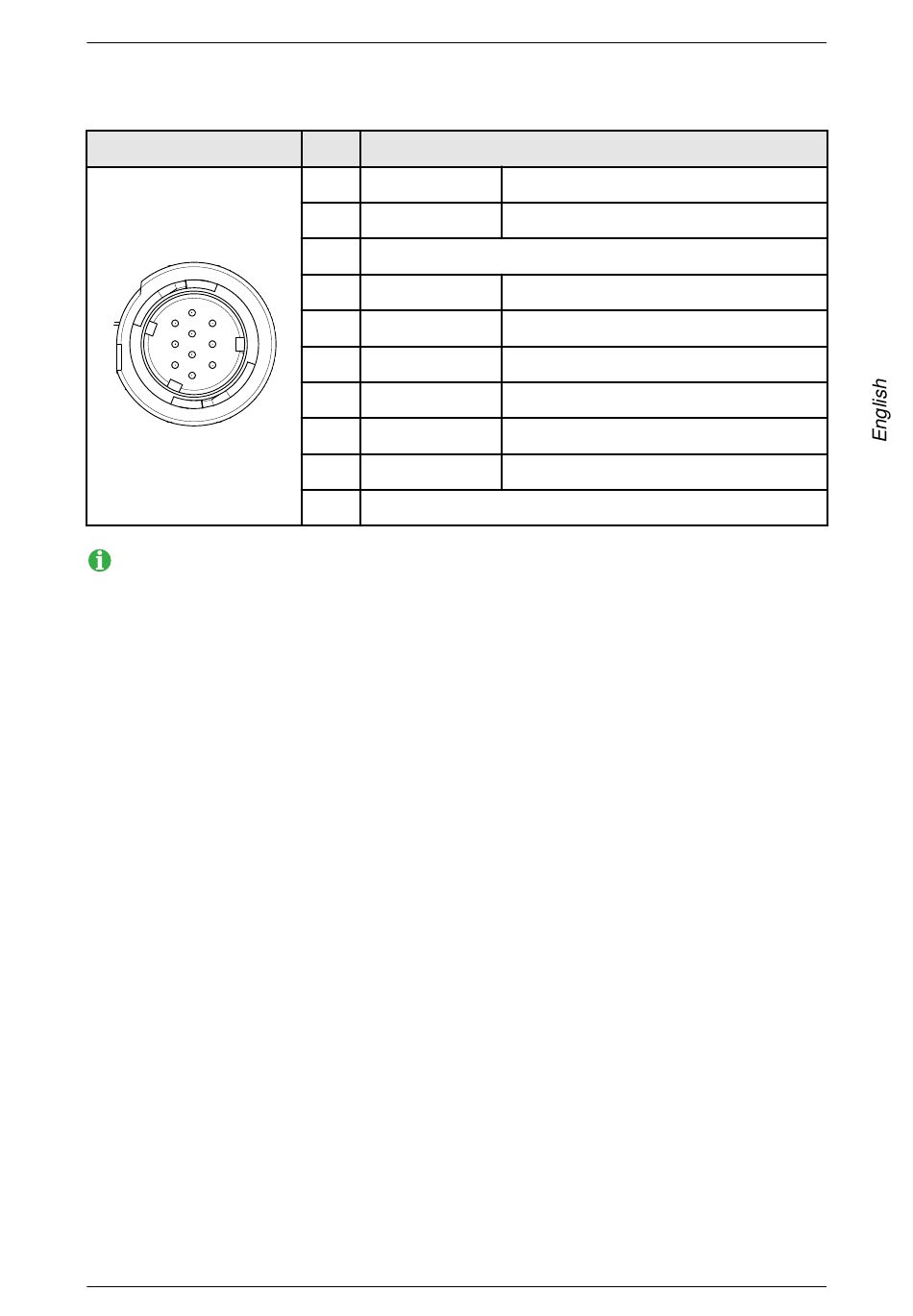

GEL 2444␣␣␣␣␣Z␣␣␣-
10-pin plug
4
8 1
5
2
9
6
10
3
7
Sense regulation not possible!
GEL 2444
Pin Signal / function
1 U
2+
2 U
2–
3 Screen
4 U
B
5 U
1+
6 U
1–
7 0 V
8 U
N+
9 U
N–
10 Not used
Signal track 2
Inverse signal track 2
+ 5 V supply voltage
Signal track 1
Inverse signal track 1
GND
Signal reference track N
Inverse signal reference track N
9 Pin layouts
67
