Assembly

► Ensure the measuring surface does not come into contact with other objects.
► Only touch the connector pins and connection wires if your body is suitably
earthed, for example via an ESD wrist strap, to prevent damage to the electronic
components due to electrostatic discharge.
► After mounting the MiniCODER ensure the air gap between the measuring sur-
face and measuring scale is within the permissible range to ensure correct
function.
► Only remove the MiniCODER from the foam packaging immediately prior to

mounting.

► GEL 2440: Check if the target wheel has the number of teeth approved for that
type: 128, 256, 384, or 512.
4.1

Preparations

4.1.1 Mounting
GEL 244x
27
± 0.1
0.01 A

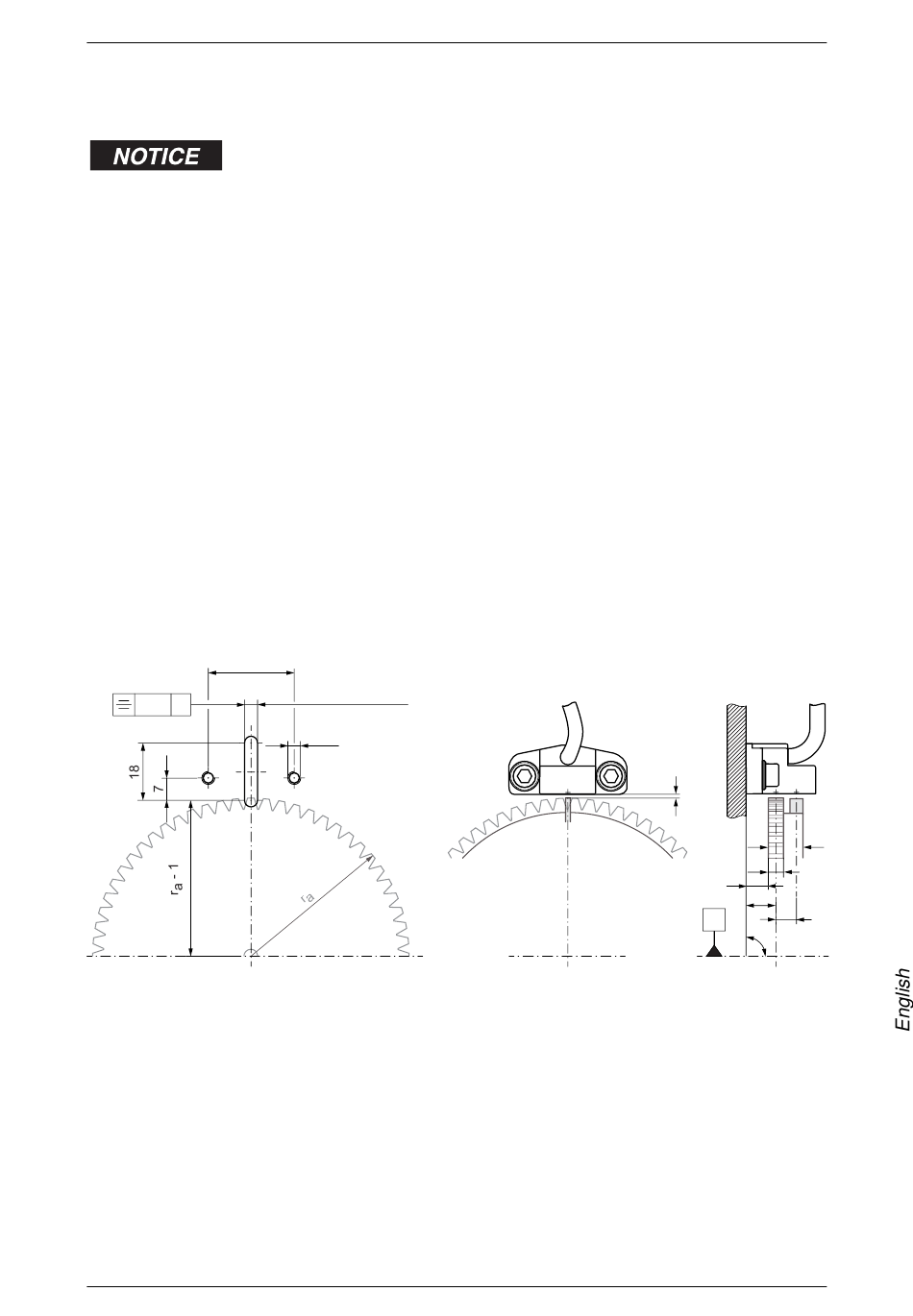

Hole pattern and installation dimensions for GEL 244x
a Width of measuring track on the target wheel: ≥ 4 mm
b Installation surface – target wheel distance: dependent on the design of the target wheel
(GEL 2443/2444: almost 7.5 mm, GEL 2440: 6 mm)
d Air gap: see following table
g Width of the target wheel
m Installation surface – measuring track distance: 9.5 mm ± 0.5 mm
n Measuring track – reference track distance: 6 mm
GEL 2432 / 244x
Preparations
4 H7 (2 tief/deep)
M 4
4 Assembly
d
g
a
b
m
n
A
90°
± 5.7ʹ
