5 Mounting and connection
5.3.3

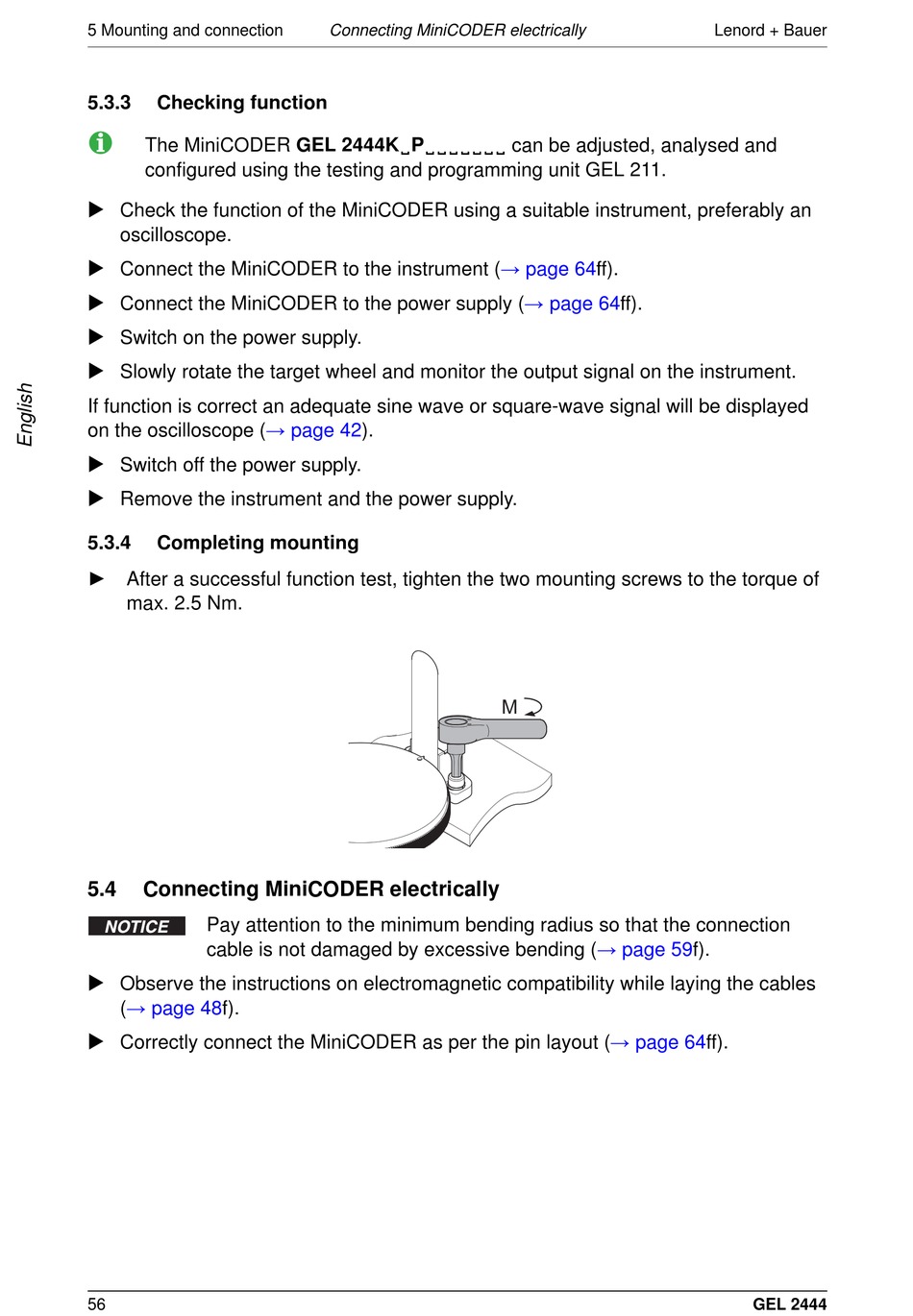

Checking function
The MiniCODER GEL 2444K␣P␣␣␣␣␣␣␣ can be adjusted, analysed and
configured using the testing and programming unit GEL 211.
Check the function of the MiniCODER using a suitable instrument, preferably an
oscilloscope.
Connect the MiniCODER to the instrument
Connect the MiniCODER to the power supply
Switch on the power supply.
Slowly rotate the target wheel and monitor the output signal on the instrument.
If function is correct an adequate sine wave or square-wave signal will be displayed
on the oscilloscope
(→ page
Switch off the power supply.
Remove the instrument and the power supply.
5.3.4
Completing mounting
► After a successful function test, tighten the two mounting screws to the torque of
max. 2.5 Nm.
5.4
Connecting MiniCODER electrically
Pay attention to the minimum bending radius so that the connection
cable is not damaged by excessive bending
Observe the instructions on electromagnetic compatibility while laying the cables
(→ page
48f).
Correctly connect the MiniCODER as per the pin layout
56
Connecting MiniCODER electrically
(→ page
42).
64ff).
(→ page
64ff).
M
(→ page
59f).
(→ page
Lenord + Bauer
64ff).
GEL 2444
