Lenord + Bauer
3

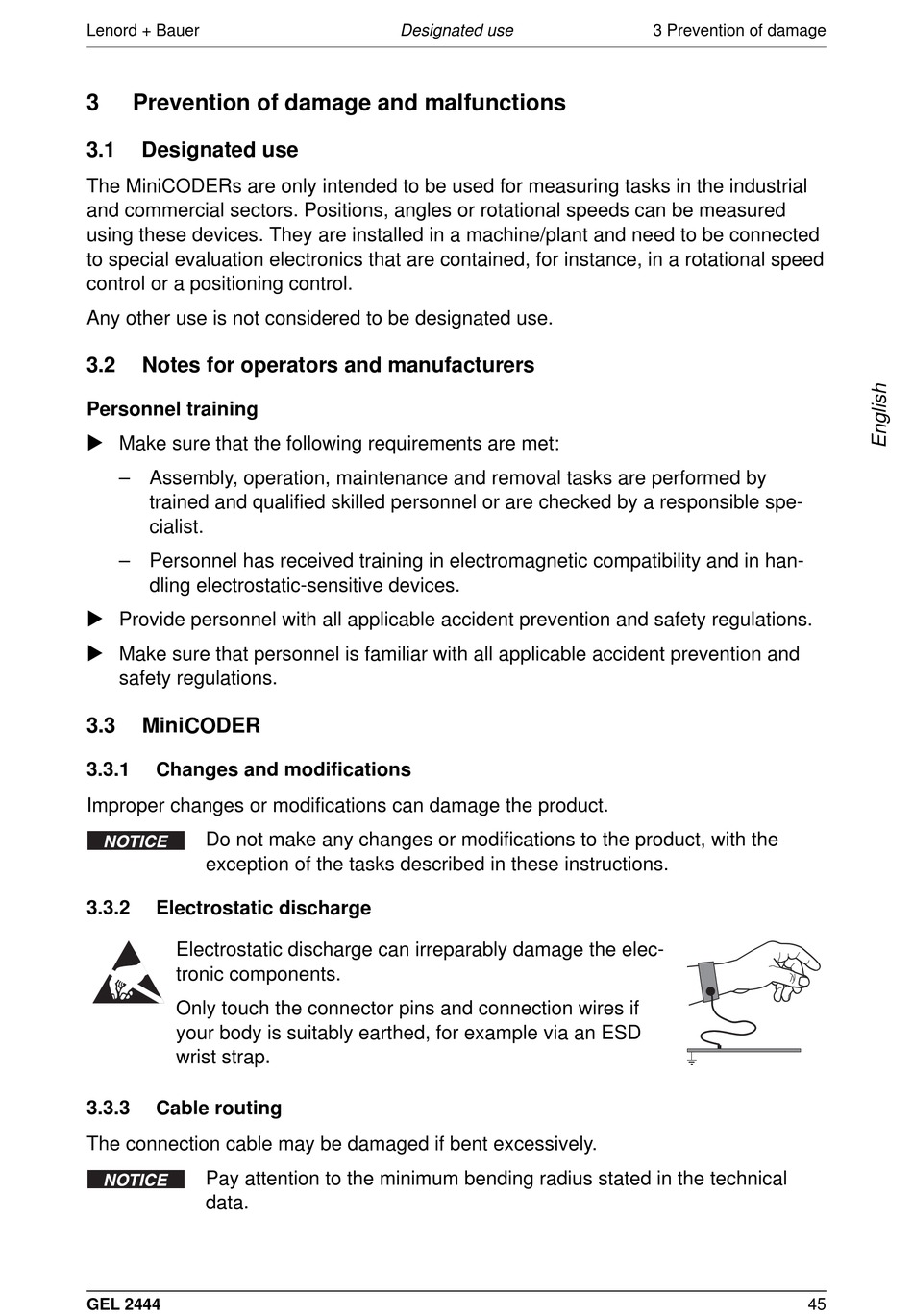

Prevention of damage and malfunctions

3.1

Designated use

The MiniCODERs are only intended to be used for measuring tasks in the industrial
and commercial sectors. Positions, angles or rotational speeds can be measured
using these devices. They are installed in a machine/plant and need to be connected
to special evaluation electronics that are contained, for instance, in a rotational speed
control or a positioning control.
Any other use is not considered to be designated use.
3.2

Notes for operators and manufacturers

Personnel training
 Make sure that the following requirements are met:
– Assembly, operation, maintenance and removal tasks are performed by
trained and qualified skilled personnel or are checked by a responsible spe-
cialist.
– Personnel has received training in electromagnetic compatibility and in han-
dling electrostatic-sensitive devices.
 Provide personnel with all applicable accident prevention and safety regulations.
 Make sure that personnel is familiar with all applicable accident prevention and
safety regulations.
3.3

MiniCODER

3.3.1

Changes and modifications

Improper changes or modifications can damage the product.
Do not make any changes or modifications to the product, with the
exception of the tasks described in these instructions.
3.3.2

Electrostatic discharge

Electrostatic discharge can irreparably damage the elec-
tronic components.
Only touch the connector pins and connection wires if
your body is suitably earthed, for example via an ESD
wrist strap.
3.3.3

Cable routing

The connection cable may be damaged if bent excessively.
Pay attention to the minimum bending radius stated in the technical
data.
GEL 2444
Designated use 3 Prevention of damage
45
