Lenord + Bauer
GEL 2444␣␣␣␣␣M␣␣␣-, GEL 2444␣␣␣␣␣N␣␣␣-

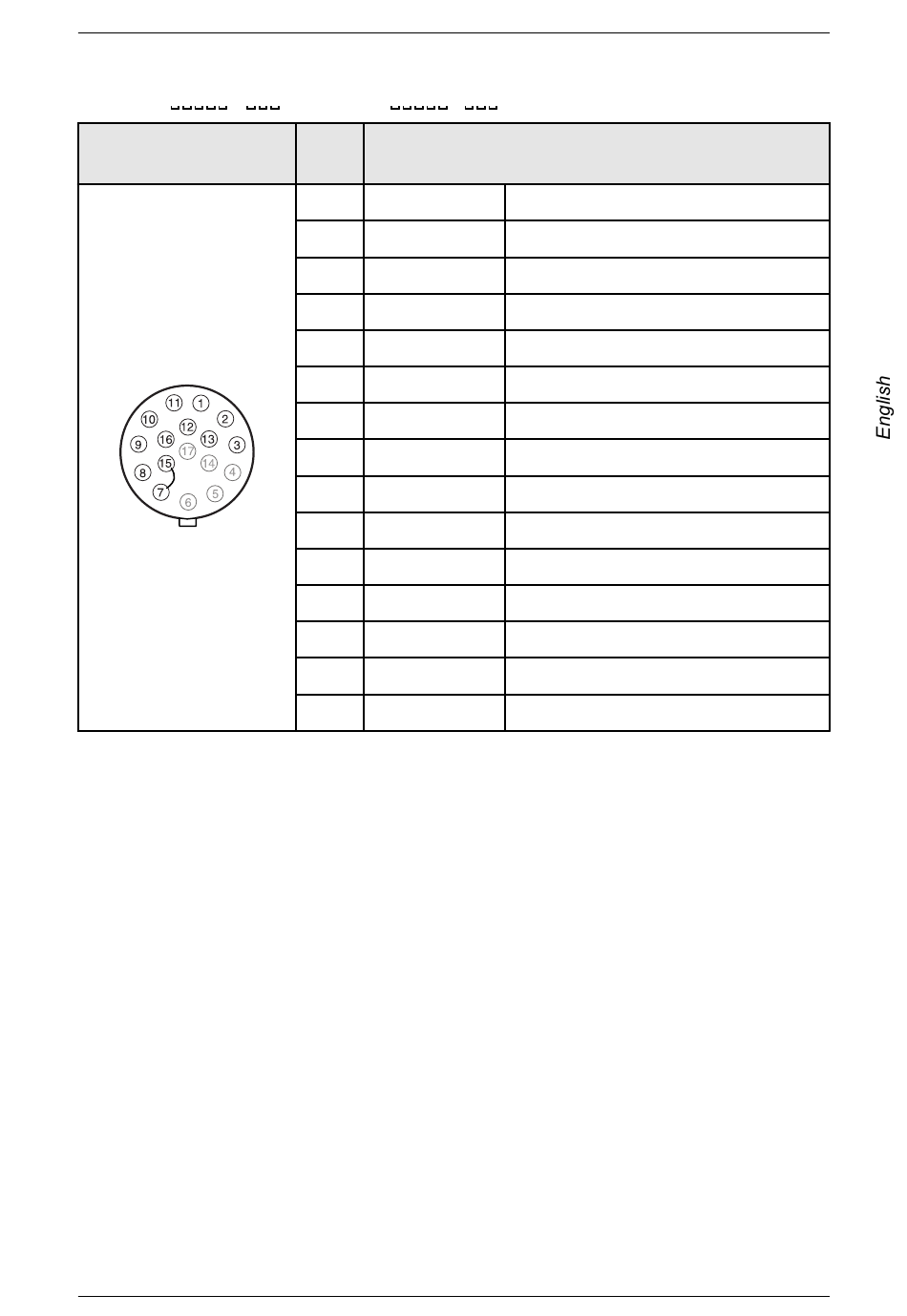

17-pin panel-mount-
ing socket
GEL 2444
Pin Signal / function
1 U
1+
2 U
1–
3 U
N+
4 – 6 Not used
7 0 V
8 Not used
9 Not used
10 U
B
11 U
2+
12 U
2–
13 U
N–
14 Not used
15 0 V
16 U
Sense
17 Not used
Signal track 1
Inverse signal track 1
Signal reference track N
GND
+ 5 V supply voltage
Signal track 2
Inverse signal track 2
Inverse signal reference track N
GND (jumper pin 7)
5 V Sense
9 Pin layouts
