2 Description
2.2

Components and function

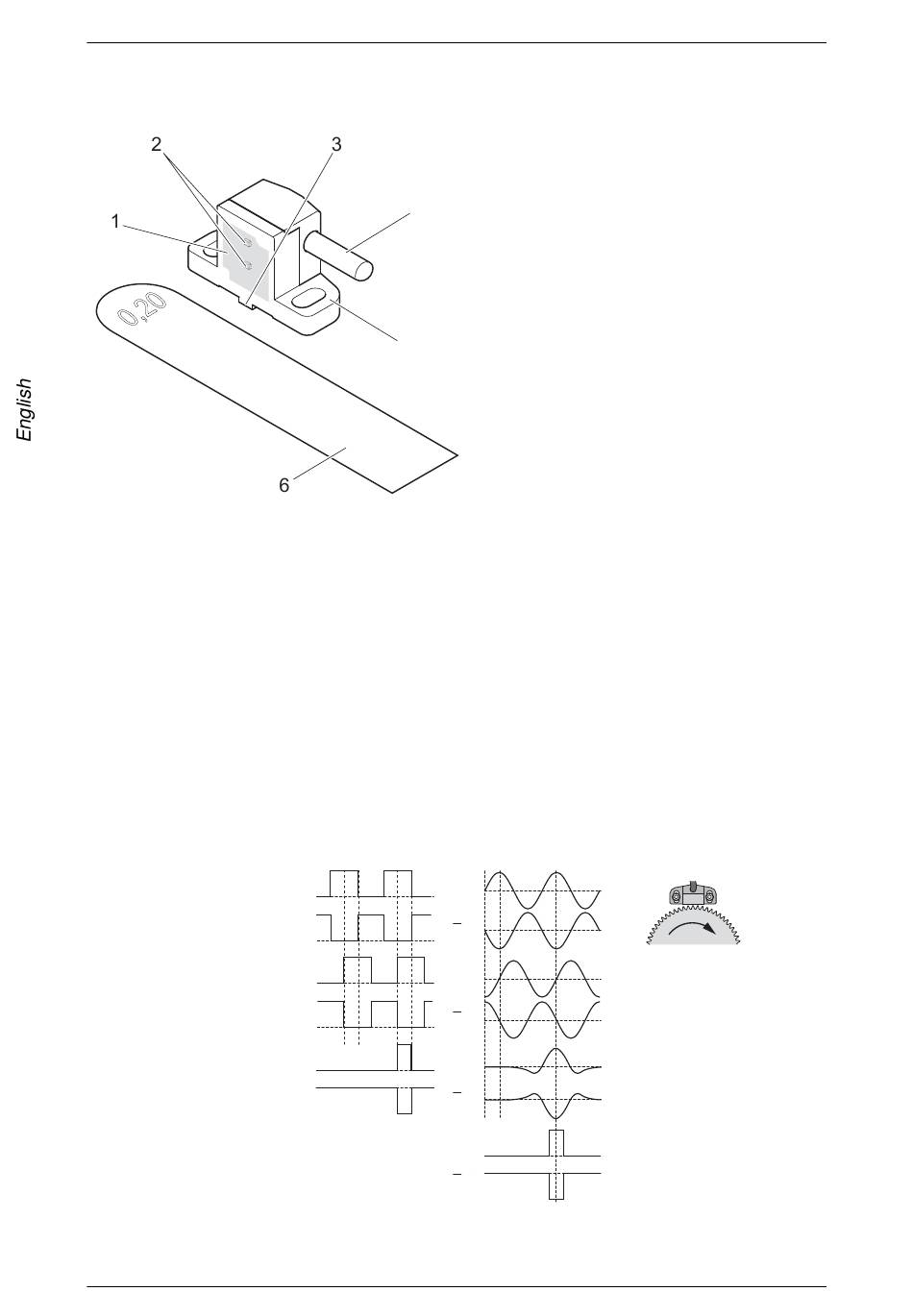

Example illustration for GEL 2444
The MiniCODER is fastened to the mounting via the mounting flange (5) using two
screws. The exact positioning of the MiniCODER is ensured with the aid of the two
guide lugs (3) on the rear of the MiniCODER. For straightforward mounting, a non-
ferromagnetic distance gauge (6) of suitable thickness is included in the scope of
supply (thickness is dependent on the module).
The sensitive sensor elements (2) are under the measuring surface (1).
The integrated electronics are supplied with power via the connection cable (4).
The MiniCODER has a magnetic field that is changed by the rotating target wheel.
The sensor acquires the change in the magnetic field and the integrated electronics
convert this information into appropriate output signals.
Direction-dependent waveforms
42
Components and function
4
5
GEL 2444D / GEL 2444T
1
1
2
2
N
N
N
N
1 Measuring surface
2 Sensor elements
(bottom: signal track,
top: reference track)
3 Guide lug
4 Connection cable
5 Mounting flange
6 Distance gauge
(e.g. 0.2 mm)
GEL 2444K
Lenord + Bauer
GEL 2444
