MAG-EXT

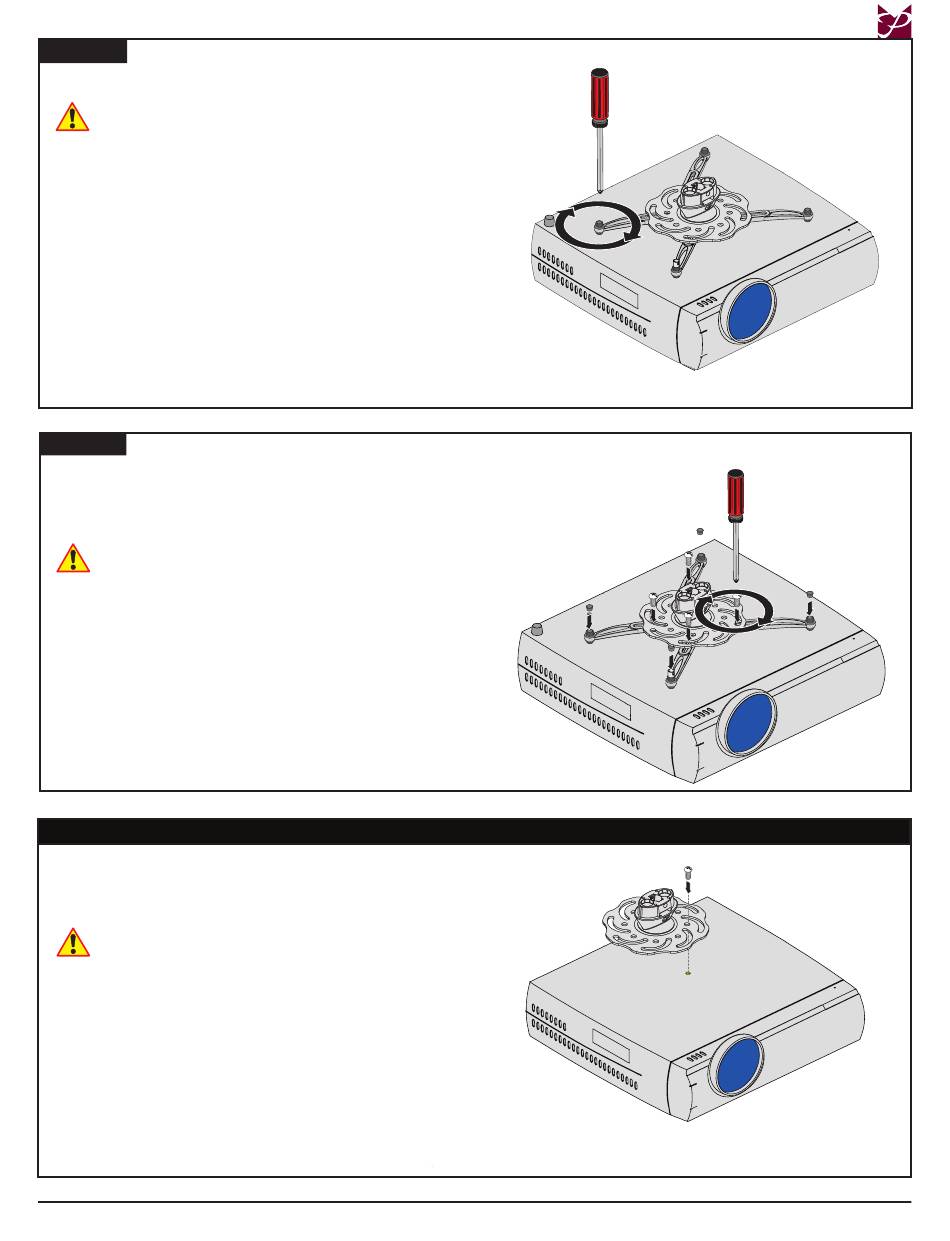

Step 6
Tighten the mounting screws which secures the
mounting legs to the projector.
Do not overtighten the mounting screws.
Step 7
Attach the Projector Plate to each of the mounting
legs by inserting and tightening one (1) M6 x 12mm
screw through the Projector Plate into the M6 square
nut on each of the mounting legs.
Do not overtighten the M6 x 12mm screws.
®
Insert one (1) Barrel Cap into the end of each leveling
barrel.
Single Mounting Point Installation
A single ¼-20 x
screw must be used to attach the
/
"
5
16
Projector Plate to the projector if your projector has only
one mounting point.
Do not overtighten the ¼-20 x
Proceed to the "Installating the MAG-EXT Mount"
section.
Installation Instructions
screw.
/
"
5
16
Visit the Premier Mounts website at http://www.mounts.com
Page 9
