Summary of Contents for Premier Mounts PSM-442T

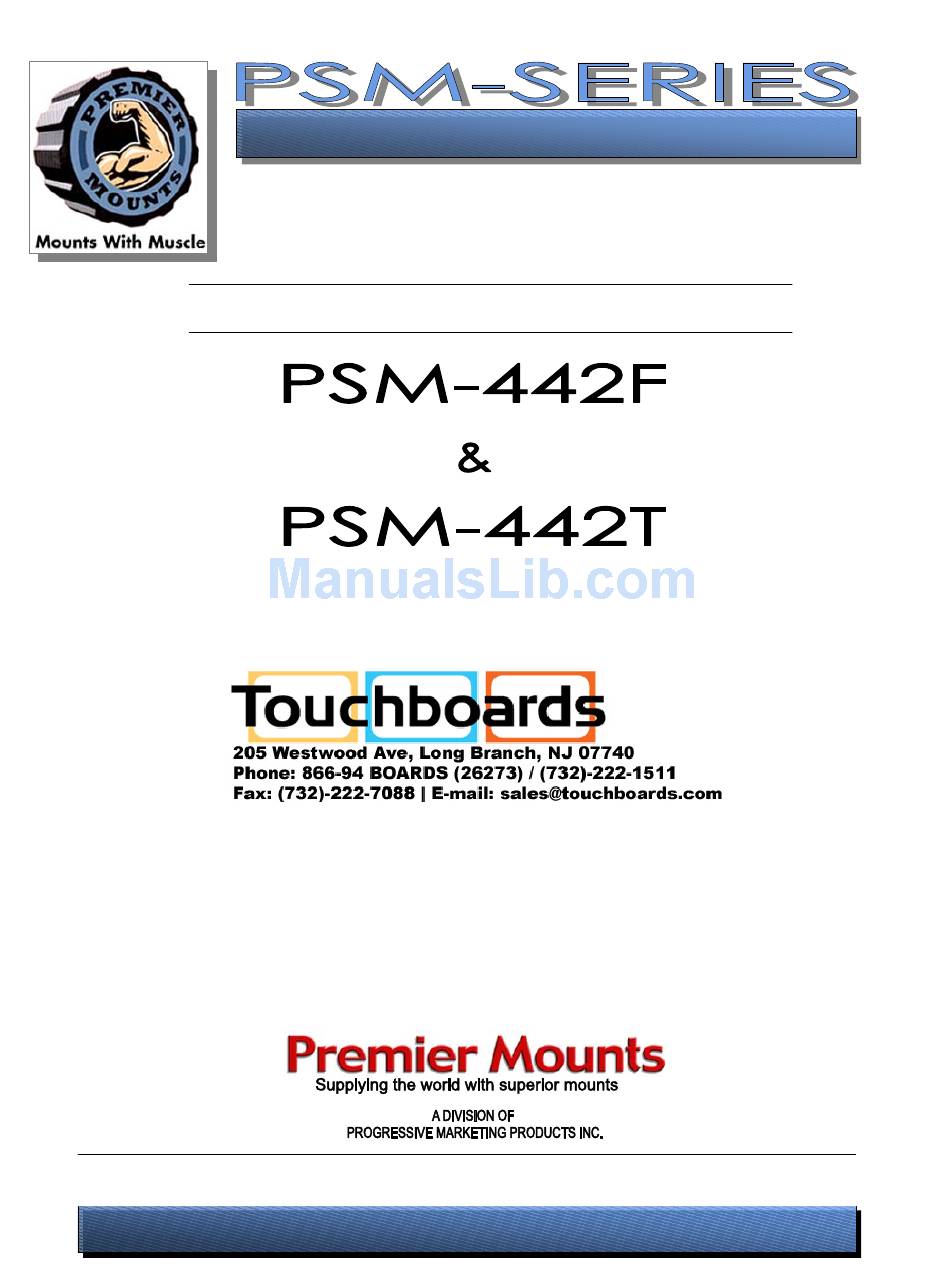

- Page 1 INSTALLATION MANUAL PLASMA DISPLAY MOUNT MODEL 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 VISIT US AT WWW.MOUNTS.COM...
-
Page 2: Table Of Contents
For installations other than wall mounting please refer to page 6. If installing the plasma display to the ceiling or floor stand please refer to its installation instructions. Ceiling structure assembly drawing (pg 6) Thank you for choosing PREMIER MOUNTS for your installation needs. If you have any questions please contact PREMIER MOUNTS Information is shown on the front of this page. -
Page 3: Safety And Precautions
At least two qualified people should always perform the installation work. Injury and damage can result from dropping or mishandling the plasma television. Mounting structure recommended wood studs, solid-flat concrete, and reinforced metal studs. If installing the mount on other than wood studs use (commercially available) suitable hardware. Contact Premier Mounts for any questions... -
Page 4: Mount Diagrams
Mount Diagrams Our PSM flat / tilt mounts are designed for wall or ceiling mounting, or it can mate with any of our popular carts, floor stands or wall arms. The ultra slim plasma mount stands off the wall just enough for proper, OEM-specified ventilation, yet keeps the plasma close enough for a clean, seamless look. -
Page 5: Parts List
Parts List 6 (Tilt) – 4 (Flat) PSM-Mount PSM-313 PSM-375 PSM-401 PSM-402 PSM-410 PSM-421 PSM-423 PSM-424 PSM-425 PSM-426 PSM-427 PSM-428 PSM-432 4 – 4 PSM-460 PSM-478 4 – 2 PSM-499 PSM-500 PSM-501 PSM-502 • PSM-532 PSM-540 PSM-542 PSM-550 PSM-570 PSM-610 PSM-615 PSM-783 PSM-442... - Page 6 (Optional) ceiling adapters AST-2446: 1½" (Adjustable height suspension adapter) - Offering height adjustment in 1¼" increments, between 24" and 46" (12" - 24", if you cut down), this suspension adapter mates with the single display swivel adapter and 1½" (NTP) pipe. AST-2446/2: 2"...
-
Page 7: Installing The Mounting Bracket
Installing the mounting bracket WARNING Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the plasma display. Step 1 CAUTION : The plasma displays are fragile and heavy. -
Page 8: Installing The Mount
Installing the mounts Step 3 Securing the flat mount CAUTION: The plasma displays are fragile and heavy. At least two (2) qualified personnel are strongly recommended for the installation of this product. All plasma models vary depending on the manufacturer and some are centered and others are not. Please verify that your plasma mounting points from the back of the chassis are centered before installing the universal back plate. -
Page 9: Electrical
Securing the flat mount or tilt mount To determine the desired viewing height, use the center slot opening in the wall mount as a center reference for the plasma television when mounted. Once the height is determined, use the bubble level to insure that the bracket is level. Next, using a pencil, mark the four (4) lag bolt slot openings on the mounting bracket. Before continuing, confirm the marks are located on the center of the studs. -
Page 10: Securing The Mount
Securing the mount Step 5 Warning: The plasma display is heavy and 2 people are needed to lift and install it. Failure to do so could result in serious personal injury. Before placing the plasma on the wall recheck all hardware for proper tightness and security. Before installing, become familiar with the way the plasma mount attaches to the wall mount. -
Page 11: Hardware Notice
HARDWARE NOTICE PANASONIC MODELS PACK 2 USED ON THE FOLLOWING MODELS 42" TH42PWD4UY, TH42PWD4EX, PT42P1, 42PD2, TH42PWD3U, TH42PHD5U, PT42PD4, PT42PHD4P, TH42PWD5UY, TH42PW5UZ, TH42PWD6UY 50" TH50PHD3U, PT50PD3P, TH50PHD3E, TH50PHW3, TH50PD4, TH50PHD5UY, 50PHW5UZ If you have any questions contact PACK 28 USED ON THE FOLLOWING MODELS 42"... -
Page 12: N E W H A R D W A R E
NEW HARDWARE APPLIES TO N E W H A R D W A R E NOTICE APPLIES TO PCM (REV 8) PLASMA MODELS: CTM (REV 8) / PSM / PRM MOUNTS. Fujitsu 50" & 61" 5001, 5002, PDS6101, PDS6001, PDS6002,P50XCA11UH P50XCA10WH, P50XCA10HA P50XCA10UH,P50XCA11WH P50XCA11AH, P50XCA12WH...
