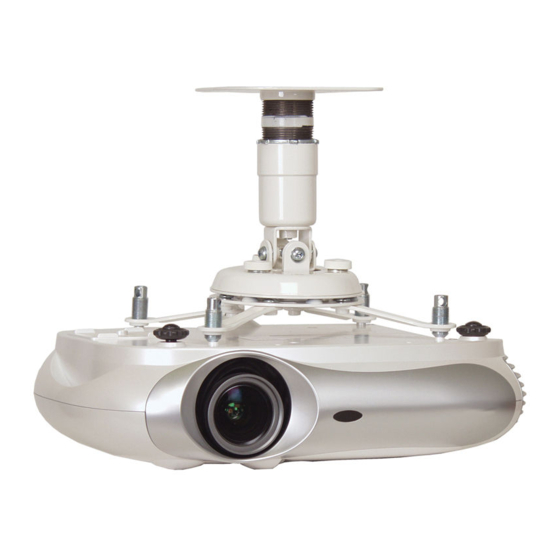

PBC-UM SERIES
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d'Installation, Installatie gids
PBC-UMW (White)
PBC-UMS (Black)
www.mounts.com | North America 800.368.9700 | International +1-714-632-7100
1321 S. State College Blvd., Fullerton, CA 92831 USA
Advertisement
Table of Contents
Related Manuals for Premier Mounts PBC-UM Series
Summary of Contents for Premier Mounts PBC-UM Series
- Page 1 PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids PBC-UMW (White) PBC-UMS (Black) www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
-
Page 2: Weight Limit
Weight Limit 60 lbs. Maximum Weight: Warning Statements THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING 60 LBS. IF NOT, THE CEILING MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE IS A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH. -
Page 3: Included Components
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Included components M2.5 x 10mm M3 x 12mm M4 x 12mm M5 x 12mm 5/8 Barrel Cap M6 x 12mm Green Level M5 Security M3 Security #14 x 2"... -
Page 4: Projector Preparation
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Projector Preparation Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the projector. - Page 5 PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Step 3. Separate the upper assembly from the projector mounting bracket by slightly loosening the two tension knurl knobs to create free play between the bracket tri-lock assembly and the upper section tri-lock assembly points (Figure 2A and 2B).
-
Page 6: Bracket Installation
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Bracket Installation Only attach to the projector manufacturer's specified mounting points on the projector chassis with a minimum of three mounting legs. Please follow all safety instructions specified by the projector manufacturer as well as the safety instructions outlined in this manual. -
Page 7: Leveling The Mounting Bracket
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Leveling the Mounting Bracket Secure but do not over tighten the mounting hardware. Failure to do so will result in damaging the threads in the projector. -
Page 8: Securing The Upper Assembly Ceiling Plate
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Securing the Upper Assembly Ceiling Plate Step 1 Minimum of 2 X 4 wood stud to be used Minimum de 2 X 4 bois goujon pour être utilisé... - Page 9 PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Step 3 Drill a “pilot hole” in the center using a 1/8” drill bit and power drill. Only use a 1/8” drill bit when drilling the pilot holes.
-
Page 10: Securing The Projector To The Upper Assembly
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Securing the Projector to the Upper Assembly Step 1. Make sure the three-knurl knobs are loosened to fully expose to the "tri-lock" mounting plate in the base of the upper assembly. -
Page 11: Final Adjustments
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Final Adjustments Step 1. With the projector secured in the mount and power on and signal supplied to the projector you can now proceed with the final height, tilt, roll and yaw to optimize the projected image. -
Page 12: Plastic Cap Installation
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Plastic Cap Installation Step 1. Once all the final adjustments have been finished, install the plastic caps on the leveling barrels (Figure 8). Figure 8. Plastic Cap Installation... -
Page 13: Technical Specifications
PBC-UM SERIES Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Technical Specifications All measurements are in inches (mm). Security 1.5” (NPT) Nipple Figure 9. Technical Dimensions www.mounts.com | North America 800.368.9700 | International +1-714-632-7100... - Page 14 Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
