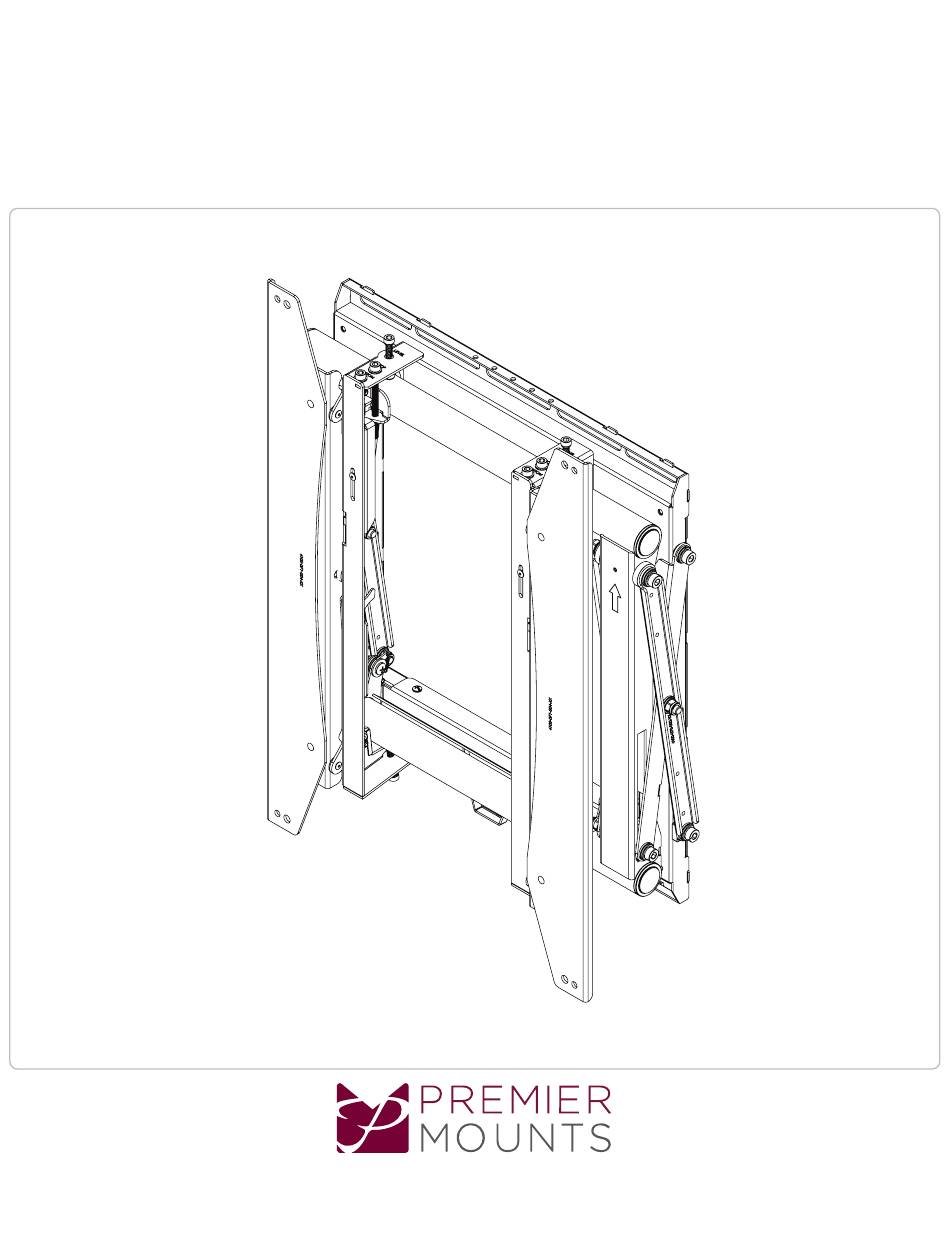

Page 1: Installation Guide

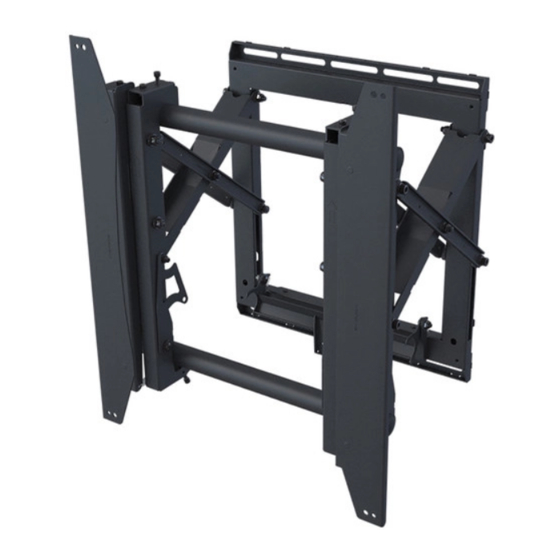

LMVP Installation Guide Press and Release ™ Pop Out Mount www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 2620 Palisades Drive, Corona, CA 92882... -
Page 2: Included Components
LMVP Installation Guide Maximum Flat Panel Weight: Included Components 160 lb. / 72.57 kg. Wall Mount Bracket Extension Brackets (Qty 1) (Qty 1 Pair) (Qty 2) 5/16” Flat Washers Universal Spacers M5 Allen Driver Thread Depth Indicator Universal Washers (Qty 4) (Qty 8) (Qty 1) (Qty 1) -
Page 3: Wood Stud Installation
LMVP Installation Guide Wood Stud Installation Use a pencil to mark the upper right mounting location 1. Use a stud finder to determine the wall studs in of the wall stud. the vicinity of the mount. 2. Use a pencil to mark each of the wall studs. 1. - Page 4 LMVP Installation Guide 1. Level the mount Drill a pilot hole in each of the three (3) marks with a 2. Use a pencil to mark the remaining three (3) power drill and a M6 or 1/4” drill bit. mounting locations 1.
-
Page 5: Concrete Wall Installation
LMVP Installation Guide Concrete Wall Installation Two people recommended for this step; one person Drill a pilot hole in each of the four (4) mark areas to level the mount and another person to mark the with a 3/8” masonry drill bit. mounting locations. -
Page 6: Installing Optional Model Specific Spacers
LMVP Installation Guide Installing OPTIONAL Model Specific Spacers Level For ease of installation Mount the LMVP to the desired location. Model-specific spacers are availible for most flat-panel Align and Level the spacer to the corner register tabs displays. Engineered with the intent of significantly reducing of the mount. -
Page 7: Selecting The Mounting Hardware
LMVP Installation Guide Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the back of the flat-panel. Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. Mark the straw or toothpick 1/8”... -
Page 8: Universal Washer Installation
LMVP Installation Guide Universal Washer Installation Universal Washers are designed to accommodate the various M4, M5, M6 and M8 hole sizes required by flat-panels. Place the flat-panel screen-side down on a soft, flat surface. M5, M6 Identify the number and location of the thread inserts on the back of the flat-panel. -
Page 9: Attaching The Flat-Panel To The Mount
LMVP Installation Guide Attaching the Flat-Panel to the Mount Place your flat-panel screen-side down on a soft, flat surface. Identify the number and location of the thread inserts on the back of your flat-panel. Aligning the holes on each mounting bracket with the thread inserts on the back of your flat-panel. -
Page 10: Locking Safety Screw Installation
LMVP Installation Guide Attaching the Flat-Panel to the Mount Mounting bracket adjustments are factory pre-set (see Note). This section requires two people. Do not release the flat-panel prematurely. The top and bottom hooks of both mounting brackets must be securely seated on Note: These registers must the upper and lower mounting rails. - Page 11 LMVP Installation Guide MOVE INWARD Left Right Control Control BOTTOM BOTTOM MOVE OUTWARD Left Right Control Control BOTTOM BOTTOM TILT UP Left Right Control Control BOTTOM BOTTOM TILT DOWN Left Right Control Control BOTTOM BOTTOM Page 11 www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105...
- Page 12 LMVP Installation Guide LEVEL UP Left Right Control Control LEVEL LEVEL LEVEL DOWN Left Right Control Control LEVEL LEVEL ROTATE LEFT Left Right Control Control LEVEL LEVEL ROTATE RIGHT Left Right Control Control LEVEL LEVEL Page 12 www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 | Europe +44 (0) 24 7664 4105...
- Page 13 LMVP Installation Guide Use the GAPit GO/No Go Gauge (supplied with model specific spacer) as a final step in the process to inspect and adjust the gap to prevent costly replacement and extend the lifespan of the displays. Damage happens when weight is transferred to the ultra-thin bezels of video wall installations, if the recommended gap specifications of .050”...
- Page 14 LMVP Installation Guide Servicing 1. Push evenly in the front of the LMVP to release the single latch spring lock (Figure 1). 2. Slowly pull the front of the LMVP to extend the scissor arms (Figure 2). 3. Loosen the locking safety screws on both mounting brackets.
-
Page 15: Limited Lifetime Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
