Installing the MAG-EXT Mount

Wood Stud Installation

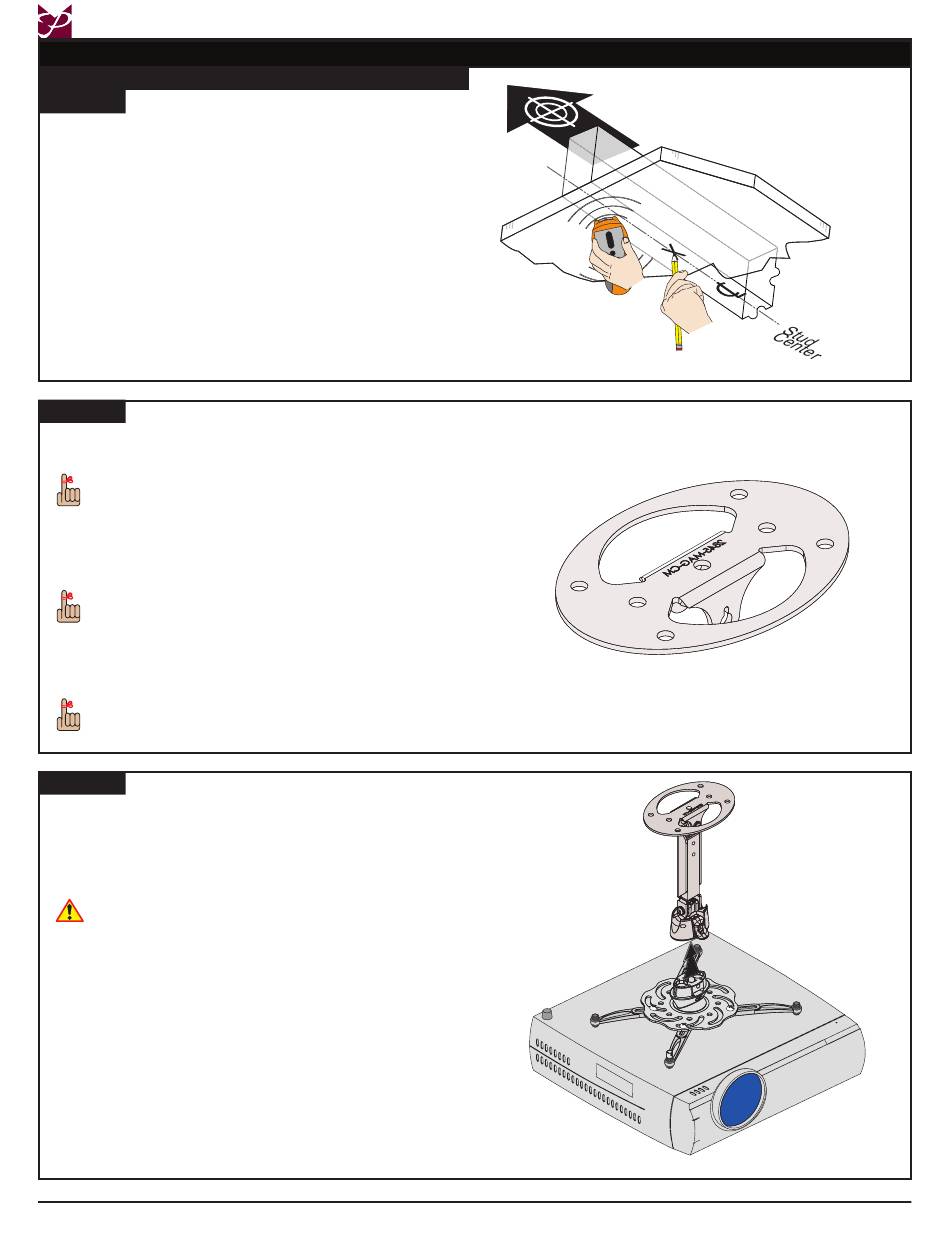

Step 1
­ ­
Use a stud finder to locate a ceiling stud closest to
your desired installation location.
® ­ Identify the center of the ceiling stud.
¯ ­ Use a pencil to mark the location of the ceiling stud
center.
Step 2
­ ­ Use a ⅛˝ drill bit to pre-drill the mounting holes before
securing the wood screws (supplied).
Wood studs: Where denoted with the letter 'A', mark
these locations for wood stud installation.
® ­ Use a masonry bit to pre-drill the mounting holes in
the concrete surface.
Concrete surface: Where denoted with the letter 'B',
mark these locations for concrete installation.
¯ ­
Use two (2) #14 x 2˝ wood screws (supplied) to attach
the ceiling plate to the wooden ceiling stud.
For extra security, attach a third wood screw to the
middle mounting point (A).
Step 3
­ ­ Slowly raise the projector toward the upper assembly.
® ­ Once the projector is close to the upper assembly,
MagnaGuide™ Technology will pull the lower
assembly into the upper assembly and the locking tab
will engage.
THE MAGNETS ARE USED FOR GUIDING THE
UNIT ONLY! PLEASE MAKE SURE THE TWO (2)
M4 X 12MM SCREWS ARE USED TO SECURE
THE PROJECTOR.
Page 10
Visit the Premier Mounts website at http://www.mounts.com
B
A
A
B
Installation Instructions
MAG-EXT
B
B
A
