80949_MAN_eView BOX_05-2019_ENG

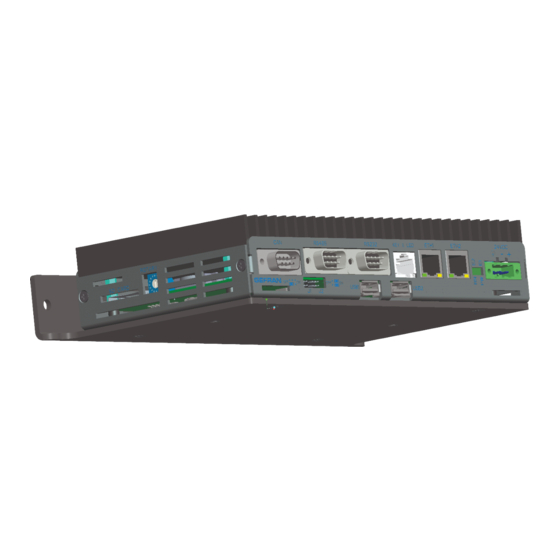

eView BOX
Internal cabinet control panel
INSTALLATION AND INSTRUCTION
MANUAL
code: 80949_05-2019_ENG
ATTENTION!
This manual must always be available to operators of the
devices described here.
Always make sure that you have the latest version
of the manual, which is available for free download from the
GEFRAN website (www.gefran.com).
Installers and/or maintenance personnel are required to
read this manual and to precisely follow the instructions con-
tained in it and in its attachments.
GEFRAN will not be liable for any damage to persons
and/or property, or to the product itself, caused by failure to
follow the instructions and observe the warnings given below.
This manual and its attachments may be freely reproduced
as long as they are not changed in any way and every copy
contains this warning and the declaration of ownership by
Gefran S.p.A.
1
Advertisement
Table of Contents
Related Manuals for gefran eView BOX
Summary of Contents for gefran eView BOX
- Page 1 GEFRAN will not be liable for any damage to persons and/or property, or to the product itself, caused by failure to follow the instructions and observe the warnings given below.
-
Page 2: Revision Documents
REVISION DOCUMENTS DATE CODE UPDATE 05-2019 80949 First emission 80949_MAN_eView BOX_05-2019_ENG... -
Page 3: Table Of Contents
Remote Connection ...........25 Printing conventions used in the manual ......4 Information ..............26 Glossary ................4 Temperature..............27 eView BOX internal cabinet control panel ......5 Resolution ..............28 Panorama of the solution and its functions .......5 MAINTENANCE AND DIAGNOSTICS ......29 Architecture ...............6 WEEE Information ............29 Main power supply ............10... -
Page 4: Preface
Warnings and safety While all the information contained in this manual has been If the eView BOX internal cabinet control panel is used in carefully checked, Gefran S.p.A. accepts no responsibility for applications with the risk of damages to persons, machinery the possible presence of errors or for damage to persons or materials, its use in conjunction with alarms is essential. -
Page 5: Eview Box Internal Cabinet Control Panel
Brief description Internal cabinet control panel Panorama of the solution and its functions The eView BOX internal cabinet control panel lets you display, IEC61131-3 languages and a powerful graphic editor. set, and manage all of the machine or system automation In combination with I/Os, eView BOX completes the data. -
Page 6: Architecture
Architecture Ethernet eView BOX Internal cabinet control panel Ethernet EtherCAT eView LT104 GFX4 Third-party Power Controller Control Panel remote IO Figure 1 - Ethernet - EtherCAT architecture Ethernet eView BOX Internal cabinet control panel Ethernet GILOGIK II remote IO GILOGIK II... - Page 7 Ethernet eView BOX Internal cabinet control panel Ethernet CANopen ADV200 GFXTERMO4 GILOGIK II MK4-C Third-party Drive Controller remote IO position transducer Drive Figure 3 - Ethernet - CAN (CANopen) architecture /TCP Ethernet eView BOX Internal cabinet control panel Ethernet Modbus TCP...
- Page 8 /RTU Ethernet eView BOX Internal cabinet control panel RS485 Modbus RTU GFX4 ADV200 Controller Drive Power Controller Figure 5 - Example of Ethernet - Modbus RTU (RS485) architecture eView BOX Internal cabinet control panel RS232 Balance Printer Printer Barcode USB drive...
- Page 9 Data Exchange Remote Pages File Exchanges Desktop Remote Virtual Network Web browser Modbus TCP Java Tecnology File Transfer Protocol Computing Ethernet Programming Tool eView BOX Internal cabinet control panel On Line Service Figura 7 - Examples of remote services 80949_MAN_eView BOX_05-2019_ENG...
-
Page 10: Main Power Supply
• Ground the power supply (GND) with a wire that is straight and from the plant and machine power cables. as short as possible (PE). • Ground the eView BOX ground terminal and the with a wire that is straight and as short as possible (PE). 80949_MAN_eView BOX_05-2019_ENG... -
Page 11: Programming Tool
Programming tool GF_PROJECT VX Development software that allows the writing of the application program for PLC with IEC1131 languages. Also allows the construction, in graphic mode, of the various pages of the user interface necessary to the application developed. Via GF_PROJECT LX it is possible to connect to the device that will host the application to debug the program and upload the upgrades. -
Page 12: Technical Data
Technical data eView BOX Operating voltage 24 VDC ±25% Current draw 500 mA max (at 24 VDC) Power dissipation 12 W max POWER SUPPLY Protections Polarity inversion Short circuit Connection 3-pin polarized removable connector Screw terminals, max cable section 2.5 mm... - Page 13 BOX Operating temperature 0 ... +55 °C (as per IEC 68-2-14) Storage temperature -20 ... +70 °C (as per IEC 68-2-14) AMBIENT CONDITIONS Relative humidity max 95% RH non condensing (as per IEC 68-2-3) Vibrations 5 to 9 Hz: sine constant 3.5 mm...
-
Page 14: Dimensions And Spaces Required For Installation
Dimensions and spaces required for installation 44.6 Figure 9 - eViewBOX dimensions Figure 10 - Space for ventilation Attention: the temperature in the compartment containing the internal cabinet control panel must never exceed 55°C. The open spaces shown in gray are recommended with static ventilation. These spaces may be reduced with forced ventilation. 80949_MAN_eView BOX_05-2019_ENG... -
Page 15: Order Codes
Order codes eView BOX with Atom 1 GHz, 512 MB RAM, 2 GB flash memory Code Model Number Description communication peripherals F073912 eView BOX-20-E1-00-00 2 x Ethernet (Modbus TCP, GDNet), 2 x USB, 1 x keyboard eKMxx communication peripherals F073914... -
Page 16: Assembly And Installation
ASSEMBLY AND INSTALLATION Assembly Control Panel Hole dimensions Attention: the panel on which the internal For correct installation, observe the dimensions of the cabinet control panel is mounted has to have the following characteristics: templates shown in the illustration. • be sufficiently stiff and strong so that it does not bend during use;... -
Page 17: Fastening
Fastening • Vertical mounting: The internal cabinet control panel can be installed in two ways: Prepare the M5 threaded holes, done with the template as • horizontal on DIN 35 mm track, Fig.12. shown in Fig.11, position the product and screw in place as •... -
Page 18: Control Panel Connections
E2 (red): HW Watchdog status Supplemental Ethernet port RJ45 optional Ethernet port RJ45 KEY & LED RJ45 For GEFRAN Keypad RS232 DB9 M (D-sub 9-pin male) optional RS485 DB9 M (D-sub 9-pin male) optional DB9 M (D-sub 9-pin male) optional... -
Page 19: Power
24 VDC With this RJ45 connector, the port provides a connection for Gefran keyboards. Up to 128 keys and up to 64 LEDs can be managed. Communication uses the USB 2.0 standard. Connection with keyboards is straight point to point. -
Page 20: Usb
RS232 The USB ports let you connect external devices conforming The RS232 port is optional. Considering that the RS232 port to the USB standard. is not insulated, it is necessary to disconnect the power to The connectors are Type A and the ports support the USB the Integrated Controller and internal cabinet control panel 2.0 standards, with speed up to 480 Mbit/s. -
Page 21: Can
Warning: The RS485 port is equipped with internal termination and polarization, as shown in The CAN port is optional. Connect the cable for the CAN the figure below. field bus. The CAN bus is used to connect to the controller devices that conform to the CANopen standard. -
Page 22: Rotary Selector
Rotary selector The rotary selector is used to set the function of the CPU Figure 26 shows the guidelines for installing a CAN network with GEFRAN and/or third-party devices. M A S T E R S L A V E... -
Page 23: Commissioning
Red: the system does not reply. specified on the key and with active VNC server. • Yellow: trying to communicate. Please wait. Connect to eView BOX using a VNC client and complete the • Green: the remote system is active and ready. remote system configuration. -
Page 24: Authentication
Authentication Configuration Here you can set the date and time, change the password, set network parameters, manage remote communications, configure the touchscreen, and configure the SNTP/ NTP Server. Press Home to return to the main menu. The first page requests authentication. The default password for access is gefransetup. -
Page 25: Remote Connection
Network Remote Connection Press the Network button to configure the various network ports. The following page appears: The device supports web and vnc remote communication management. Web and vnc management have to be configured in GF Project VX programming environment; see the Remote The first pull-down menu shows the available network ports Connections paragraph in the GF Project VX manual. -
Page 26: Information
The change will take effect at the next reboot • bootrom.sys shows the bootrom version (system bootloader). • gefran.os shows the terminal BSP version. Attention: This setting is always overwritten when • seven.out shows the active firmware version on the you load a program with GF_ProjectVX. -
Page 27: Temperature
Check version files Temperature Press the Check version files button to activate the check Gives information on the temperatures measured in the of the installed version and of the individual softwares/ eView. components it includes. The following page appears: The lines change from purple to green as the checksum is •... -
Page 28: Resolution
Resolution Attention: despite a local display isn’t present, executing the resolution and display orientation settings is needed in anyway. This lets you change the resolution and orientation of the display so that they conform to the control panel used (eView leaves the factory with horizontal 800 ×... -
Page 29: Maintenance And Diagnostics
MAINTENANCE AND DIAGNOSTICS WEEE Information the separate collection of this piece of equipment at the end of its useful life. Pursuant to Article 26 of Italian Legislative Decree March 2014 Users wishing to dispose of the equipment must therefore “Implementation of Directive 2012/19/EU on contact the manufacturer to obtain instructions from the same on how to have the equipment collected separately at waste electrical and electronic equipment... -
Page 30: Canopen
CANopen Based on the type of error, there is a series of additional information: • Err connecting PDO Tx (S => M): occurs when the Master cannot assign a COBID to a PDO (here, in reception) because it is already reserved by another device in the network. -
Page 31: Ethercat
• Err SDO Input Fail: occurs when SDO dialog between Master node and Slave fails in Read. Attention: Although coded according to a general The list of exchanged CANopen objects is defined on standard, the indication of local errors by the device the “SDO Input”... -
Page 32: Gdnet
• “OPER” Slave in Operational condition (running); • Advanced: go to diagnostics of master • “MISS” Slave ‘lost; Advanced section • “* ” Error condition (in or with preceding) • ID: Unique device identifier (as inserted in HW Click on the Advanced button to access diagnostics of the configurator). -
Page 33: Gilogik Ii
Network status an element from the list. The top bar shows the following information: Selecting an element from the list lets you go to more • GDNet (ETH# ...): the number in parenthesis after ETH# detailed diagnostics (level 2 and 3 or device and card level) with display of a panel dedicated to the selected device. -
Page 34: Ict
2. Slot with non-configured card. 3. Slot not managed. ICT (Industrial Central Terminal) means management of data exchange by the Gefran target to and from remote devices, which may be instruments and/or PLCs of other Flag: shows slot status with colored code. Meanings: manufacturers, via dedicated protocols. - Page 35 • Describes type of protocol: Device section • “M-TCP” Modbus in TCP; • “M-RTU” Modbus in RTU; and additional information: • For TCP IP address; • For RTU type of serial, COM used, baudrate, parity; • node/line: identifies line and node. •...
- Page 36 The bottom zone shows a list of the variables present in that buffer. The following are shown for each variable: 208 - error in CLIENT-ADDRESS field of packet received • Modbus Address. WRONG_CLIENT_ADDRESS_VALUE_ERROR_ • Dimension. MSG_MODBUS_PROTOCOL • DataType. • Variable name 209 - error in COMMAND field of packet received •...
-
Page 37: System
System Click the System button on the bottom tool bar to obtain system information The following information is shown: • Info versions: number of version of Gefran.os, Seven.jar and Seven.out. firmware. • DISK: Flash or SD Card memory • MEM: RAM memory. - Page 38 GEFRAN spa via Sebina, 74 25050 Provaglio d’Iseo (BS) Italy Tel. +39 0309888.1 Fax +39 0309839063 info@gefran.com http://www.gefran.com...
