Service and Maintenance
Note: This function requires performing the steps
rapidly. Make sure you are comfortable with the pro-
cedure before you begin.
Steps to take
1.
Press the "Reset" button. See
2.
Within the space of 2 seconds, push the "Alternate"
button and hold it.
The "Status" LED starts to quickly blink in orange.
After a few seconds, the blinking of the "Status"
LED will slow down.
3.
Let go of the "Alternate" button.
The "Status" LED and the "Power" LED light up in
red and orange for several seconds/minutes du-
ring the restart. See also the table on
If both LEDs light up in green again, the restart is
complete and the PBX is ready for operation.
5
These are persons that are trained for this purpose (e.g. certi-
fied electricians). They must be properly trained for working in
an area with potentially hazardous voltage. Authorised dealers
are made aware of the dangers they are exposed to when car-
rying out this type of work, and are able to reduce the risk to
themselves and others as much possible.
Requirements
– Computer with a connection to the PBX web server
– PC application, D-channel decoder, installed as of
version 2.3.3 Beta
Note: The computer application can be installed from
the Auerswald Mega Disk.
– The IP address for the PBX is known (192.168.0.240
- factory setting).
Note: Remote recording/logging of a D-channel pro-
tocol is also possible. For this purpose, please refer
to Chapter Configuring the PBX remotely via the
external S port (PPP external) on page
0
of logging into the web interface, start the D-channel
protocol. Under "IP address", enter the local IP
address for the PPP configuration on the PBX (http:/
/192.168.193.240 is the factory setting).
Note: For external access from the Internet via a rou-
ter, the D-channel decoder uses port 42225. This
means that within the router configuration, port 42225
must be rerouted to the IP address of the COMpact
5010/5020 VoIP.
54
Abb. 38.
Page 47.

Starting the D-channel protocol

39. Instead
Note: If the "Power""LED remains continuously lit in
red, an error has occurred. Please contact your dea-
ler or the manufacturer directly.
Further steps
Check the firmware version.
Note: If the old configuration is still present, you have
held the "Alternate" button too long and must there-
fore repeat the procedure.

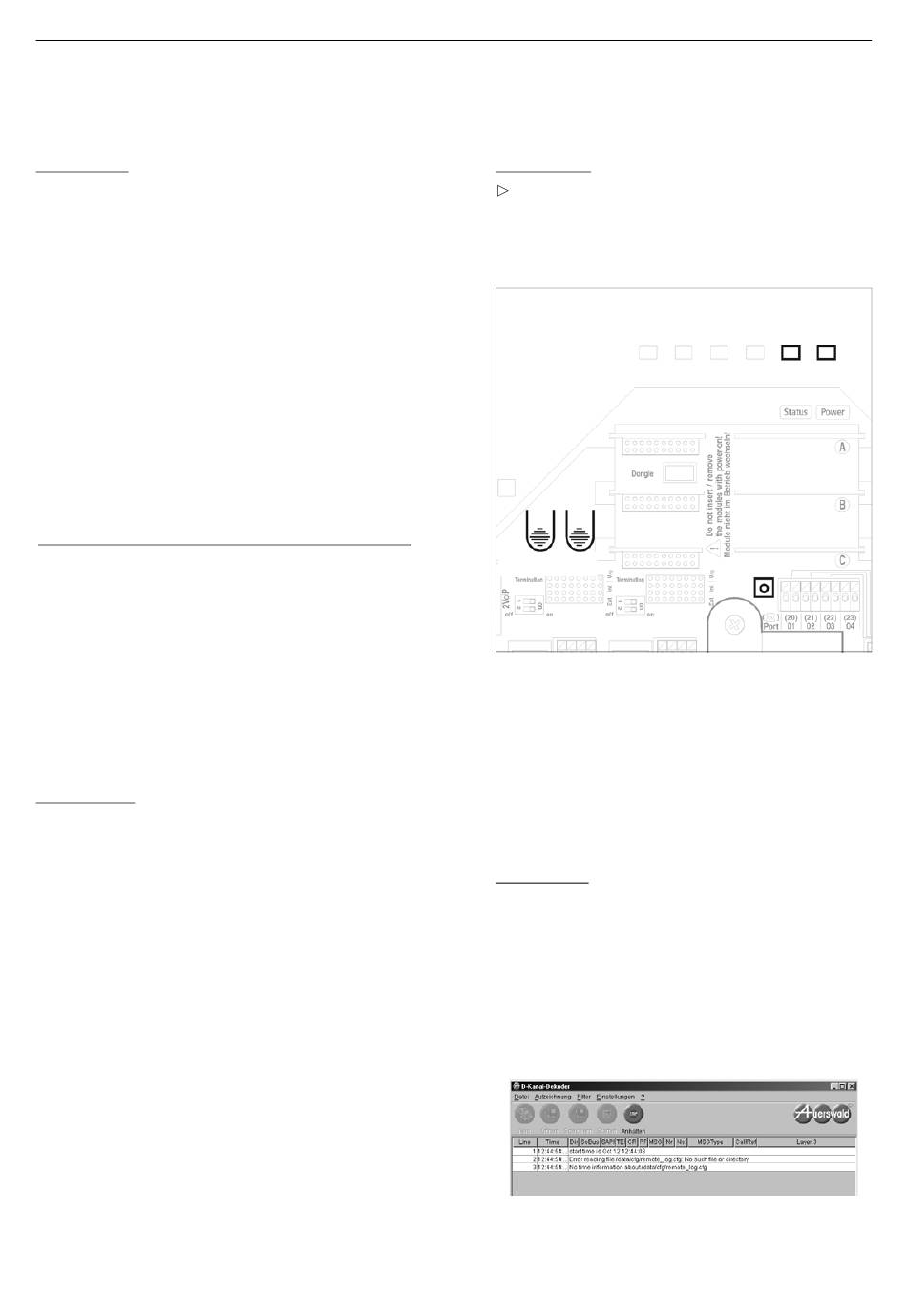

Abb. 38: LEDs and buttons
Alternate
Note: When entering the IP address in the "Schnitt-
stellenauswahl" dialogue, it is possible that an exis-
ting port will need to be omitted.
Steps to take
1.
Start the computer programme.
2.
Click Start.
3.
Select the Schnittstelle IP.
4.
Enter the IP address for the PBX.
5.
Click OK.
The protocol log is displayed.
Note: If you would like to end a recording, click
Anhalten.
Status Power
Reset
