Preparation

Steps to take

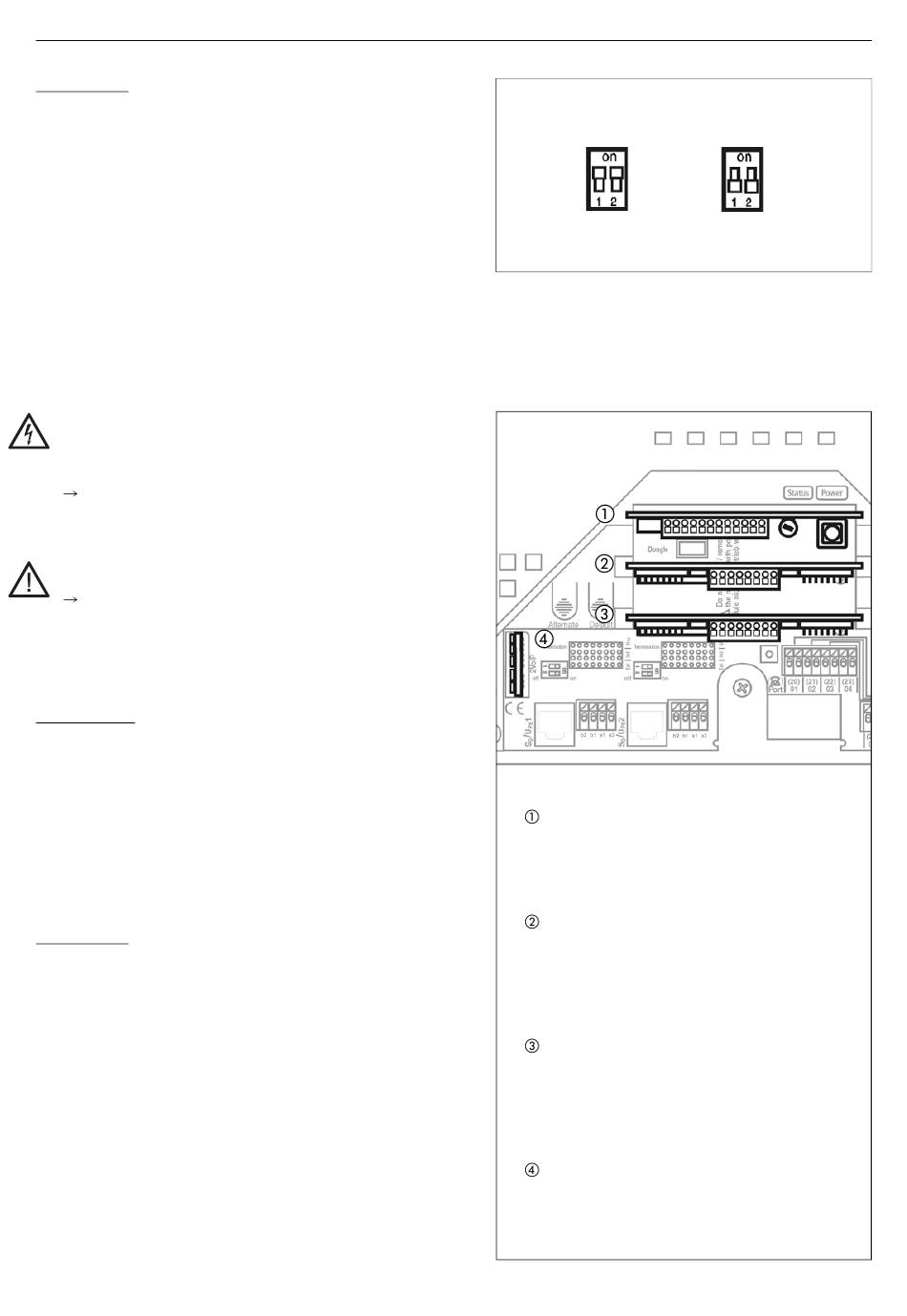

Enabling: Push both buttons on the DIP switch to be

switched to the "on" position. See

Disabling: Push both buttons on the DIP switch to be

switched to the "off" position. See

Warning: Touching the voltage carrying conductors

or the telephone connections – including those on the

modules – may cause a life-threatening electric

shock.

Ten seconds before inserting or removing modu-

les, remove the PBX power plug and the acces-

sory power plug from the power socket.

Attention: Electrostatic charges can destroy sensi-

tive components.

Divert electrostatic charges from yourself before

touching the circuit boards with your hands or any

tools. To do this, touch a metal object, preferably

earthed, for example, a heater or computer hou-

sing.

Requirements

– Previous system planning

Note: Even after adding multiple modules, the COM-

pact 5020 VoIP may be operated with a maximum of

six external analogue and ISDN channels (one S

port corresponds to two ISDN channels).

Note: For multiple modules, first carry out the neces-

sary settings and installations before you insert the

module.

Steps to take

Insert the module between the two circuit board gui-

des. See

Abb.

10.

Note: There is no circuit board guide for the COM-

pact 2VoIP/6VoIP module expansion slot.

Press the module downwards and vertically towards

the base circuit board.

Abb.
