6.5.7 "Diagnosis" menue
In this menue you can view and configure various diagnostic information. The following
diagnostic functions are available:
Menue entry
Counter
Min/max values
Last error
Self test
Maintenance timer
6.5.7.1 Min/Max values
The min/max values save the maximum and minimum values of the different measurands
until they are reset by the user. The menue item that shows the min/max value, can also
be used to reset it. Some of the min/max values are also directly accessible from the
measured value display in the device data (see 6.3.1).

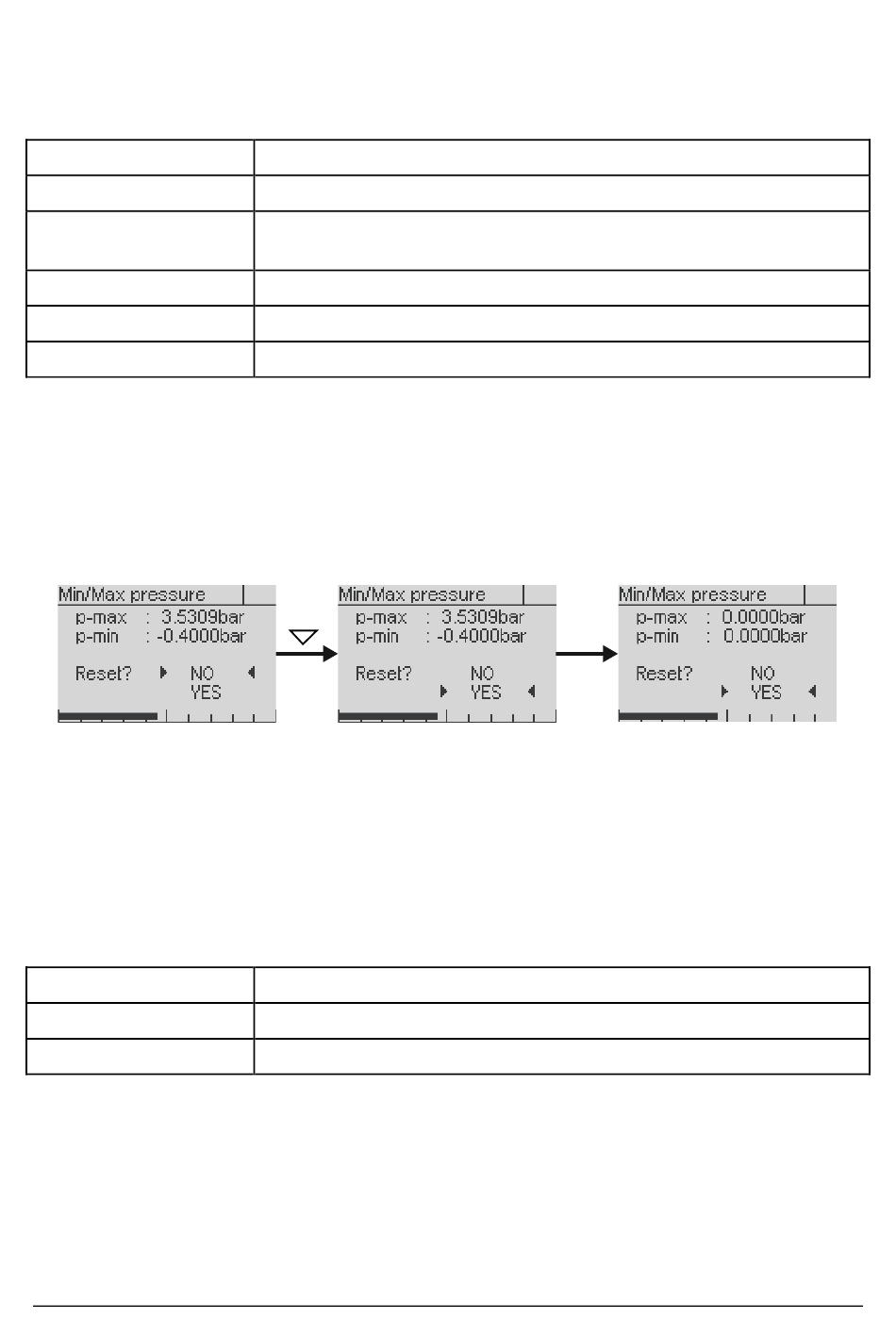

Figure 25: Display and resetting of the Min/Max values for pressure
6.5.7.2 The maintenance timer
Using the maintenance timer, the device can signal the need for maintenance after a freely
selectable number of operating hours. The timer counts down from the start value. Mainte-
nance need is indicated by an icon in the display (see 6.3.3) and, if necessary, the HART
protocol.
When the maintenance timer has expired, the counter continues into the minus range thus
the degree to which the interval has been exceeded is also visible.
Menue entry
Current simulation
Pressure Simulation
BA_078 Rev 1F6 Level transmitter PASCAL Ci4 LEVEL
Description
Display of operating hour counter and maintenance timer
Displaying and resetting the min/max values for the different
measured variables
Display and reset of the last critical error
Self test of the device like after applying the power supply
Management of maintenance intervals
Table 22: "Diagnosis" menue
Description
Setting a fixed current value
Setting a fixed pressure value
Table 23: Maintenance timer" submenue
