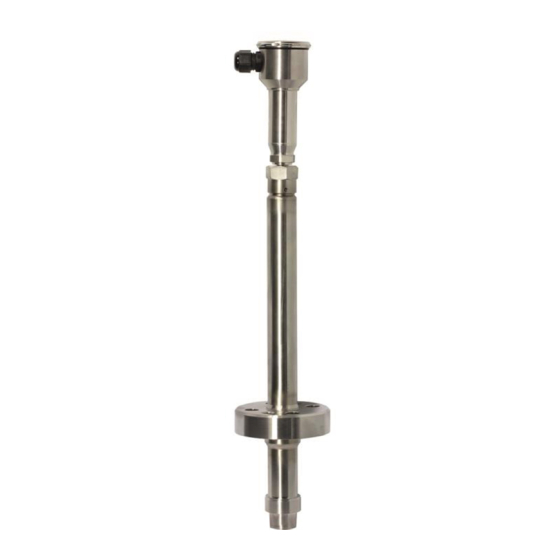

High temperature pressure transmitter
Type series CX6001
Operating Instructions
1 General Information....................................................................................................... 2
1.1 General Safety Notes .............................................................................................. 2
1.2 Intended Use ........................................................................................................... 2
1.3 Conformity with EU Regulations .............................................................................. 2
1.4 ATEX Approval ........................................................................................................ 2
2 Transportation and Storage .......................................................................................... 2
3 Installation and Commissioning .................................................................................. 2
3.1 Mechanical Installation ............................................................................................ 3
3.2 Electrical Connection .............................................................................................. 3
4 Operation ........................................................................................................................ 3
4.1 Zero-point correction ............................................................................................... 4
4.2 Devices with Diaphragm Seal ................................................................................. 4
4.3 Maintenance / Service ............................................................................................. 4
5 Disassembly ................................................................................................................... 5
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com
BA_076_2019-05_10.00
Page 1/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labom CX6001 Series
Summary of Contents for Labom CX6001 Series
- Page 1 4.2 Devices with Diaphragm Seal ................. 4 4.3 Maintenance / Service ..................... 4 5 Disassembly ........................5 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany BA_076_2019-05_10.00 Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com...
- Page 2 In addition to this instruction, be sure to observe all statutory requirements, appli- cable standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 Mechanical Installation Before starting operation, check the process connection carefully for leaks under pressure. You can use the device in any mounting position. Normally the transmitter is adjusted for a vertical mounting position. A different mounting position in combination with a small nomi- nal range might cause a zero point offset.
- Page 4 Pressure transmitter and diaphragm seal are a closed system that must not be separated. You can find further information about diaphragm seals in the document TA_031 on www.labom.com. Maintenance / Service When properly installed in accordance with applicable specifications, this device is maintenance-free.
- Page 5 Disassembly When measuring hot media, make sure that the device has cooled down prior to any dis- mounting or wear appropriate protective clothing to avoid burns. Switch off the power supply to the device before disconnecting the electrical connections. Once this is done, the device may be mechanically removed. Remove the four flange screws.
