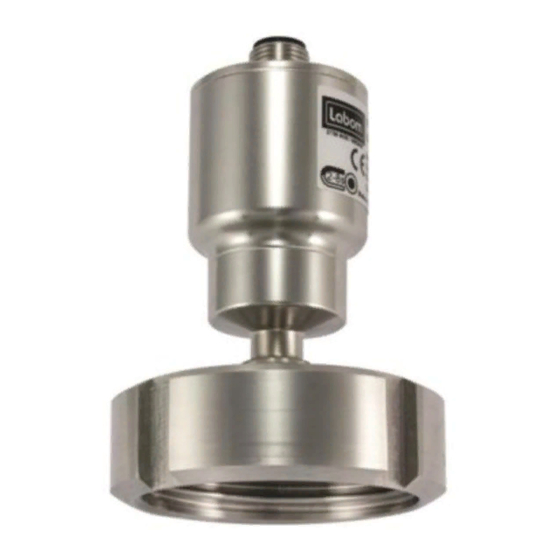

Pressure transmitter UNIVERSAL CA
Type series CA21x0
Operating Instructions
1 General Information....................................................................................................... 2
1.1 General Safety Notes .............................................................................................. 2
1.2 Intended Use ........................................................................................................... 2
1.3 Conformity with EU Regulations .............................................................................. 2
2 Transportation and Storage .......................................................................................... 2
3 Installation and Commissioning .................................................................................. 2
3.1 Mechanical Installation ............................................................................................ 2
3.2 Electrical Connection .............................................................................................. 3
3.3 Devices with Diaphragm Seal ................................................................................. 3
4 Operation ........................................................................................................................ 3
4.1 Correcting the Zero Point ........................................................................................ 4
4.2 Maintenance / Service ............................................................................................. 4
5 Disassembly ................................................................................................................... 5
LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany
Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com
BA_059_2019-05_10.00
Page 1/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Labom UNIVERSAL CA CA21 0 Series
Summary of Contents for Labom UNIVERSAL CA CA21 0 Series
- Page 1 4.1 Correcting the Zero Point ..................4 4.2 Maintenance / Service ..................... 4 5 Disassembly ........................5 LABOM Mess- und Regeltechnik GmbH Im Gewerbepark 13 27798 Hude Germany BA_059_2019-05_10.00 Hotline: +49 4408 804-444 Fax: +49 4408 804-100 e-mail: sales@labom.com www.labom.com...
- Page 2 In addition to this instruction, be sure to observe all statutory requirements, appli- cable standards, the additional technical specifications on the accompanying data sheet (see www.labom.com) as well as the specifications indicated on the type plate. General Safety Notes The installation, set up, service or disassembly of this device must only be done by trained, qualified personnel using suitable equipment and authorized to do so.
- Page 3 Pressure transmitter and diaphragm seal are a closed system that must not be separated. You can find further information about diaphragm seals in the document TA_031 on www.labom.com. Operation During operation, take care that the device remains within its intended pressure and tem- perature ranges.
- Page 4 Correcting the Zero Point You can correct the device's zero point (current at 0 bar) by using a permanent magnet, such as one used for posting notices on a metal bulletin board. The magnet activates a switch inside the device that triggers the zero point correction. The zero point can be ad- justed by at most ±20%.
- Page 5 Disassembly When measuring hot media, make sure that the device has cooled down prior to any dis- mounting or wear appropriate protective clothing to avoid burns. Switch off the power supply to the device before disconnecting the electrical connections. Once this is done, the device may be mechanically removed. Warning Opening pressurized lines might cause severe injuries.
