Teaching-in the density
You can also teach-in the density on
the tank. A basic requirement is that
the height offset is correctly set and
the fill height (relative to the level ze-
ro) can be determined with sufficient
accuracy.
The device calculates the density
from the measured pressure and the
entered fill height and suggests the
density to be saved.
6.5.3.3 "Height offset" submenue
You can view, change or teach-in the height offset in this submenue. You can also set the
unit for the height offset (and the fill height).
Menue item
View / change
Teach-in
Unit
Teaching-in the height offset
You can also teach-in the height offset on
the tank. A basic requirement is that the
density is correctly set and the tank is filled
to level zero with sufficient accuracy.
The device calculates the height offset (dis-
tance from pressure zero to level zero) from
the current pressure and the density en-
tered and suggests that value for the height
offset.
BA_078 Rev 1F6 Level transmitter PASCAL Ci4 LEVEL
Description
View / change the height offset
Teach-in the height offset
Select the unit for the height
Table 10: "Height offset" submenue
Input of current fill height
based on level zero
Density calculated by
device and suggested
for storage

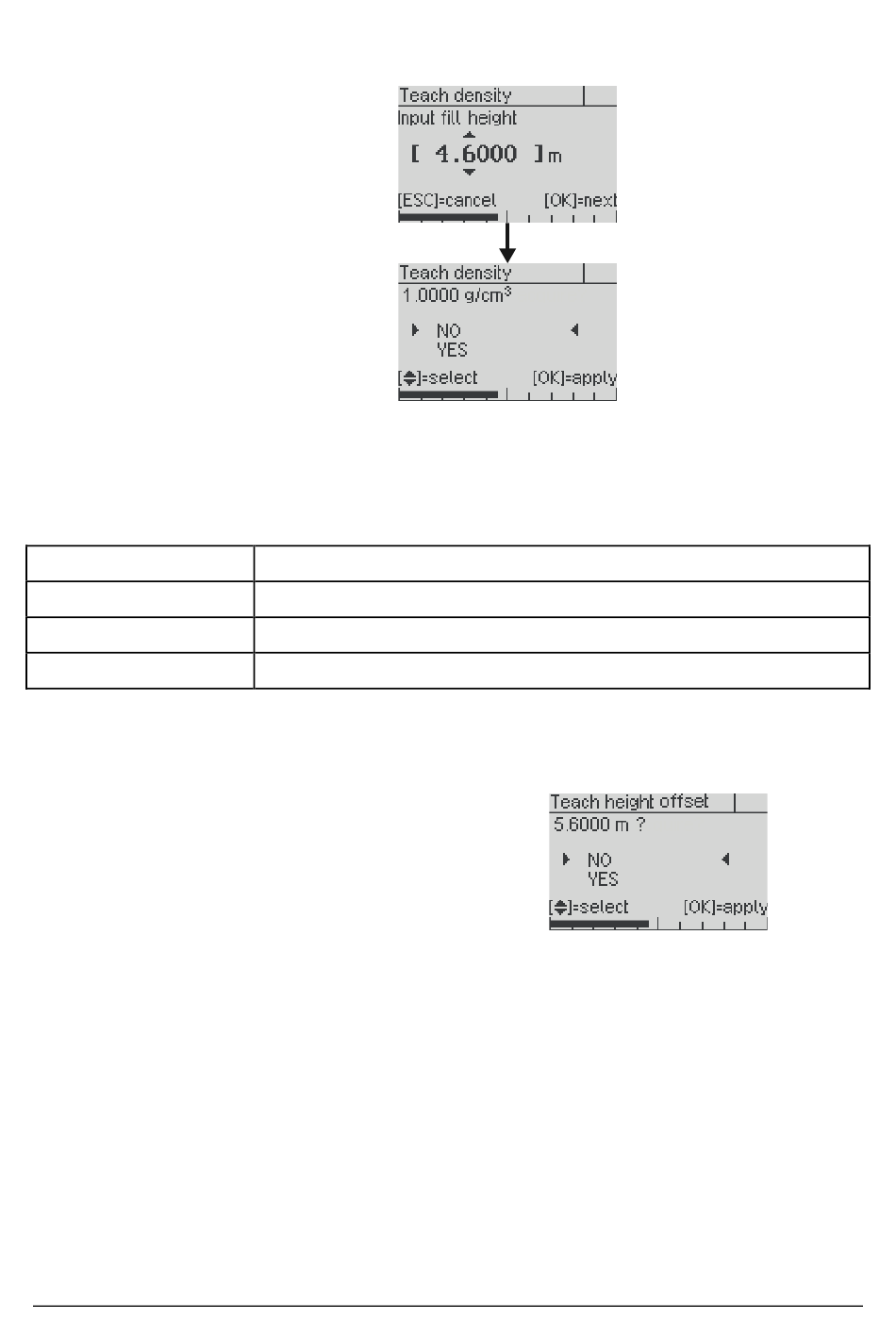

Figure 19: Teaching-in the density
Figure 20: Teaching-in the height offset
Page 21/36
