Multi-Press 6.0
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multi-Press 6.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxxus Multi-Press 6.0

Summary of Contents for Maxxus Multi-Press 6.0

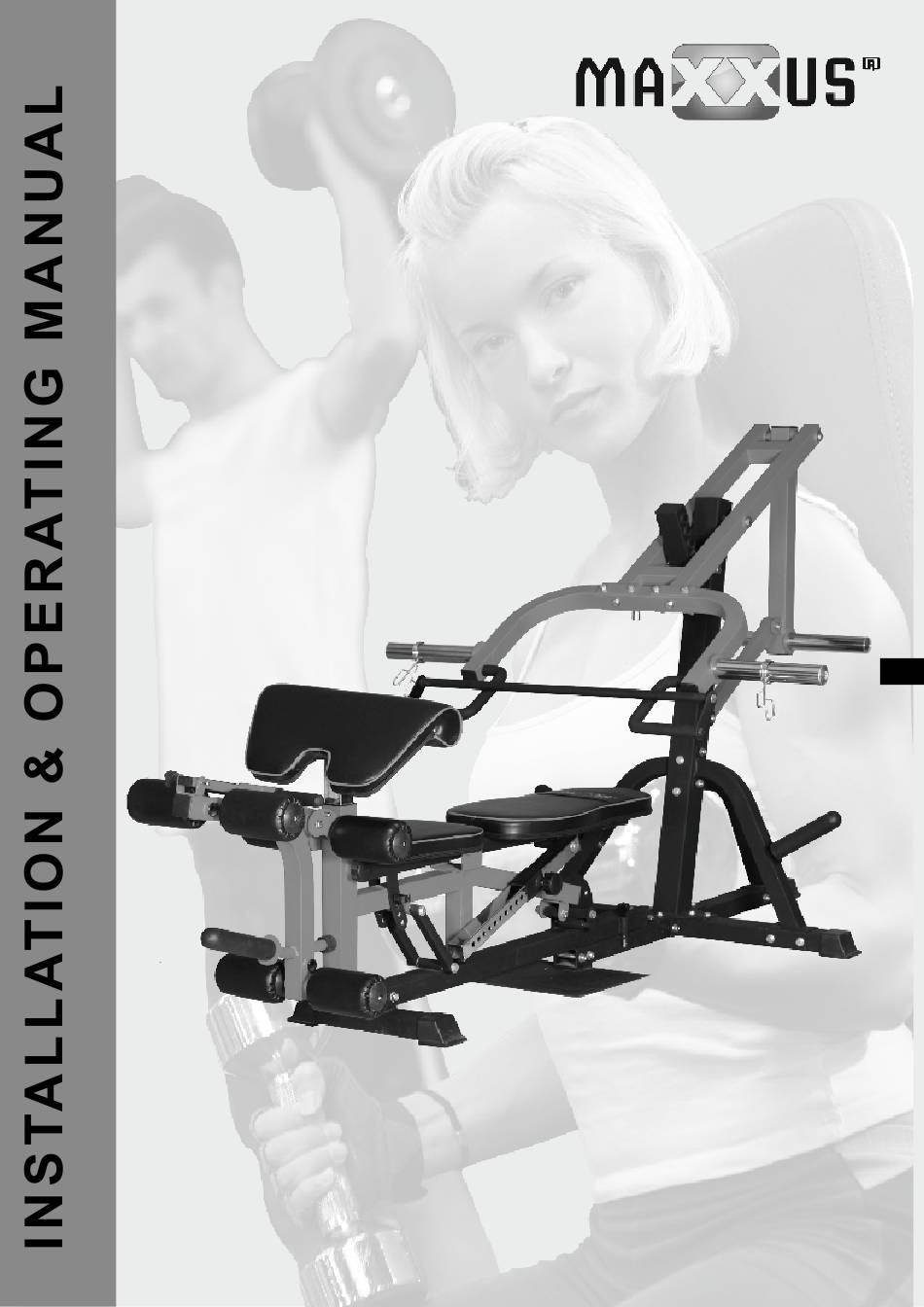

  • Page 1 Multi-Press 6.0...

  • Page 2: Table Of Contents

    This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or in part, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Maxxus Group GmbH & Co. KG.

  • Page 3: Safety Instructions

    Any manipulation of or interference with the device can cause damage to the device and be a danger to people. If you have any questions or queries contact your specialist dealer or the MAXXUS Service Team and they will be pleased...
  • Page 4 Scope of Delivery Scope of Delivery – Assembly Step 1: Scope of Delivery – Assembly Step 2: Scope of Delivery – Assembly Step 3:...
  • Page 5 Scope of Delivery Scope of Delivery – Assembly Step 4: Part No. Description - Step 3 Safety pin Bracket for seat cushion Bracket for back rest Adjuster pin unit Adjuster tube Leg curler Tube for round cushion Part No. Description - Step 1 Arm curl Main tube, fixed Tube for arm curl cushion...

  • Page 6: Assembly

    Assembly Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are bulky and heavy. Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered. Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem- bly are not covered by the warranty or guarantee.

  • Page 7: Assembly

    Assembly Assembly Step 1.2: Place the upright main tube (5) onto the joint between the fixed main tube (1) and the two side stabilisers (4) and then fix them using eight screw sets (6). Then, fix the two support (8-left/7-right) to the upright main tube (5) and to the right and left side stabilisers (4). To to this, use two screw sets (10) on the upright main tube (5) and two screw sets (3) on each side stabiliser (4).
  • Page 8 Assembly Assembly Step 2.1: Fix the front stand tube (22) with two screw sets (3) to the moveable main tube (21). Place the moveable main tube (21) with the guide bushing onto the bolt on the fixed main tube (1) and fix it with screw set (A). Caution: Be very careful putting the moveable tube (21) onto the bolt.
  • Page 9 Assembly Assembly Step 2.2: Fix the bracket with safety pin (23) to the rear mount on the main frame (25) using one screw set (28). Make sure that bracket (23) is the right way around – see diagram. Then fix the bracket with safety pin (23) using the axle set (26) to the moveable base tube (21). Then place guide tube (24) onto the right and left of the front axle mount on the main frame (25) and the axle mount on the moveable main tube (21) and fix each of these with two screw sets (6).
  • Page 10 Assembly Assembly Step 3.1 Fix the seat cushion (49) using two screw sets (51) to the seat frame (38). Then fix the back-rest cushion (52) using two screw sets (51) to the back frame (39). Next put the seat frame (38) using axle set (40) onto the bracket on the main frame (25) and fix the height of the seat frame with safety pin (29).
  • Page 11 Assembly Assembly 3.2 Place leg curl (43) onto the front mount on the main frame (25) and fix it left and right using a screw set (6) Place the three tubes for the round cushions (44) into the mounts on the main frame (25) and into the front and lower ends of the leg curl (43).
  • Page 12 Assembly Assembly Step 3.3 Fix the arm curl cushion (66) with two screw sets (37) onto the arm curl tube (47). Next put the arm curl tube (47) into the mount on the main frame (25) and fix it in the required position using the knob (34). Next fix the hand grip on the arm curl (45) onto the leg curl (43) using a safety pin (29).
  • Page 13 Assembly Assembly Step 4 Place the double frame (69) using axle (2) onto the top mount on the upright main frame (5) and fix it with two screw sets (6). Next connect the weight support (70) and the upright main frame (5) to the connecting tube (71). To do this use two screw sets (72).
  • Page 14 To achieve this clean the guide pipes with a damp cloth and some liquid soap or washing up liquid. Alternatively, you can use the MAXXUS® degreaser spray (optionally available). After this, dry the guide pipes off thoroughly and lubricate them with MAXXUS® lubricant spray (optionally available) leaving a thin film on the surface.

  • Page 15: Training Recommendations

    Training Recommendations Preparation Before Training Before you start training make sure that not only your training device is in perfect condition, your body must also be prepared for training. Therefore, if you have not done any endurance training for some time, you should con- sult your GP and undergo a fitness check-up.

  • Page 16: Training Recommendations

    Training Recommendations Intake of Liquids The intake of sufficient liquids before and during training is vital. During a 60-minute training session it is possible to lose up to 0.5 litres of liquid. To compensate for this loss, you can drink a mix of one third apple juice to two thirds water to replace all electrolytes and min- erals which your body loses through sweat.

  • Page 17: Exploded Drawing

    Exploded Drawing...

  • Page 18: Parts List

    Parts List Part No. Description Size under main frame feet pad bolt M12x95 side ground tube stand tube bolt M10x25 right side support tube left side support tube back support tube bolt M12x105 bolt M12x100 tube cap □50-70 tube cap □50x70x2.0 Countersunk head tapping screws ST4.0X16...

  • Page 19: Parts List

    Parts List Part No. Description Size pull bar bolt M10x75 cheast pad bearing seat pad tube cap 40x60 bolt M8x55 back pad tube cap 45x45x2.0 shaft sleeve Ø32xØ25.8x25 Powder metallurgy set sleeve axis of rotation sponge inside sponge cap outside sponge cap Hexagon socket button head screws M8x25 sleeve...
  • Page 20 Notes...
  • Page 21 Notes...
  • Page 22 The warranty period for your training device starts on the date of purchase and applies solely to products which were purchased directly from the MAXXUS Group GmbH & Co KG or one of the MAXXUS Group GmbH & Co KG direct and authorised distribution partners.

  • Page 23: Service Contract

    I accept the General Terms and Conditions of MAXXUS® Group GmbH & Co. KG. I hereby instruct the company MAXXUS® Group GmbH & Co. KG to repair the above defects. In Warranty cases I will not be charged for the cost. The costs for repairs which are excluded from liability for defects in quality will be charged to me and must be settled immediately.
  • Page 24 Maxxus Group GmbH & Co. KG Zeppelinstr. 2 D-64331 Weiterstadt Germany E-Mail: info@maxxus.com www.maxxus.com...
