Filling And Draining - IKA RC 5 basic Operating Instructions Manual

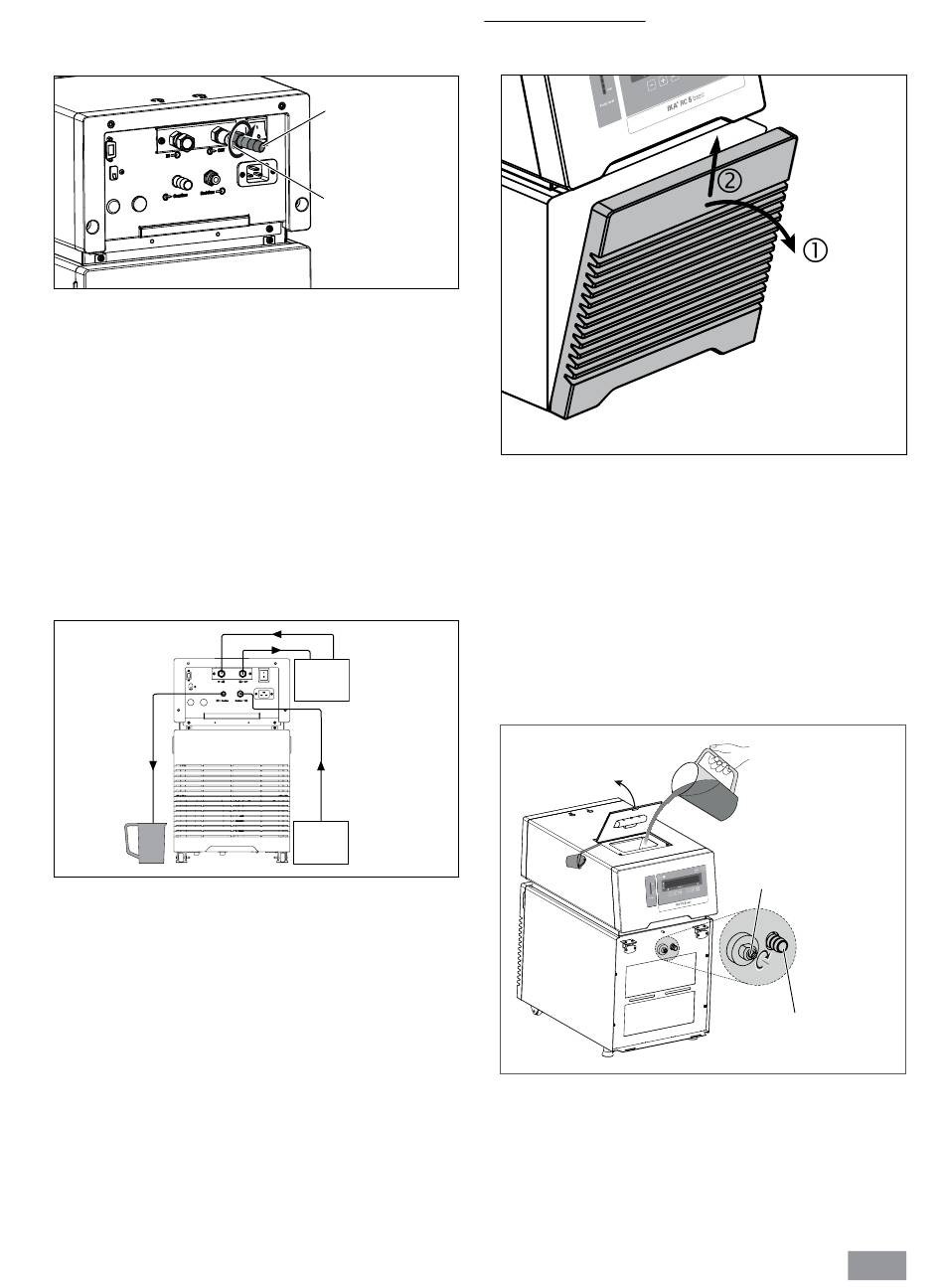

- Screw the hose olive to the pump connection IN and
OUT with union nuts� Slide the hoses (NW 12) onto the
olives� The hoses must be secured with suitable clamps�
- Via a hose to the "Overflow" connection, overflowing fluid
can be directed into a suitable vessel� The vessel should be
positioned lower than the "Overflow" connection�
In case of closed external system, if there is in any case no
risk of exceeding the maximum fluid level, you can close
the "Overflow" connector with the included overflow
cap� This minimizes the energy loss and protects, in case
of long-term applications with low temperatures and
high humidity, against unwanted water input and the as-
sociated volume increase�
Check fluid heat expansion!
- Connect the "Backflow" connector to IKA calorimeter
with a suitable hose�
When IKA calorimeter is not connected, please close the
"Backflow" connector with included backflow cap�
Fig. 4
Note: When the external system is not necessary, please
seal the pump connection IN and OUT with the existing
union nuts and stoppers�
Olives
Union nut
Fig. 3
External
system
IKA
®
Calorimeter

Filling and draining:

- Before filling the fluid into the bath, open the venting grid
as indicated in following figure�
Fig. 5
- Check and make sure that the drain valve is closed (rotate
clockwise to the stop position, see Fig� 6)�
Note: Please note information in section "Commissioning and
operation"�
- Connect the power plug and turn on the device with
power switch�
- The low level warning message appear on the display�
Meanwhile, the bottom LED segment of the lights up in
red color to indicate the low fluid level (see Fig� 7)�
- Open the filling opening lid and remove the stopper from
the filling opening� Then, fill fluid to the bath�
Fig. 6
Drain valve
Drain port
