Design and function

Welding torch connection

5.8.1 Welding torch connection
Before commissioning, the plasma welding torch must be equipped for the welding JOB
and correspondingly set/adjusted!
Item Symbol Description
1
2
3
4
5
• Screw adapter (G1/4 > G1/8) onto G1/4 shielding gas connecting nipple, welding machine output.
• Screw adapter (G1/8 > cap) onto adapter (G1/4 > G1/8).
• Insert connecting nipple on the torch shielding gas line into adapter (G1/8 > cap).
• Screw adapter (G1/4 > G1/8) onto connecting nipple (G1/4, plasma gas connection).
• Screw adapter (G1/8 > plug-in nipple) onto adapter (G1/4 > G1/8).
• Insert connection socket on the torch plasma gas line onto adapter (G1/8 > plug).
34
0
G1/4" shielding gas connecting nipple, welding machine output
Connection to the welding torch or gas metering unit (GMU)
Adapter (G1/4 > G1/8)
Adapter (G1/8 > cap)
G1/4" plasma gas connecting nipple, welding machine output
Connection to the welding torch or gas metering unit (GDE)
Adapter (G1/8 > plug-in nipple)
NOTE
1 2
4 2

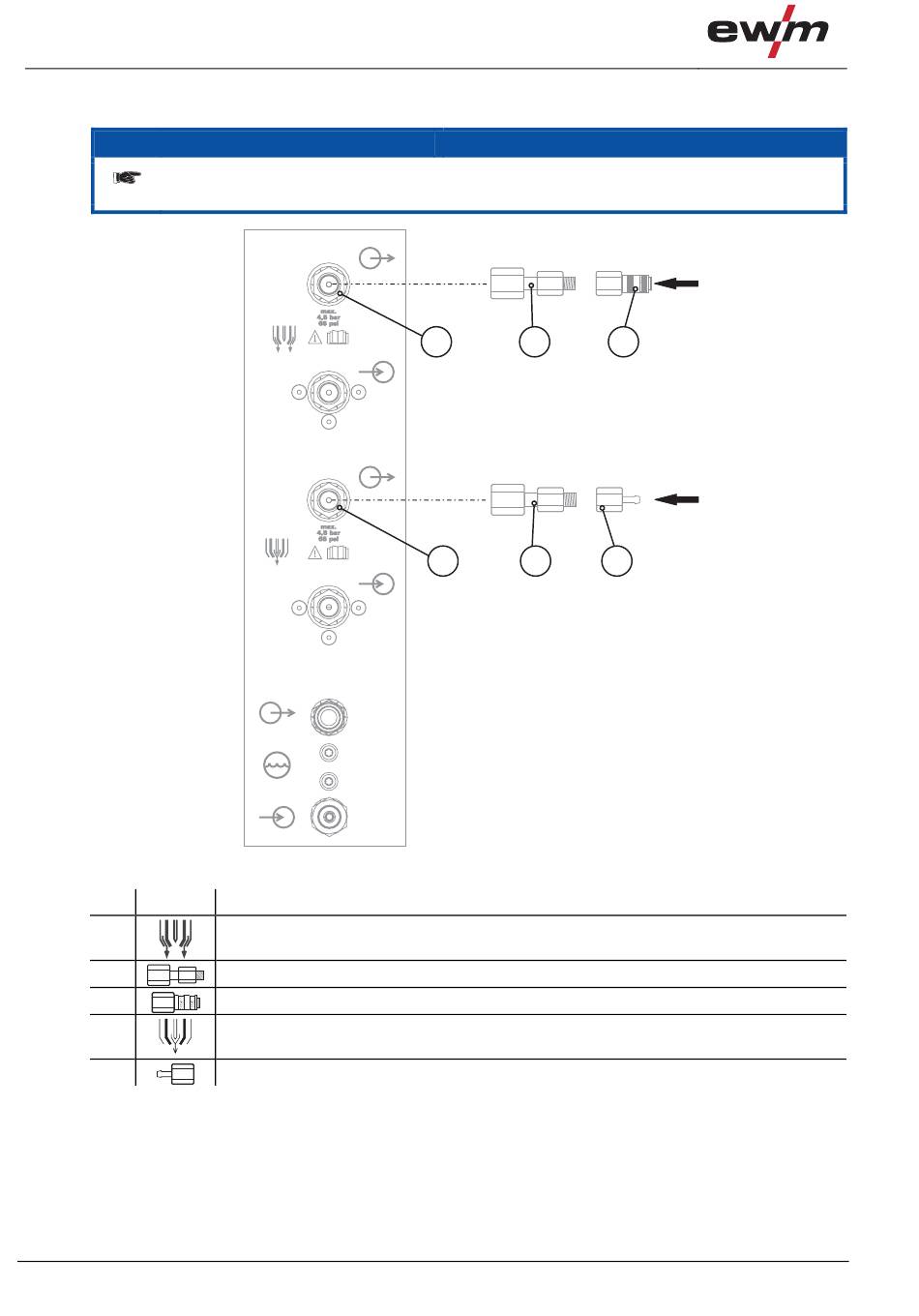

Figure 5-5
3
5
