Machine description – quick overview
Tetrix 152, 352, 552 RC Plasma CW GR

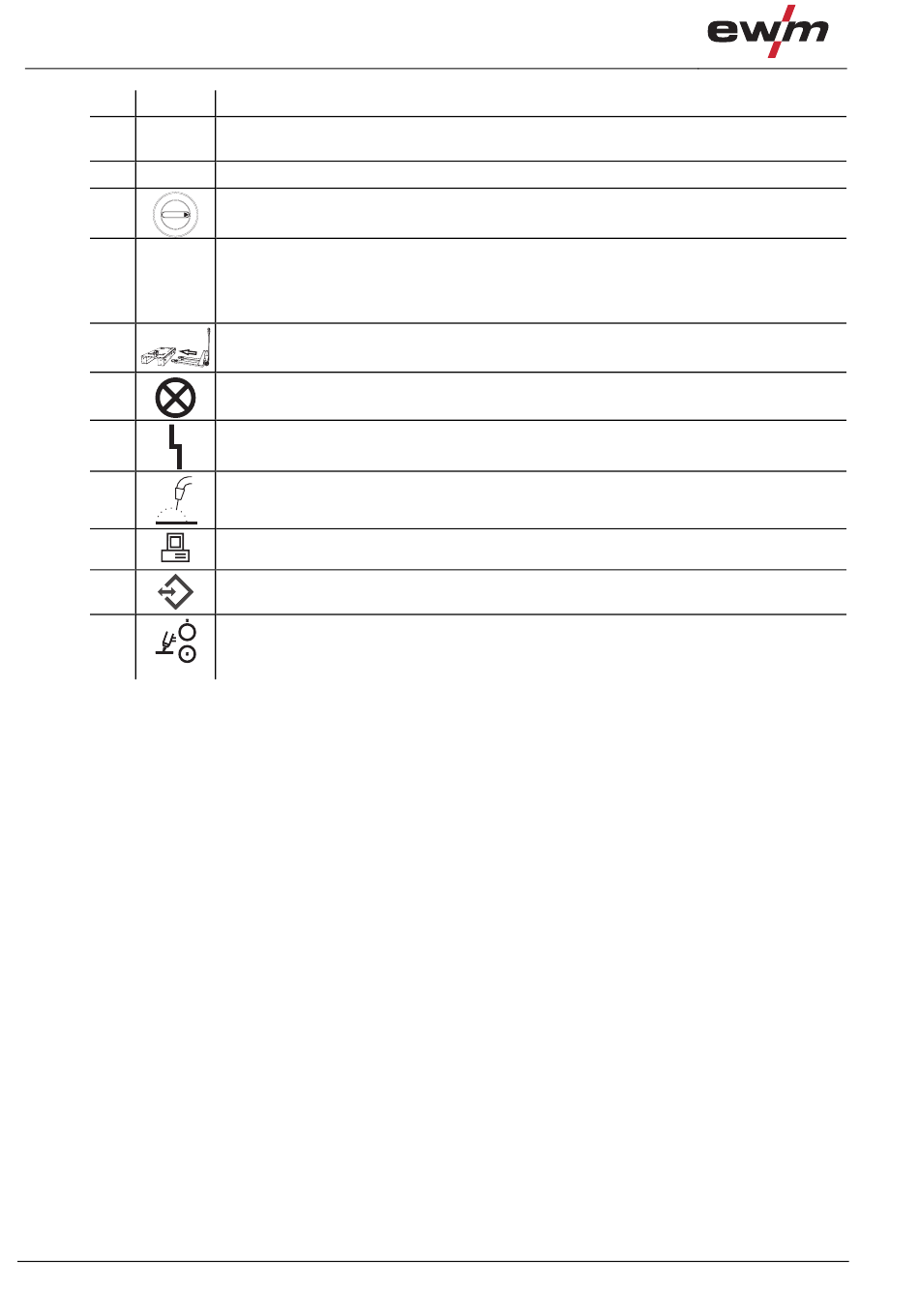

Item Symbol Description
1
2
0
3
l
4
5
6
7
8
9
COM
10
11
16
0
Machine control
See Machine control – operating elements chapter
Cooling air inlet
Main switch, machine on/off
Automatic cutouts
• Fuse protection for the pilot arc power source
• Fuse protection for the reverse cooling unit's protective contact socket (back of
machine)
ROB XX2 pallet
Transport pallet
Operating state signal lamp
Lights up when the machine is ready for use.
Operating problem signal light
(see chapter "Rectifying faults")
Welding process signal lamp
Lights up when the welding process runs.
PC interface, serial (D-Sub connection socket, 9-pole)
7-pole connection socket (digital)
For connecting digital accessory components
Pilot arc button with signal light
Signal light off: pilot arc off
Signal light on: pilot arc lit
