Machine description – quick overview
0
Welding torch head
Wire delivery unit cover
Plasmadrive
Filler wire drive
Sensor voltage connection for the filler wire fusing detection
Contact pressure roller lock
Contact pressure setting (hexagon socket)
Drive rollers
Anticollision device connection
Reverse inching button
Connection socket control lead welding torch
Wire inching key button
Gas test button
Shielding gas flows for 20 s, or press again to stop the gas flow.
Torch hose package connection

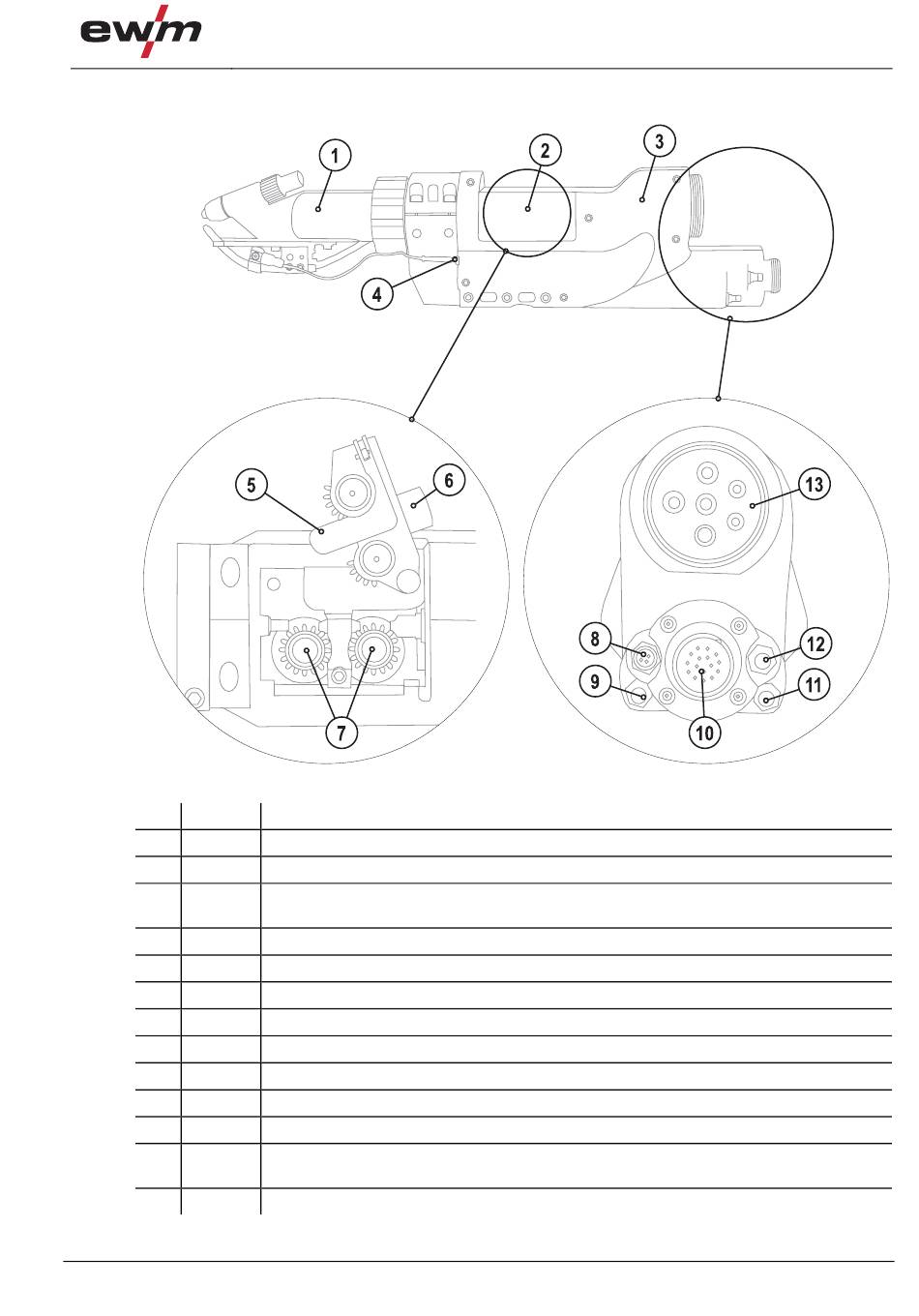

Figure 4-5
