Installing the power module

CAUTION:
To avoid bodily injury and device damage, strictly follow the
procedure in

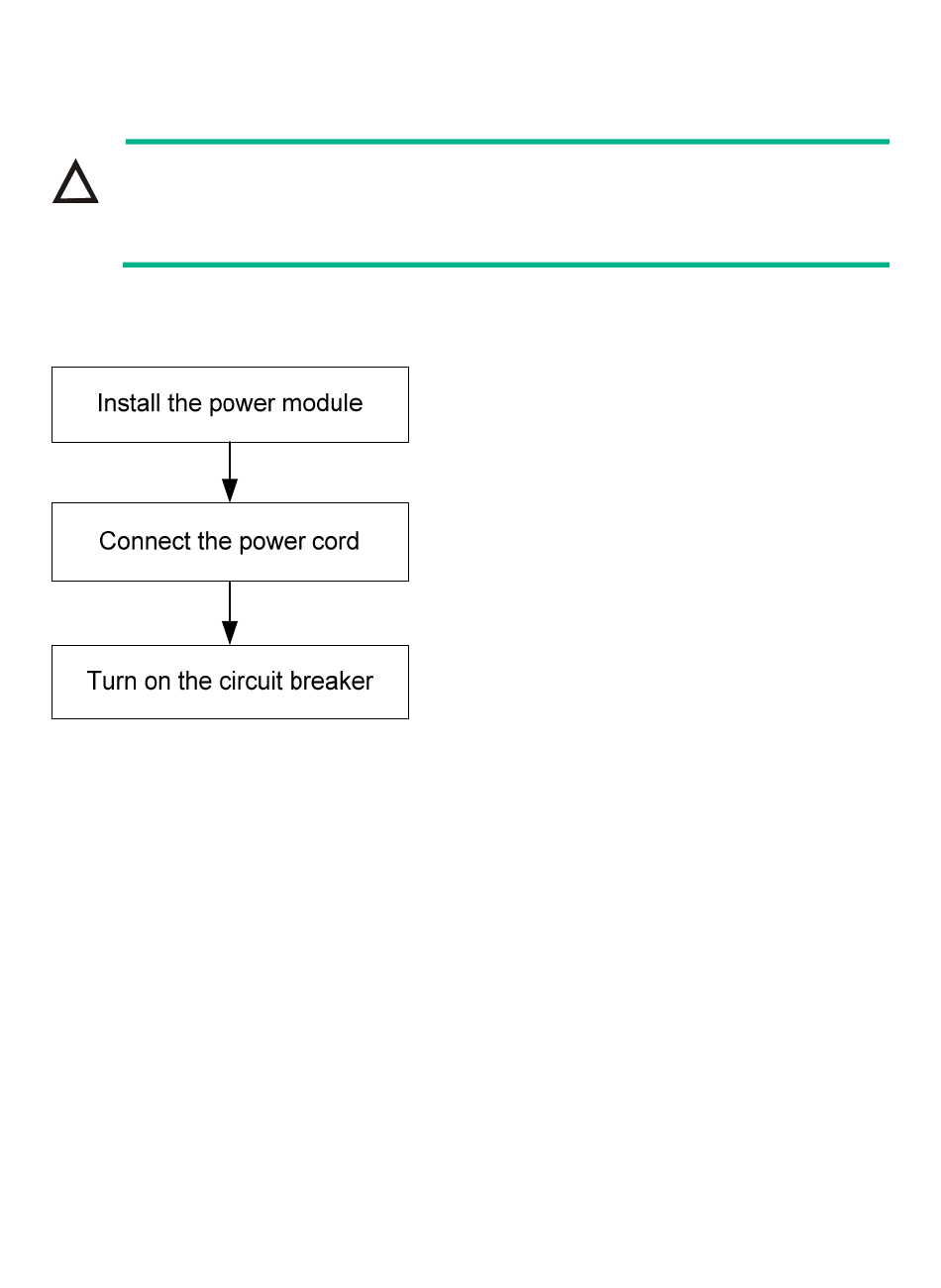

Figure 3 Power module installation procedure
To install the power module:
1. Wear an ESD wrist strap and make sure the strap makes good
skin contact and is reliably grounded.
2. Unpack the power module and make sure the power module
model is as required.
Keep the power module package secure for future use.
3. As shown in
the lettering on it upwards). Grasping the module handle with
one hand and supporting the module bottom with the other,
push the module slowly into the slot along the guide rails. Make
sure the power module has good contact with the backplane
connectors.
Figure 3 to install the power module.
Figure 4, correctly orient the power module (with
