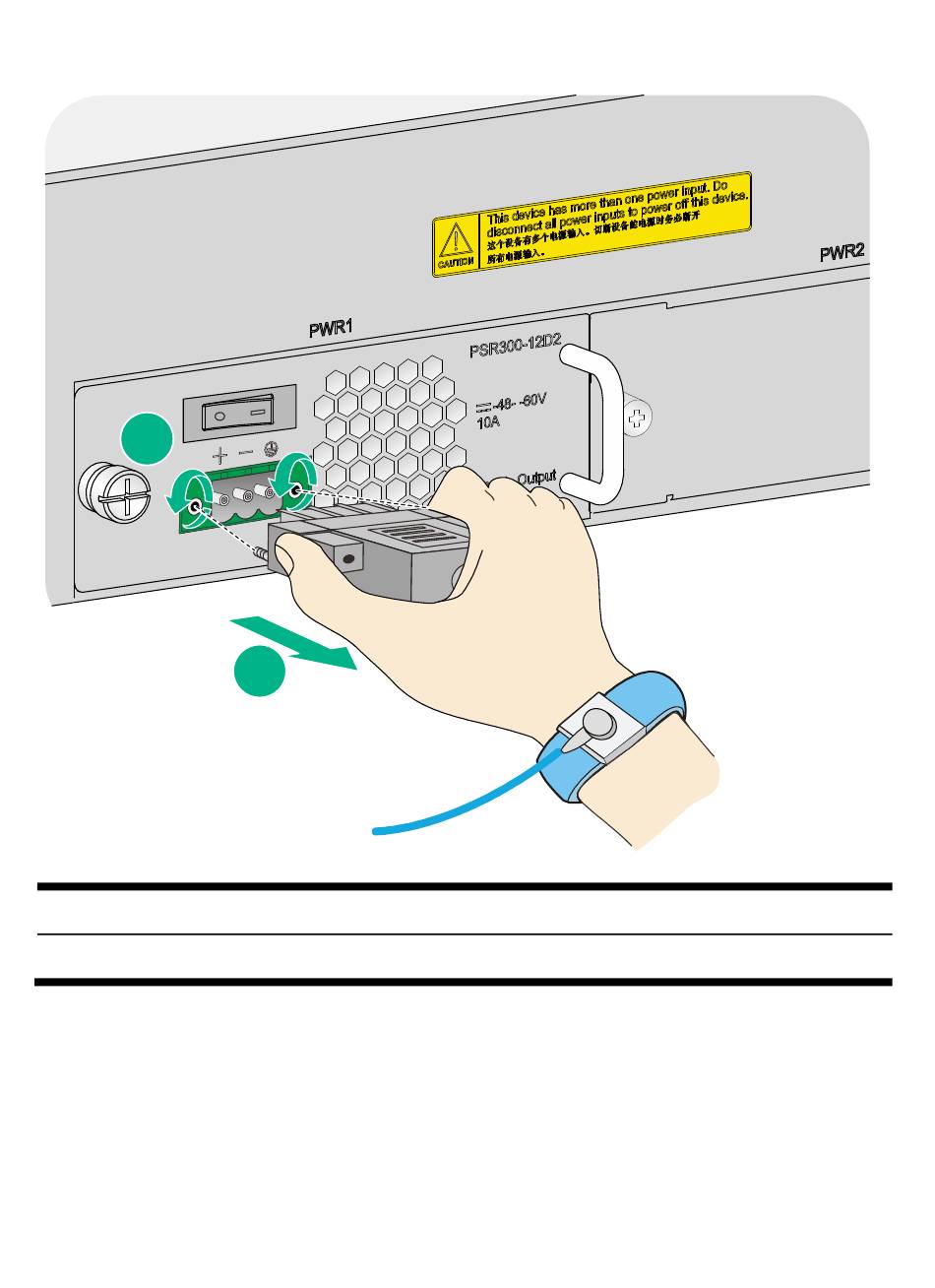

Figure 9 Removing a DC power cord connector
1
(1) Loosen the screws on the power cord connector
(2) Pull the connector out
4.
As shown in
module. Grasping the power module handle with one hand, pull
the power module part way out of the slot. Supporting the power
module bottom with the other, pull the power module slowly out
of the slot along the guide rails.
2
Figure
10, loosen the captive screw on the power
12
