- Page 1 H3C PSR150-A & PSR150-D Series Power Modules User Manual Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W103-20170213...
- Page 2 , H3CS, H3CIE, H3CNE, Aolynk, Care, , IRF, NetPilot, Netflow, SecEngine, SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of Hangzhou H3C Technologies Co., Ltd. All other trademarks that may be mentioned in this manual are the property of their respective owners Notice The information in this document is subject to change without notice.
- Page 3 Obtaining documentation Access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com. Click the following links to obtain different categories of product documentation: [Technical Documents]—Provides hardware installation, software upgrading, and software feature configuration and maintenance documentation.
- Page 4 Contents Overview ························································································1 Technical specifications ················································································································ 2 Front panel ································································································································· 2 Installing and removing the power module ·············································4 Safety guidelines ························································································································· 4 Tools ········································································································································· 4 Installing and removing the power module ························································································ 4 Installing the power module ····································································································· 5 Removing the power module ··································································································· 5 Connecting the power cord ············································································································...

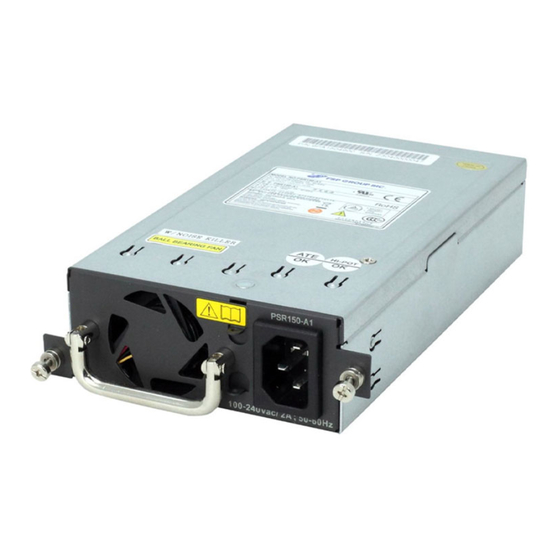

- Page 5 Overview The PSR150-A, PSR150-A1, and PSR150-A2 are AC-input and DC-output power modules. The PSR150-D and PSR150-D1 are DC-input and DC-output power modules. These power modules provide an output voltage of 12 V and a maximum output of 150 W. These power modules have the following features: •...
- Page 6 Technical specifications Table 3 Technical specifications Item Specifications PSR150-A/PSR150-A1/PSR150-A2: 100 VAC to 240 VAC @ 50 Hz or 60 Hz Rated voltage range PSR150-D/PSR150-D1: –48 VDC to –60 VDC PSR150-A/PSR150-A1/PSR150-A2: 90 VAC to 264 VAC @ 47 Hz or 63 Hz Max voltage range PSR150-D/PSR150-D1: –36 VDC to –72 VDC Output voltage...
- Page 7 Figure 2 Front panel of the PSR150-D1 DC power module (1) Handle (2) Captive screws (3) Screw holes for securing the DC power cord plug (4) DC-input power receptacle...
- Page 8 Never place the power module in a wet area and prevent fluid from flowing into the power module. • To avoid power module damage, do not open the power module. When the internal circuits or components of the power module fail, contact H3C Support. Tools Prepare the following tools for installation and removal: •...
- Page 9 Installing the power module Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably grounded. Unpack the power module and verify that the input mode of the power module is as required. Remove the filler panel, if any, from the target power module slot.
- Page 10 Connecting the power cord Use an AC power cord to connect an AC power module to the external AC power supply system. Use a DC power cord to connect a DC power module to the external DC power supply system. Connecting an AC power cord As shown by Figure 6,...
- Page 11 Connecting a DC power cord Correctly orient the DC power cord plug, and insert it into the DC-input power receptacle on the power module. If you insert the plug upside down, you will feel hard resistance because of the special structure designs of the DC-input power receptacle and the plug.
