Mount the Flexible Arm

Please use the 4 screws included with this monitor or the screw type specified below.
200 mm

CAUTIO
E: •
The monitor should only be used with an approved arm (e.g. TUEV NS mark).
•

Tighten all screws (recommended fasten torque: 98 - 137 N•cm).
•

Attaching the flexible arm should be done by two or more people if the monitor cannot be placed face down
on a flat surface for installation.
•

When using the monitor in the portrait position, it should be rotated clockwise so that the left side is moved
to the top and the right side is moved to the bottom.
This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may
shorten the lifetime of the monitor (Figure F.2).
100 mm
Weight of LCD assembly: 8.6 kg

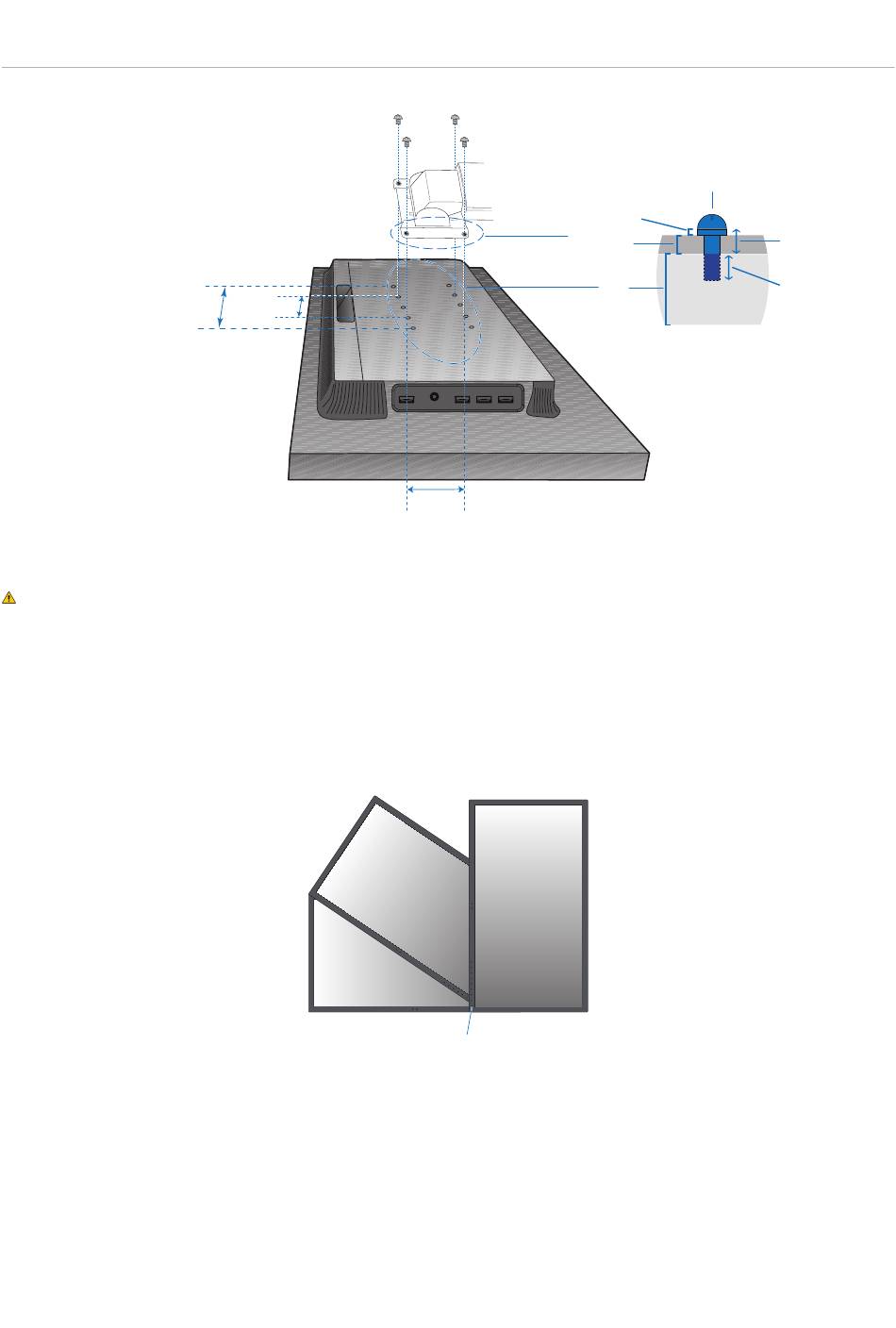

Figure F.1
English−20
Mounting
Bracket
100 mm
LED Indicator
Figure F.2
Screw (M4)
Washer
Unit
Thickness of
bracket and
washer
10-12 mm
