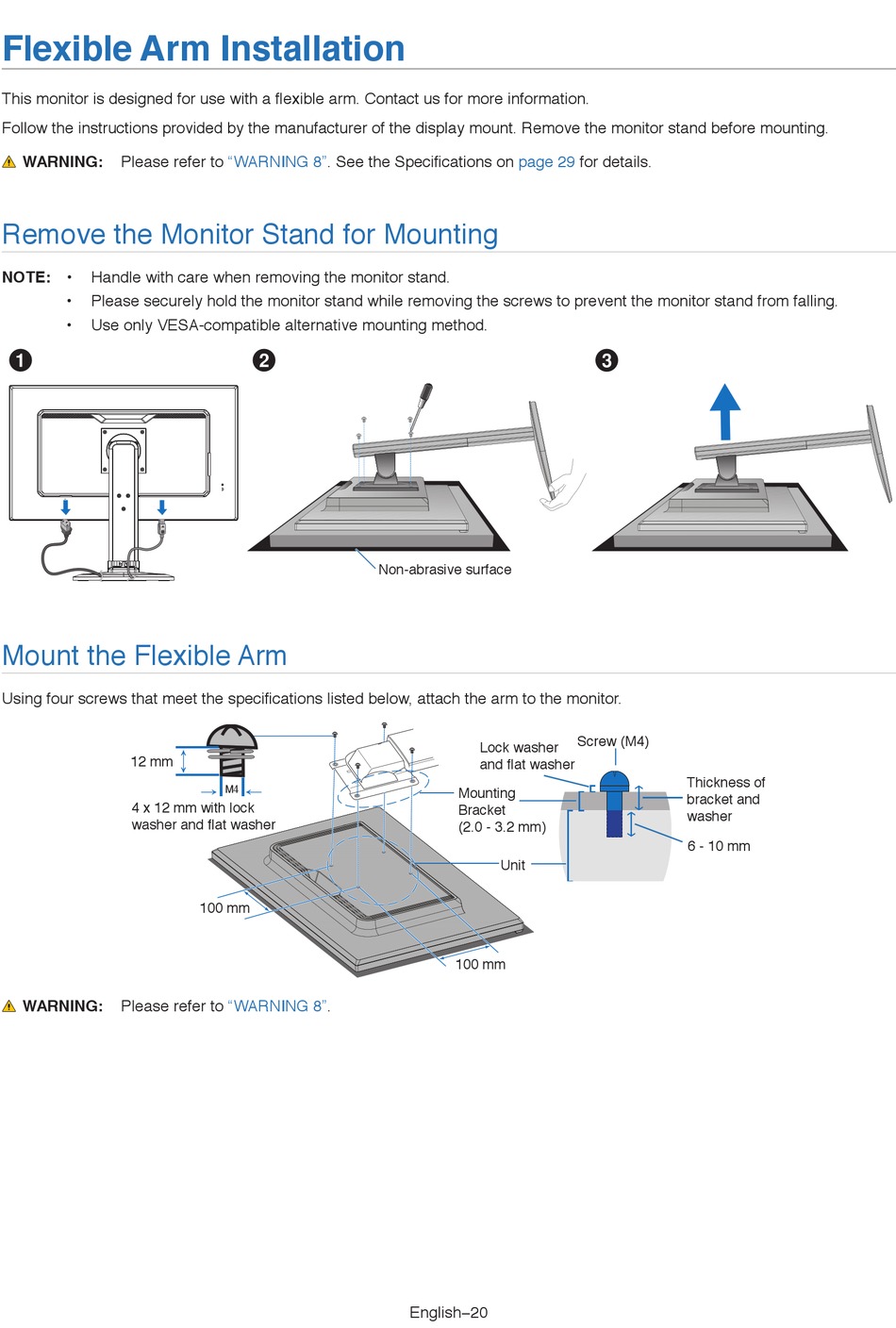

Flexible Arm Installation
This monitor is designed for use with a flexible arm. Contact us for more information.
Follow the instructions provided by the manufacturer of the display mount. Remove the monitor stand before mounting.
AROIONN
Please refer to
Remove the Monitor Stand for Mounting
OOTEN •
Handle with care when removing the monitor stand.
•
Please securely hold the monitor stand while removing the screws to prevent the monitor stand from falling.
•
Use only VESA-compatible alternative mounting method.
1
Mount the Flexible Arm
Using four screws that meet the specifications listed below, attach the arm to the monitor.
12 mm
4 x 12 mm with lock
washer and flat washer
AROIONN
Please refer to
"WARNING
8". See the Specifications on
2
M4
100 mm
"WARNING
8".
page 29
Non-abrasive surface
Lock washer
and flat washer
Mounting
Bracket
(2.0 - 3.2 mm)
Unit
100 mm
English−20
for details.
3
Screw (M4)
Thickness of
bracket and
washer
6 - 10 mm
