Summary of Contents for NEC MultiSync PA311D

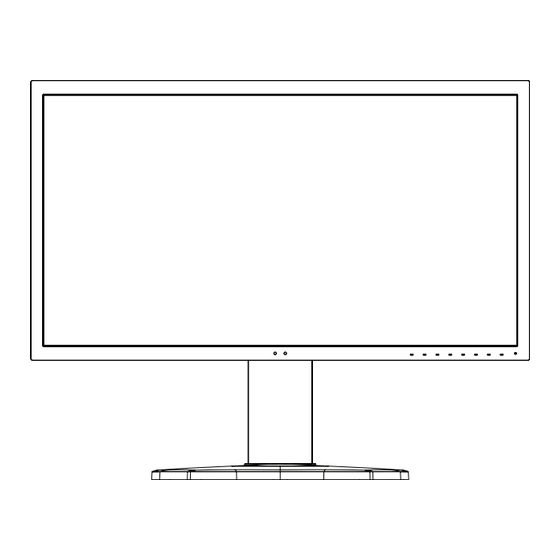

- Page 1 Desktop Monitor MultiSync PA311D User’s Manual MODEL: PA311D-BK The model name and serial number can be found in the label on the rear side of monitor.
-
Page 2: Table Of Contents
Table of Contents Important Information ............1 Recommended Use ..............4 Registration Information ............3 Product Features Installation Chapter 1 Parts Name and Functions ..........12 Setup ..................16 Control Panel ..............12 Adjustable Stand Capability ..........19 Terminal Panel ..............13 Flexible Arm Installation .............19 Connections ................14 Remove the Monitor Stand for Mounting ......19 Connecting Video ...............14 Mount the Flexible Arm ............20... - Page 3 System ................52 Video ..................48 Customize ................53 Audio ..................49 Tools ...................54 USB ..................50 Information ................54 Multi-Picture ................51 Manufacturer’s Recycling and Energy Information Appendix C Disposing of your old NEC product ........56 WEEE Mark (European Directive 2012/19/EU and amendments) ..............56 Energy Saving ..............56...
-
Page 5: Important Information
Please use the power cord provided with this display in accordance with the power cord table. If a power cord is not supplied with this equipment, please contact NEC. For all other cases, please use the power cord with the plug style that matches the power socket where the monitor is located. - Page 6 (4) The image shown in this user’s manual is indicative only. If there is inconsistency between the image and the actual product, the actual product shall govern. (5) Notwithstanding articles (3) and (4), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using this device.
-
Page 7: Registration Information
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. -
Page 8: Recommended Use
Recommended Use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWINN WHEN SETTINN UP AND USINN THE LCD COLOR MONITOR: About the Symbols To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well as damage to property. - Page 9 WARNING Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor. Do not use the monitor if the monitor was dropped or the cabinet is damaged. Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal, or may cause electric shock, fire or equipment failure.
- Page 10 CAUTION Do not climb on the monitor or the table where the monitor is installed. Do not install the monitor on a wheeled table if the wheels on the table have not been properly locked. The monitor may fall causing damage to the monitor or personal injury.
- Page 11 OTEE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle, or turn off the monitor when not in use.
- Page 12 Ergonomics CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER, AND NECK FATINUE. CHECK THE FOLLOWINN WHEN YOU POSITION THE MONITOR: To realize the maximum ergonomics benefits, we recommend the following: • For optimum performance of the monitor, allow 20 minutes for warming up. Avoid reproduction of still patterns on the monitor for long periods of time to avoid image persistence (after image effects).
-
Page 13: Product Features
SpectraView engine • The sophisticated NEC exclusive color processing engine integrated into the display. It combines internal luminance, white point, ambient lighting, temperature and time monitoring, together with individual characterization and calibration of each display during production, to provide an unparalleled level of color control, uniformity, accuracy and stability. - Page 14 • PbP / PiP (see page Increases productivity by displaying multiple input sources simultaneously, either next to each other (Picture-by-Picture) or a small inset screen on a large main screen (Picture-in-Picture). This function can also be used to display one input source in two different picture modes for a side by side comparison of different settings.
-
Page 15: Installation
Installation Chapter 1 This Chapter Includes: > “Parts Name and Functions” on page 12 > “Connections” on page 14 > “Setup” on page 16 > “Flexible Arm Installation” on page 19 English−11... -
Page 16: Parts Name And Functions
Parts ame and Functions Control Panel Default assignment Function A Key1 Menu Accesses the OSD menu. Pic.L (Picture mode List) Shows the [Picture mode] menu when not in the OSD control menu B Key2* Lumi (Luminance) Adjusts the luminance when the OSD menu is not open. C Key3* Volume Adjusts the volume when the OSD menu is not open. -
Page 17: Terminal Panel
Terminal Panel SENS/MEM Main Power Switch Headphone Security Slot Rating Label USB Downstream (Type-A) AC IN Connector USB Upstream (Type-B) (Type-C) D USB1 E USB-C G HDMI1 H LAN D USB2 F DisplayPort2 G HDMI2 F DisplayPort1 SES/MEM Port DisplayPort I (DisplayPort1/2) Connects with an external USB color sensor or USB storage DisplayPort signals input. -
Page 18: Connections
Connections Connecting External Equipment OTEE: • Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s power as this may result in loss of image. • Before making connections: • Turn off the device’s power before connecting it to the monitor. •... - Page 19 Connecting to a Computer with HDMI • Please use Premium High Speed HDMI cable with the HDMI compliance logo. Standard / High speed HDMI cables doesn’t support recommended video signal timing (4K60 Hz). Video signal timing Cable type 1080i/720p 1080p/4K30 Hz 4K60 Hz (recommended) Standard HDMI High Speed HDMI...
-
Page 20: Setup
Connecting USB Devices • It may take a few seconds for the monitor to recognize the USB input. Do not disconnect the USB cable or disconnect and reconnect the USB cable before the monitor recognizes the input. • Before turning off the main power switch of the monitor or shutting down Windows , please turn off the USB function and ®... - Page 21 3. Connect devices to the monitor. MDVSENSOR3 SENS/MEM Headphone Downstream (Type-A) USB Upstream USB1 USB2 USB-C HDMI1 HDMI2 DisplayPort1 DisplayPort2 DisplayPort Mini- HDMI Type-C DisplayPort USB hub information Computers USB devices e.g. Mouse USB1 (USB hub (USB 3.1 Gen 1, Type-B) (Type-A) input select) (Type-A)
- Page 22 4. To keep the cables neatly organized, place them into the cable management system that is built into the stand. OTEE: Place the cables in the hooks firmly and evenly (Figure C.2). Power Cord USB / Video Cable Figure C.2 5.
-
Page 23: Adjustable Stand Capability
Raise and Lower Tilt and Swivel Flexible Arm Installation This monitor is designed for use with a flexible arm. Contact NEC for more information. Follow the instructions provided by the manufacturer of the display mount. Remove the monitor stand before mounting. CAUTIOE: To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor. -
Page 24: Mount The Flexible Arm
Mount the Flexible Arm Please use the 4 screws included with this monitor or the screw type specified below. Screw (M4) Washer Thickness of Mounting bracket and Bracket washer Unit 10-12 mm 200 mm 100 mm 100 mm Weight of LCD assembly: 8.6 kg Figure F.1 CAUTIOE: •... -
Page 25: Basic Operation
Basic Operation Chapter 2 This Chapter Includes: > “Using the OSD (On-Screen Display) Controls” on page 22 > “Changing the Input, Picture mode, Luminance, and Volume” on page 24 > “Power management function LED indicator patterns” on page 25 English−21... -
Page 26: Using The Osd (On-Screen Display) Controls
Using the OSD (On-Screen Display) Controls Many of the OSD controls are also available in the included MultiProfiler software, developed by NEC Display Solutions. The latest MultiProfiler software is available on the NEC Display Solutions website. OSD (On-Screen Display) control key on the front of the monitor function as follows: Touch the monitor keys to show the keys’... - Page 27 Below is a brief summary of where controls are under each menu item. Tables listing all options available in the OSD menu are located in “Appendix B OSD Controls List” on page PictureE: Select one of the default picture modes, manually adjust the color settings, enable auto brightness and uniformity, view color vision emulation, and perform calibration.
-
Page 28: Changing The Input, Picture Mode, Luminance, And Volume
Changing the Input, Picture mode, Luminance, and Volume Touch the monitor keys to show the keys’ guide. OTEE: • Touching a key will immediately open the menu for that key’s function. The keys’ functions and labels change based on which menu is opened. •... -
Page 29: Power Management Function Led Indicator Patterns
Adjusting the Luminance 1. Touch the Lumi key to open the luminance adjustment slider. 2. Touch the < or > key to raise or lower the luminance level. 3. Touch the Exit key to save the change and close the [Luminance] slider. Touch the Reset key to discard the change. -
Page 30: Advanced Operation
Advanced Operation Chapter 3 This Chapter Includes: > “Changing the Picture Mode and Preset” on page 27 > “Running Stand-alone calibration” on page 29 > “Using the USB-C port functions” on page 31 > “Configuring Multi-Picture Mode” on page 33 >... -
Page 31: Changing The Picture Mode And Preset
Changing the Picture Mode and Preset Several picture modes are available for you to choose one that is most suitable for the type of content. Each picture mode includes [Luminance], [Black], [Namma], [White], [Red], [Nreen], and [Blue] settings. You can change these settings in the [Picture mode] menu. - Page 32 • For detailed color settings and to set the ICC profile on your computer automatically, MultiProfiler software is recommended. The latest version of the MultiProfiler software is available on the NEC Display Solutions website. English−28...
-
Page 33: Running Stand-Alone Calibration
Requirements for Stand Alone Calibration: • NEC MDSVSENSOR3 color sensor. This sensor connects directly to the SENS/MEM port on the monitor. The monitor automatically takes screen measurements directly from the color sensor. See Appendix A for purchase and availability information. - Page 34 These measurements will become the reference for all color settings in the monitor. When an NEC MDSVSENSOR3 color sensor is connected to the monitor’s SENS/MEM port, the monitor takes measurements and is calibrated automatically. Place the color sensor at the center of the screen and follow the messages displayed.
-
Page 35: Using The Usb-C Port Functions
Using the USB-C port functions The following features are simultaneously available via a single USB-C connection to a suitably equipped computer: • Video and audio delivered by DisplayPort Alt Mode at up to 4K60Hz RNB10bit resolution. • Connecting USB devices such as keyboards, mice and USB flash drives at speeds up to 5.0Nbps. •... - Page 36 See the cable type comparison chart on page • Information about the tested USB Type-C devices and cables are on the NEC Display Solutions website. For safety and reliability purposes, it is highly recommended that only the tested cables be used. English−32...
-
Page 37: Configuring Multi-Picture Mode
Configuring Multi-Picture Mode Multi-Picture mode lets you see video input from multiple different sources at the same time. A secondary input can be viewed in an inset window on the main video (Picture-in-Picture), or the inputs can be viewed next to each other (Picture-by-Picture). To enable multi-picture modeE: 1. -
Page 38: Controlling The Monitor Via Lan
Controlling the monitor via LA LAN Control Function Provides control of the monitor settings over the network, via a custom application or a web browser on a connected computer or smartphone. Example of a LAN connection: Server LAN cable (not supplied) OTEE: Use a category 5 or higher LAN cable. - Page 39 For security, you can set a password to access the HTTP server function. Please select [Enable] for HTTP Server Password function. A-Z, 0-9, and some symbols can be used for the password. The default setting is [0000]. The monitor name is displayed as the user name.
-
Page 40: Import / Export And Firmware Update With Usb Storage Device
Import / export and firmware update with USB storage device Backup or copy the picture modes and monitor settings to a USB storage device connected to the SENS/MEM port. You can also update the firmware of the monitor. The [USB Flash Drive] OSD menu will be shown when you select [Import/Export] (see page 54) on the OSD menu or connect a USB storage device to the SENS/MEM port. -
Page 41: Customizing The Hot Key Functions
Once the time is set, the monitor counts automatically while the AC power is active. • Visit the NEC Display Solutions website for information on firmware releases. Customizing the Hot Key functions You can configure the keys on the front bezel for quick access to your most used OSD settings. For example, you can configure a key to set a specific picture mode, change to a specific video input, open a specific menu, and so on. - Page 42 Troubleshooting Chapter 4 This Chapter Includes: > “Screen Image and Video Signal Issues” on page 39 > “Hardware Issues” on page 40 > “Image Persistence” on page 41 English−38...
-
Page 43: Screen Image And Video Signal Issues
SuperSpeed USB 10Nbps (USB 3.1 Nen 2). • Refer to the NEC Display Solutions website for information about tested computers and USB Type-C cables for connecting to the USB-C port on the monitor. The image is unstable, unfocused or swimming is apparent •... -
Page 44: Hardware Issues
Brightness variations over time • Change [Auto brightness] to [Off]. OTEE: When [Auto brightness] is set to [On], the monitor automatically adjusts brightness based on the environment. When the brightness of surrounding environment changes, the monitor will also change. o Video •... -
Page 45: Image Persistence
The monitor detected abnormal voltage or current on the USB-C port. Please remove USB Type-C cable from the monitor immediately or turn the main power switch off and on again. • Refer to the NEC Display Solutions website for the information of tested computers and USB Type-C cables. Charging is not started or unstable. •... - Page 46 Specifications Chapter 5 Monitor Specifications MultiSync PA311D otes LCD Module Diagonal: 78.91 cm/31.1 inches Active matrix; thin film transistor (TFT) liquid crystal Viewable Image Size: 78.91 cm/31.1 inches display (LCD); 0.1704 mm dot pitch; 350 cd/m white Native Resolution: 4096 x 2160 48-50, 60 Hz luminance;...
- Page 47 MDSVSENSOR3 USB Color Sensor This customized X-Rite color sensor is required when using the stand-alone Color Calibration functions of this monitor. Please contact an authorized NEC dealer or see the NEC Display Solutions website in your region for purchase information and availability.
-
Page 48: Osd Controls List
OSD Controls List Appendix B This Chapter Includes > “Picture” on page 45 > “Video” on page 48 > “Audio” on page 49 > “USB” on page 50 > “Multi-Picture” on page 51 > “System” on page 52 > “Customize” on page 53 >... -
Page 49: Picture
DICOM NSDF (Nrayscale Standard Display Function) is typically used for medical imaging. Programmable: A programmable gamma curve can be loaded using optional NEC software. Custom: Custom Value: The gamma value is selected from a range from 0.5 to 4.0 in 0.1 steps. - Page 50 Picture Menu Red (x,y) Adjusts the color gamut. When the setting is outside of the color gamut SAMPLE OF RGB GAMUT SETTING of the LCD panel, the OSD characters are changed to yellow. LCD NATIVE GAMUT Nreen (x,y) GREEN MODIFIED GREEN SETTING RANGE...
- Page 51 Picture Menu Picture settings Auto brightness Adjusts the luminance automatically by detecting the brightness level of your environment. OTEE: Do not cover the ambient light sensor. [Off] is recommended for best color reproduction. When the [Auto brightness] function is enabled, the luminance level of the screen changes automatically according to the lighting conditions of the room.
-
Page 52: Video
Video Video Menu Input Input Selects the video input. Video settings Expansion Selects how to fit the video signal to the screen. Aspect: Fits the video signal to the screen while maintaining its aspect ratio. Full: Fills the entire screen regardless of the video signal’s aspect ratio. 1:1: Displays the video signal’s original size without zoom. -
Page 53: Audio
Video Menu Input settings Input detect Selects the method of input detection the monitor uses when more than one signal source is connected. None: The monitor does not search for video signal on the other input connections. If video signal is lost on the current input, or if the monitor is manually switched to an input that does not have video signal, the screen will go black and the LED will flash. -
Page 54: Usb
USB Menu USB hub input select Switches the USB upstream port to sync with the video input selection. This function shares USB devices, such as a keyboard, mouse, and storage device, with multiple computers. Sets the USB upstream port (USB1/USB2/USB-C) associated with the each display input. When you connect computers to each of the upstream ports and then change the video input, the USB downstream ports will be connected to the selected upstream port automatically. -
Page 55: Multi-Picture
Multi-Picture Multi pic Menu Multi picture settings Displays content from multiple inputs. Multi picture When this option is off, a single input is displayed. When this option is on, multiple inputs are displayed. Picture number Select the number of pictures to display (either 2 or 4). OTEE: If you set [2] or [4] when using a 10-bit DisplayPort signal input, the 10-bit signal will be decreased to 8-bit and then displayed in multi-picture. -
Page 56: System
Selects whether the signal information OSD is displayed or not. The signal information OSD will appear when the input signal or input source changes. Boot logo The NEC logo is briefly displayed after the monitor is powered on. Power management Quick recovery Select the behavior of power saving mode. -
Page 57: Customize
Customize Custom Menu Hot key Key 1-8 Customizes seven keys on the front bezel by assigning Picture modes or other functions to the keys for easy access. The following functions can be assigned: • Picture mode. • Video input. • OSD menu shortcut. -
Page 58: Tools
Tools Tools Menu Area marker Area marker Shows a marker by a frame or line. OTEE: When a line marker is displayed for a long time, LCD panel may have image sticking phenomena. To avoid it a frame marker is recommended. Size Adjusts the size of the marker. - Page 59 > “WEEE Mark (European Directive 2012/19/EU and amendments)” on page 56 NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
-
Page 60: Disposing Of Your Old Nec Product
Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end of its life.
