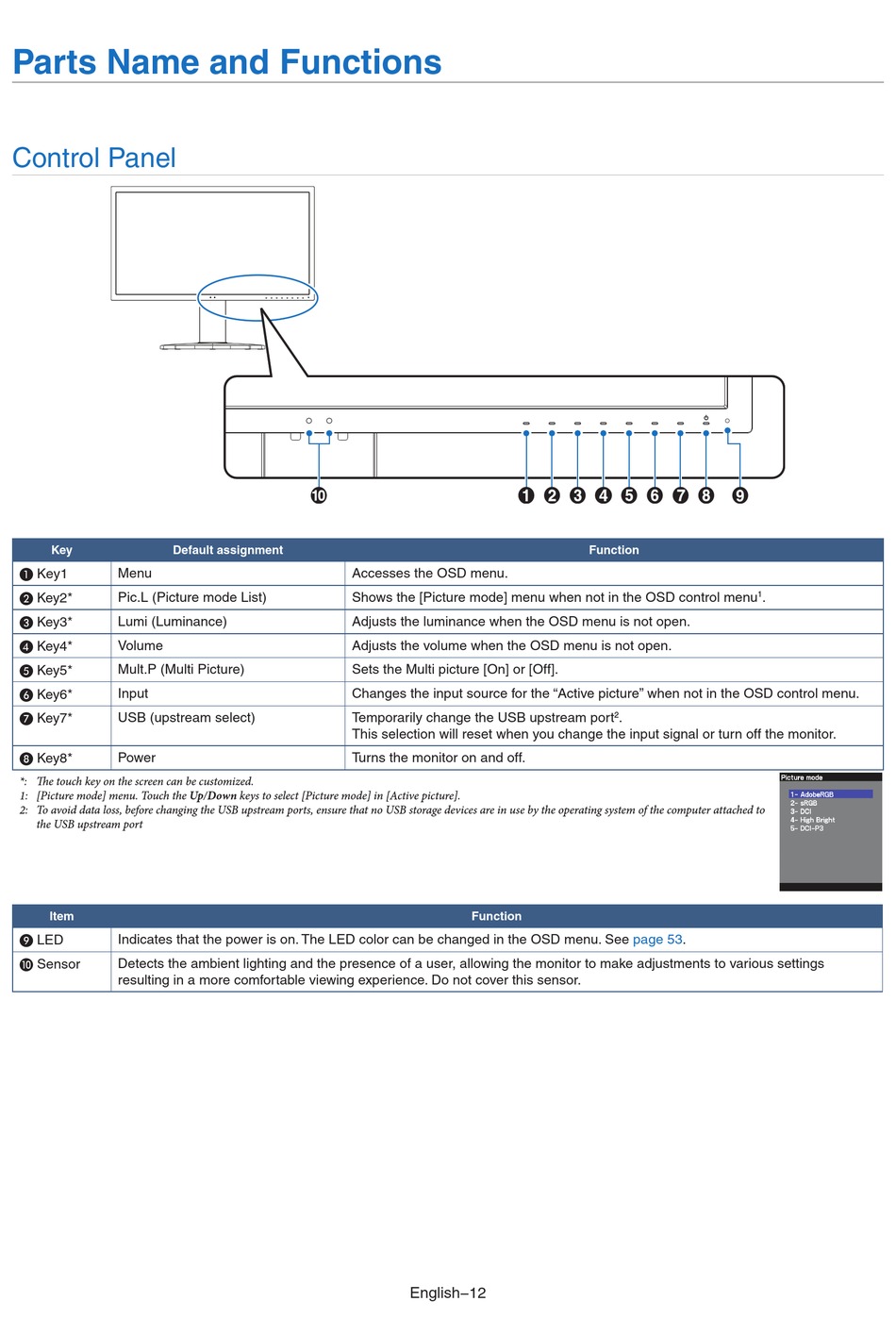

Parts
ame and Functions

Control Panel

Key Default assignment
A Key1 Menu
Pic.L (Picture mode List)
B Key2*
Lumi (Luminance)
C Key3*
Volume
D Key4*
Mult.P (Multi Picture)
E Key5*
F Key6* Input
USB (upstream select)
G Key7*
H Key8* Power
*: The touch key on the screen can be customized.
1: [Picture mode] menu. Touch the Up/Down keys to select [Picture mode] in [Active picture].
2: To avoid data loss, before changing the USB upstream ports, ensure that no USB storage devices are in use by the operating system of the computer attached to
the USB upstream port
Item
I LED Indicates that the power is on. The LED color can be changed in the OSD menu. See
Detects the ambient lighting and the presence of a user, allowing the monitor to make adjustments to various settings
J Sensor
resulting in a more comfortable viewing experience. Do not cover this sensor.
Accesses the OSD menu.
Shows the [Picture mode] menu when not in the OSD control menu
Adjusts the luminance when the OSD menu is not open.
Adjusts the volume when the OSD menu is not open.
Sets the Multi picture [On] or [Off].
Changes the input source for the "Active picture" when not in the OSD control menu.
Temporarily change the USB upstream port
This selection will reset when you change the input signal or turn off the monitor.
Turns the monitor on and off.
Function
English−12
Function
1
.
2
page 53.
.
