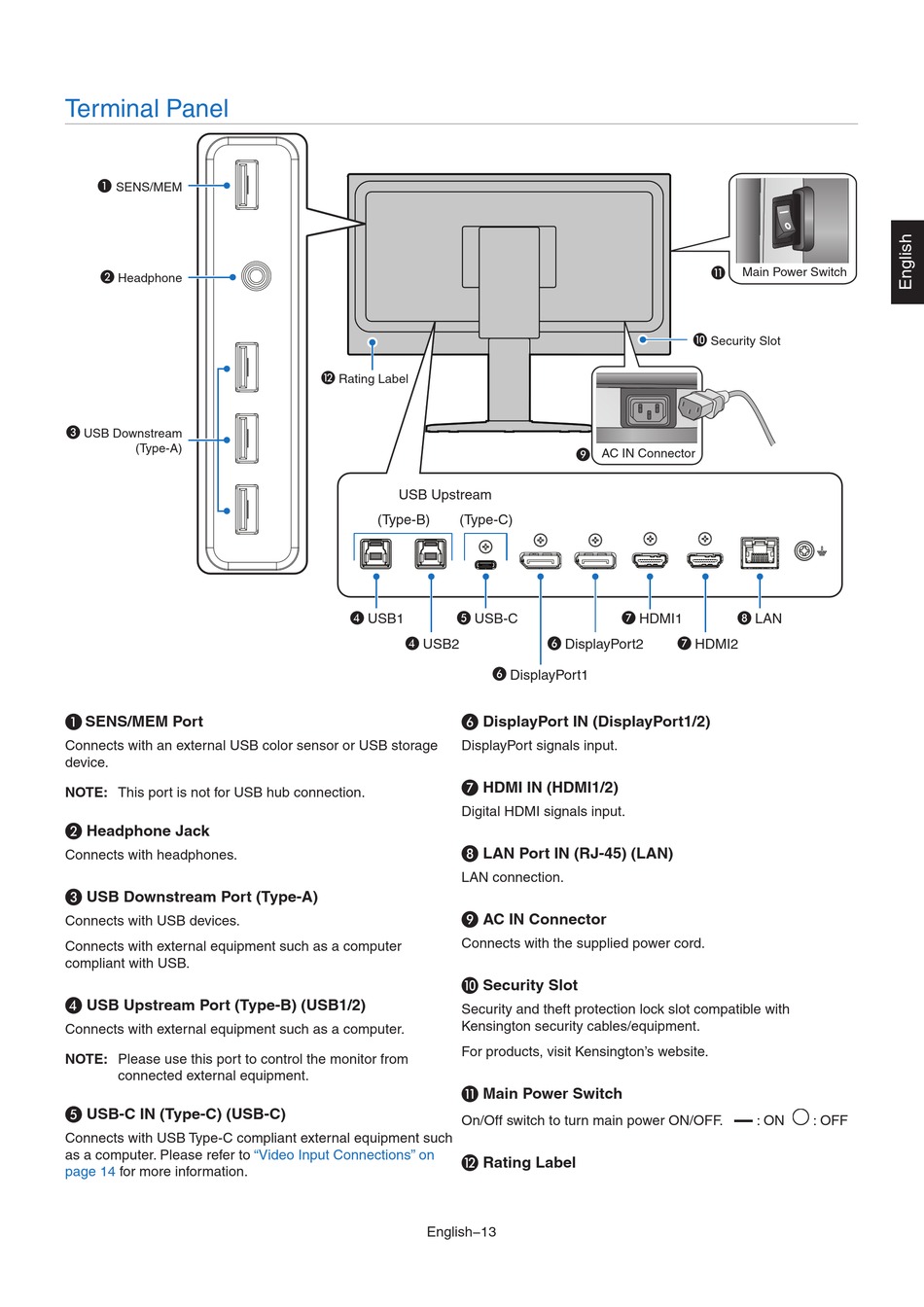

Terminal Panel

A
SENS/MEM
B
Headphone
C
USB Downstream
(Type-A)
SE
S/MEM Port
A
Connects with an external USB color sensor or USB storage
device.



OTEE: This port is not for USB hub connection.
Headphone Jack
B
Connects with headphones.
USB Downstream Port (Type-A)
C
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
USB Upstream Port (Type-B) (USB1/2)
D
Connects with external equipment such as a computer.

OTEE:

Please use this port to control the monitor from
connected external equipment.
USB-C I
(Type-C) (USB-C)
E
Connects with USB Type-C compliant external equipment such
as a computer. Please refer to
page 14 for more information.
L
Rating Label
USB Upstream
(Type-B)
D USB1
D USB2
"Video Input Connections" on
English−13
AC IN Connector
I
(Type-C)
E USB-C G HDMI1
F DisplayPort2
F DisplayPort1
DisplayPort I
(DisplayPort1/2)
F
DisplayPort signals input.
HDMI I
(HDMI1/2)
G
Digital HDMI signals input.
LA
Port I
(RJ-45) (LA
)
H
LAN connection.
AC I
Connector
I
Connects with the supplied power cord.
Security Slot
J
Security and theft protection lock slot compatible with
Kensington security cables/equipment.
For products, visit Kensington's website.
Main Power Switch
K
On/Off switch to turn main power ON/OFF.
Rating Label
L
Main Power Switch
K
J
Security Slot
H LAN
G HDMI2
: ON : OFF
