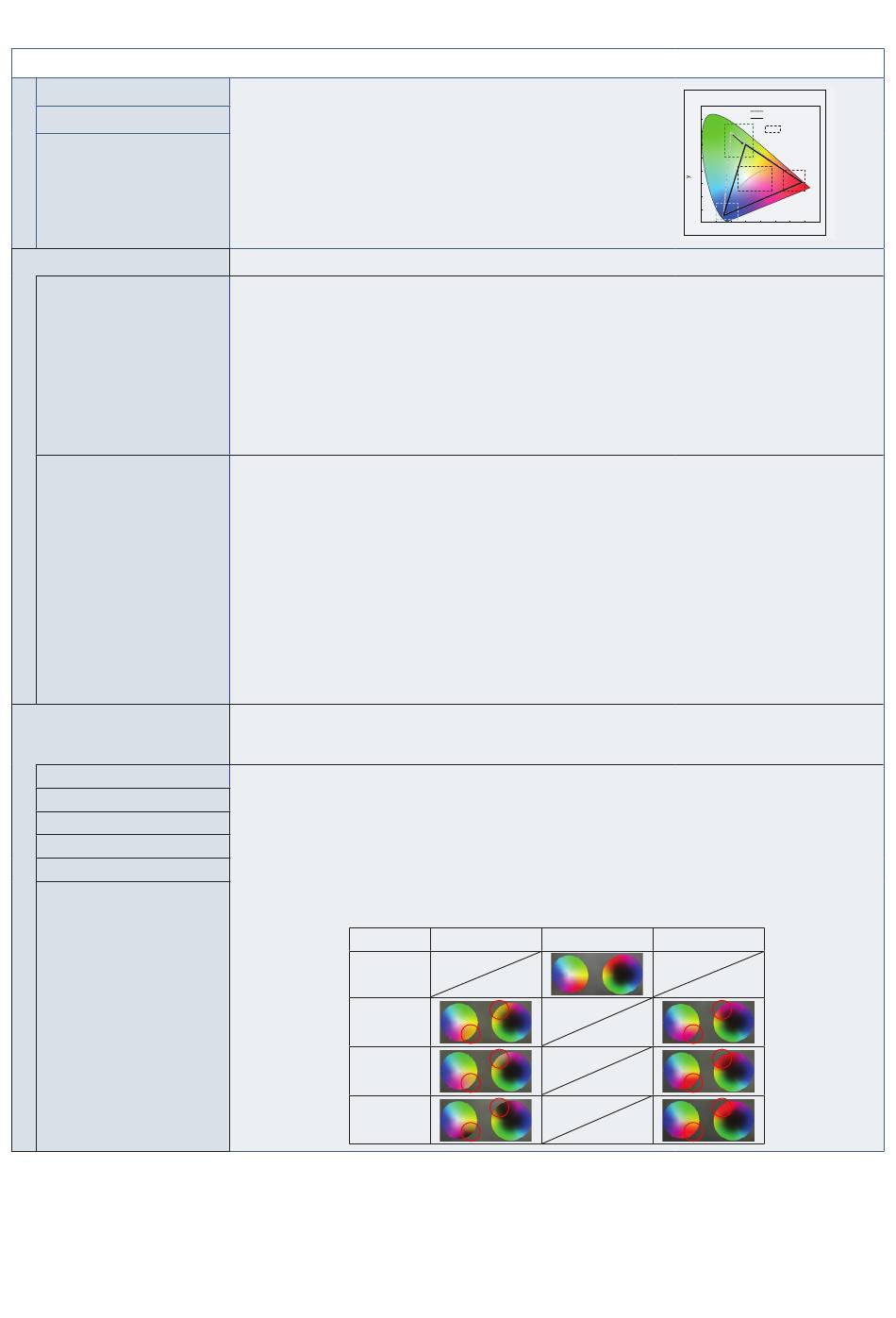

Picture Menu
Red (x,y)
Nreen (x,y)
Blue (x,y)
Emulation
*1
3D LUT Emulation
Color vision emulation
6 Axis color trim
*1
Red (Hue/Sat./Offset)
Yellow (Hue/Sat./Offset)
Nreen (Hue/Sat./Offset)
Cyan (Hue/Sat./Offset)
Blue (Hue/Sat./Offset)
Magenta (Hue/Sat./Offset)
Adjusts the color gamut. When the setting is outside of the color gamut
of the LCD panel, the OSD characters are changed to yellow.
The 3D LUT (Look Up Table) is a three-dimensional table that maps colors into different color spaces. This
function can apply your custom 3D LUT (Look Up Table) data to the video signal.
For example, this allows print previews or cinematic or color grading effects to be performed within the
monitor itself.
This feature is used with supporting software, which also uploads the 3D LUTs to the monitor.
ON:
Applies the imported 3D LUT data to video signal.
OFF:
Does not apply the imported 3D LUT data.
Compare:
In this mode, colors that lie outside the boundaries of the 3D LUT are shown in gray. It is
useful for determining out of gamut colors.
Previews various typical human vision deficiencies and is useful for evaluating how people who have such
deficiencies will perceive colors.
This preview is available in types:
•
P (Protanopia)
•
D (Deuteranopia)
•
T (Tritanopia)
Nrayscale can be used for evaluating contrast legibility.
OTEE:
Depending on the vision of the user, including those with color vision deficiency, there will be
a variation in how the screen's color is seen and experienced. A simulation is used to illustrate
the view of those with a color vision deficiency. It is not their actual view. The simulation is a
reproduction of those with a strong color vision mode of type P, type D or type T. People with a
slight color vision deficiency will experience little to no difference compared to those with normal
color vision.
With these controls, the standard color circle is divided into 6 separate ranges/areas: Reds, Yellows,
Nreens, Cyans, Blues, and Magentas. Each range can be individually adjusted in Hue, Saturation, and
Offset (Brightness) for specific matching purposes. Neutral colors (grays) will not be impacted.
Hue:
Changes the actual color within its range on the color wheel without changing the
saturation and offset. For example, the Red color range shifts reds towards Yellow or
Magenta, the Yellow color range shifts yellows towards Red or Nreen, and so on.
Sat. (Saturation): Changes the intensity of the color range without changing the hue and offset.
Offset:
Changes the brightness of the color range without changing the hue and saturation.
e.g.: This is the color changes when Red color set to minimum value and maximum value at Hue/Sat./
Offset.
Default
HUE
SAT.
OFFSET
Minimum value
English−46
SAMPLE OF RGB GAMUT SETTING
0.9
0.8
GREEN
0.7
0.6
0.5
WHITE
0.4
0.3
0.2
0.1
BLUE
0
0
0.1
0.2
0.3
0.4
x
0
Maximum value
LCD NATIVE GAMUT
GREEN MODIFIED
SETTING
RANGE
RED
0.5
0.6
0.7
0.8
