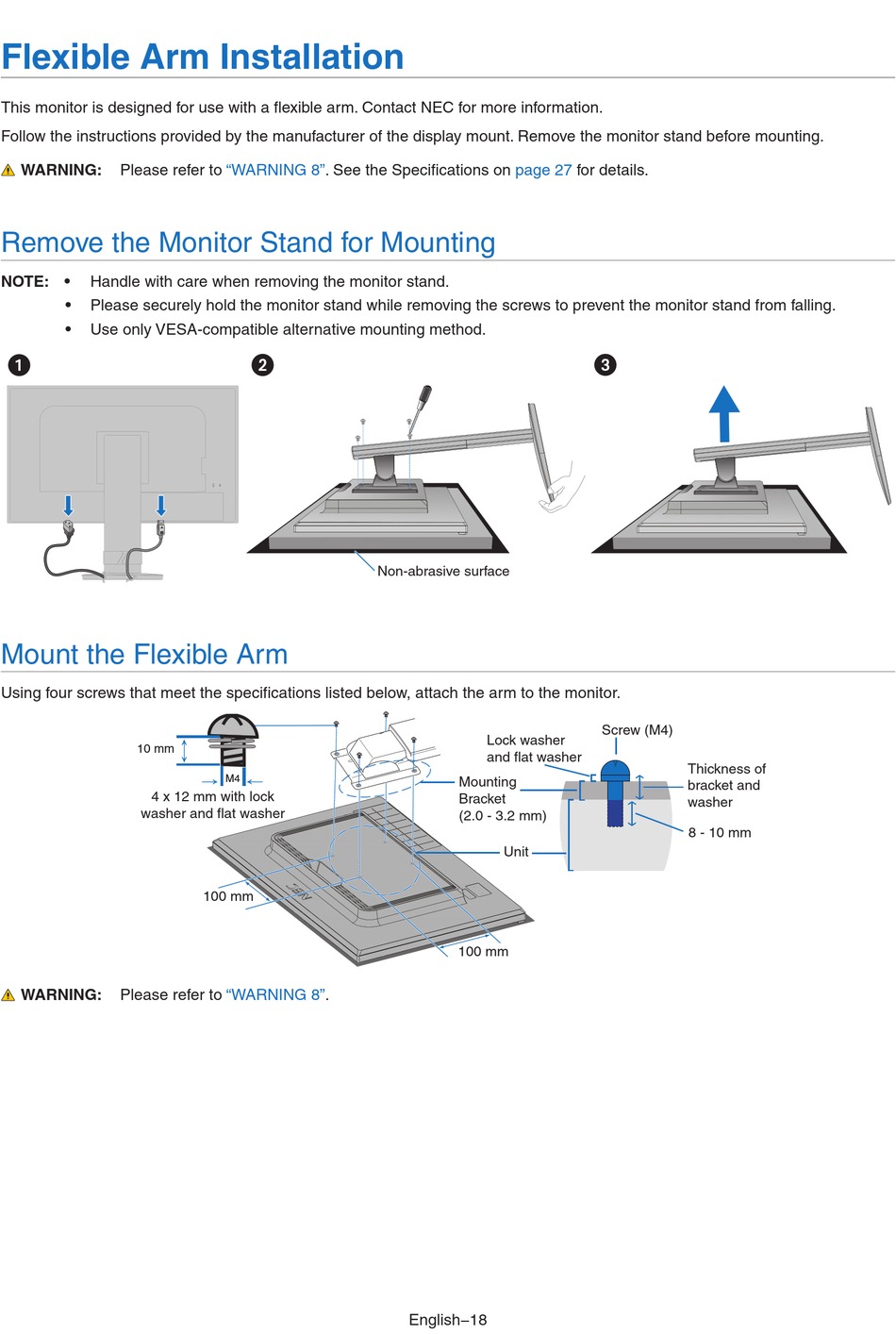

Flexible Arm Installation

This monitor is designed for use with a flexible arm. Contact NEC for more information.
Follow the instructions provided by the manufacturer of the display mount. Remove the monitor stand before mounting.

AROIONN:
Please refer to

Remove the Monitor Stand for Mounting


OOTEN:  •
Handle with care when removing the monitor stand.
 •
Please securely hold the monitor stand while removing the screws to prevent the monitor stand from falling.
 •
Use only VESA-compatible alternative mounting method.
1

Mount the Flexible Arm

Using four screws that meet the specifications listed below, attach the arm to the monitor.
10 mm
4 x 12 mm with lock
washer and flat washer

AROIONN:
Please refer to
"WARNING
8". See the Specifications on
2
M4
100 mm
"WARNING
8".
page 27
Non-abrasive surface
Lock washer
and flat washer
Mounting
Bracket
(2.0 - 3.2 mm)
Unit
100 mm
English−18
for details.
3
Screw (M4)
Thickness of
bracket and
washer
8 - 10 mm
