Setting Pts - Command access PD15-UL-M Instructions Manual

3.

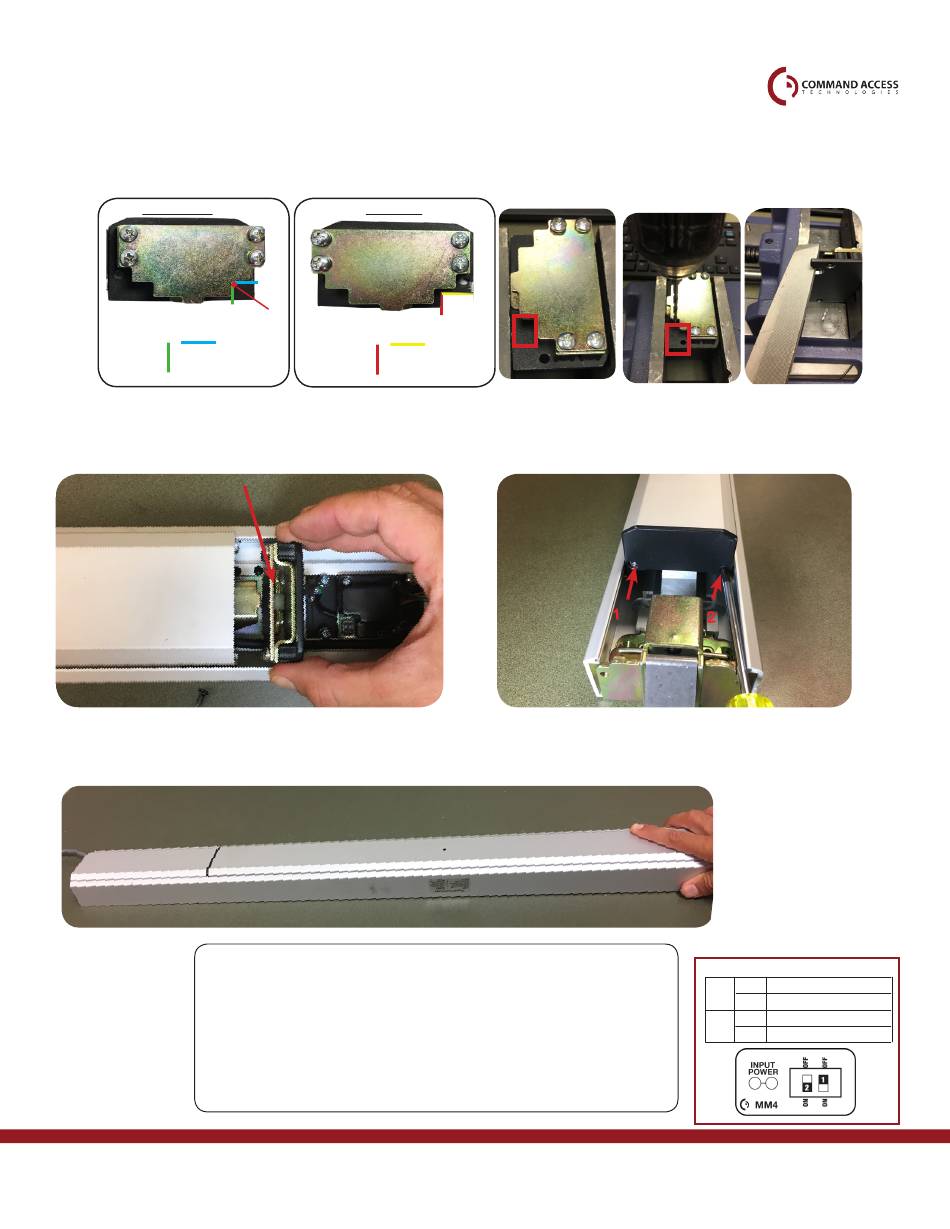

Turn over BACK push pad end cap over and start a pilot hole beneath the bottom right hand corner
(see measurements below). Use the gold bracket as a guide. Once your hole is drilled use your
preferred method to clear out the remaining debris and file to clean up the edges.
BEFORE
PILOT HOLE
PILOT HOLE IN INCHES (")
1/2"
1/4"
4.
1. Slide BACK push pad end cap into channel before re-installing to push pad.
2. Re-install (2) screws on BACK & FRONT push pad end caps.
5.
1. Slide filler plates on and plug into power.
2. Set "Push-to-Set" and once you found the correct location, turn PTS switch to OFF position.
Step 1-
Select your preferred torque mode (ships in standard torque) Press the device push pad to the
desired setting. (Recommend to fully depress and release 5%, giving the device room for
changing door conditions.)
Step 2-
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 3-
Continue to keep pad depressed, the device will beep 6 times. After the beeps have
stopped, release the pad and now the adjustment is complete. If not to your liking repeat
the three
Step 4-
Once you found the correct location, flip the dip switches to off to lock programming.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
AFTER
AMOUNT REMOVED IN INCHES (")
5/8"
5/16"

Setting PTS

steps.
MM4 Switches
off
STANDARD TORQUE
1
on
HIGH TORQUE
on PTS PROGRAMMING ON
2
off
PTS PROGRAMMING LOCKED
