Command access PD15-UL-M Instructions Manual page 6

12.

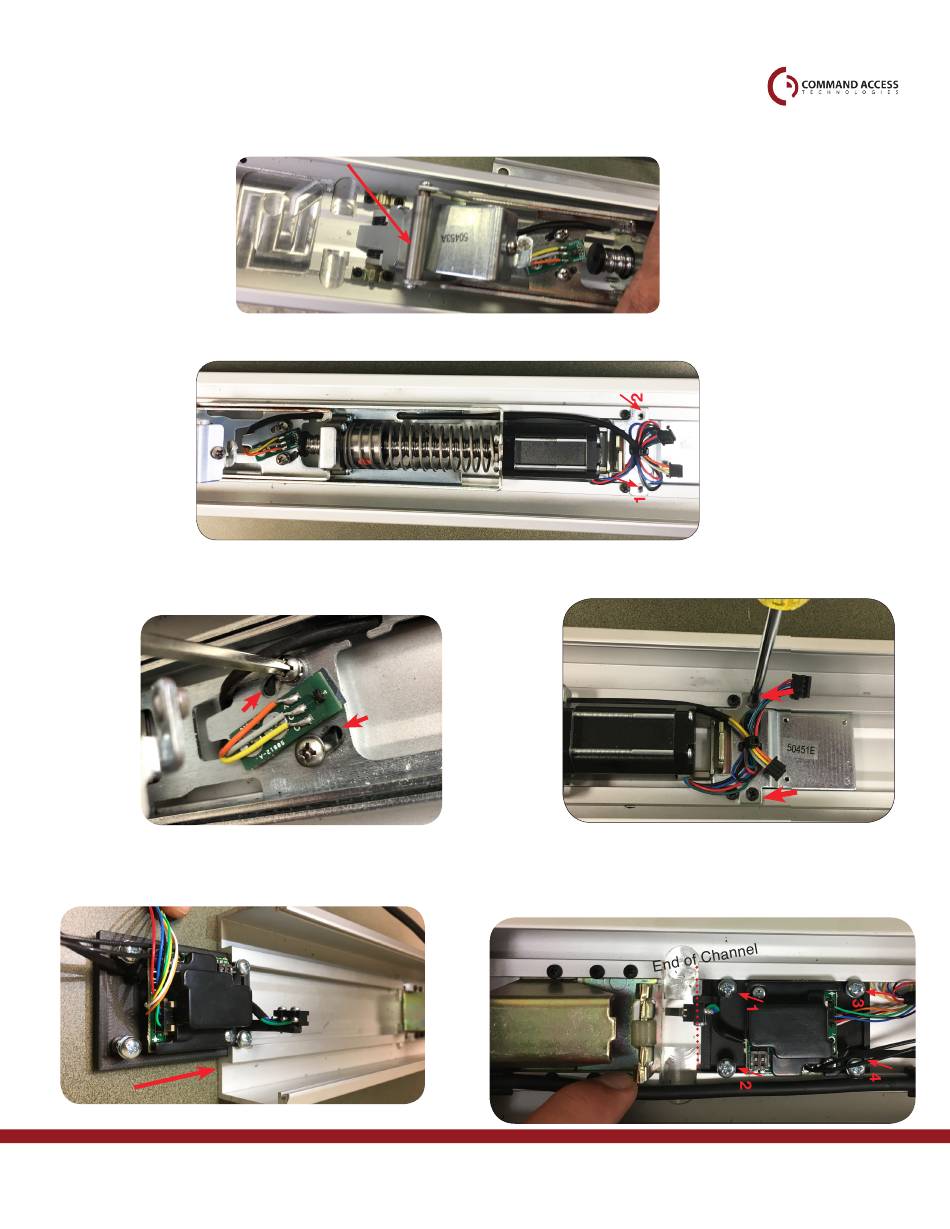

Next, drop the motor mount in with the front over the front activating bracket.
13.
Line up the back with the (2) available screw holes and the bracket securing the motor mount.
14.
Push screws to correct position (pictured) to straighten
scissor bracket and secure front end of the motor kit by
tightening (2) screws.
17.
Slide MM4 module into housing's channel on the
back of the device.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
16.
Tighten back end of the module by re-
installing (2) screws from dogging bracket.
Slide all the way up until the MM4 bracket is
18.
almost flush with end of the channel. Tighten all
(4) screws here to secure MM4
P
ush Pad
