1.0

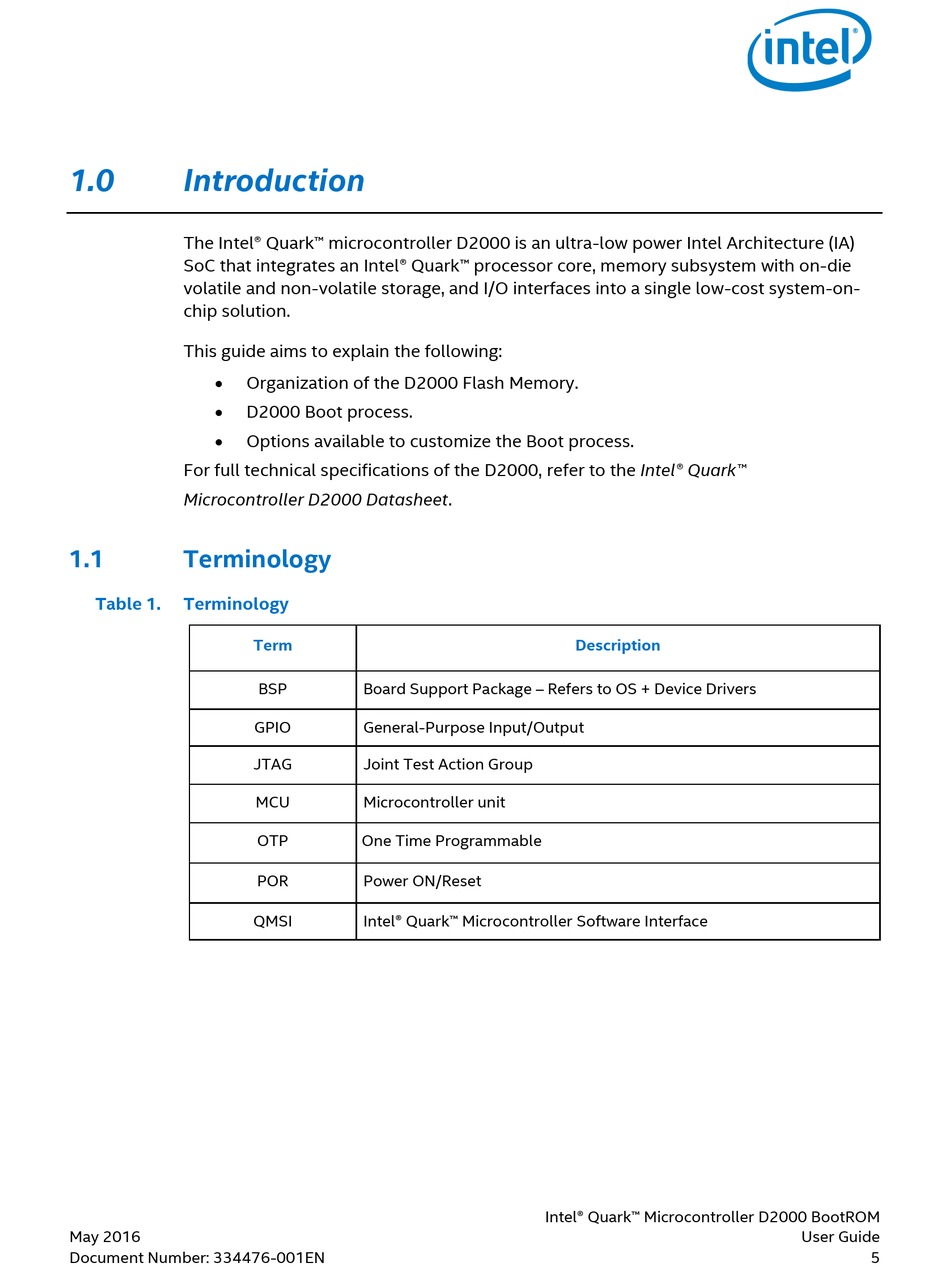

Introduction

The Intel® Quark™ microcontroller D2000 is an ultra-low power Intel Architecture (IA)
SoC that integrates an Intel® Quark™ processor core, memory subsystem with on-die
volatile and non-volatile storage, and I/O interfaces into a single low-cost system-on-
chip solution.
This guide aims to explain the following:
 Organization of the D2000 Flash Memory.

D2000 Boot process.
 Options available to customize the Boot process.
For full technical specifications of the D2000, refer to the Intel® Quark™
Microcontroller D2000 Datasheet.
1.1

Terminology

Table 1. Terminology
May 2016
Document Number: 334476-001EN
Term
BSP Board Support Package – Refers to OS + Device Drivers
GPIO General-Purpose Input/Output
JTAG Joint Test Action Group
MCU Microcontroller unit
OTP One Time Programmable
POR Power ON/Reset
QMSI Intel® Quark™ Microcontroller Software Interface
Description
Intel® Quark™ Microcontroller D2000 BootROM
User Guide
5
