- Page 1 Intel® Quark™ Microcontroller Developer Kit D2000 User Guide May 2017 Document Number: 333966-006EN...
- Page 2 No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document. All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications and roadmaps.
-
Page 3: Table Of Contents
Intel® Quark™ Microcontroller D2000 Development Platform Block Diagram ....... 7 Table 3. Third Party Board Components: Integrated Circuits ................8 Figure 2. Intel® Quark™ Microcontroller D2000 Development Platform Fab D Board Photo ..10 Table 5. Pin Mapping ..............................11 Tables Table 1. -
Page 4: August 2016
Updated Section 1.0 , Section 1.2 and Section 3.0 May 2016 Updated Section 1.0 and Section 2.0 April 2016 Booster Pack Pin Mapping added to Table 5. February 2016 Initial release § Intel® Quark™ Microcontroller Developer Kit D2000 User Guide May 2017 Document Number: 333966-006EN... -
Page 5: Introduction
Introduction This document describes Intel® Quark™ Microcontroller D2000 Development Platform including the board, the hardware contained, and the toolchain required for software development and debugging. The platform consists of a small form-factor board and includes flash storage, a 6-axis compass and accelerometer. A USB connection enables programming and debugging (JTAG). -
Page 6: Toolchain
For details on downloading and installing the toolchain, see Chapter 3.0, “Software and Tools”. This document focuses on using Intel® System Studio for Microcontrollers but it is not Note: mandatory. The Intel® Quark™ Microcontroller Software Interface BSP and standalone toolchain can be obtained from the Open Source repository at https://github.com/quark-mcu/qmsi. -
Page 7: Block Diagram
Block Diagram Figure 1. Intel® Quark™ Microcontroller D2000 Development Platform Block Diagram § Intel® Quark™ Microcontroller Developer Kit D2000 May 2017 User Guide Document Number: 333966-006EN... -
Page 8: Hardware
Hardware The Intel® Quark™ Microcontroller D2000 package is shipped as a 40-pin QFN component. Board Components The Intel® Quark™ Microcontroller D2000 Development Platform contains the following items: Main expansion options: “Arduino Uno” like SIL sockets (3.3V IO only) Chapter 2.2, “Arduino Shield Sockets Note”... -
Page 9: Arduino Shield Sockets Note
Arduino Shield Sockets Note The Intel® Quark™ Microcontroller D2000 Development Platform supports the familiar open standard Arduino Uno Rev 3.0 physical interface and is mechanically compatible with Uno Rev 3.0. It does not support the 6 pin ICSP Header. Each functional I/O can be configured to provide the same function that is supported on the Arduino Uno Rev 3.0 with the exception of the PWM capability, which can only... -
Page 10: Board Photo

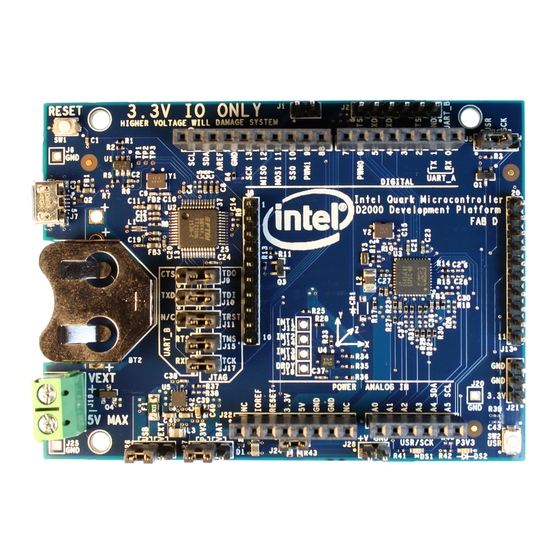

Board Photo Figure 2. Intel® Quark™ Microcontroller D2000 Development Platform Fab D Board Photo Board Jumpers 1. FTDI UART/JTAG* J12 and J13 Jumpers are installed for both JTAG and UART by default. To isolate the Intel® Quark™ Microcontroller D2000 from the FTDI FT232HL, remove all the sleeves from Jumpers J9, J10, J11, J15, and J17. -
Page 11: Board Pinouts
UART_TXD/DIO_01 UART_TXD/DIO_01 GPIO_12 ADC/COMP12 UART_A_TXD J8_4 J4_3 DIO_02 DIO_02 GPIO_11 ADC/COMP11 SPI_S_SCS J13_7 J4_4 DIO_03 DIO_03 GPIO_10 ADC/COMP10 SPI_S_SDOUT J13_1 J4_5 DIO_04 DIO_04 GPIO_5 ADC/COMP5 SYS_CLK_OUT J8_8 Intel® Quark™ Microcontroller Developer Kit D2000 May 2017 User Guide Document Number: 333966-006EN... - Page 12 UART_A_RTS J8_2 J23_4 AIN_03 AIN_03 GPIO_15 ADC/COMP15 UART_A_CTS J23_5 AIN_04 / SDA SDA/AIN_04/DIO_1 GPIO_7 ADC/COMP7 I2C_SDA J8_10 J23_6 AIN_05 / SCL SCL/AIN_05/DIO_1 GPIO_6 ADC/COMP6 I2C_SCL J8_9 § Intel® Quark™ Microcontroller Developer Kit D2000 User Guide May 2017 Document Number: 333966-006EN...
-
Page 13: Software And Tools
Software and Tools Intel® System Studio for Microcontrollers Intel® System Studio 2016 for Microcontrollers is an Eclipse*-integrated tool set for developing, optimizing, and debugging systems and applications for the Intel® Quark™ Microcontroller D2000 and Intel® Quark™ SE Microcontroller C1000 targets. -
Page 14: Getting Started With Intel® System Studio For Microcontrollers
Once the IDE is launched follow the instructions on the ‘Getting Started’ page to build and deploy a project. 3.1.2 Release Notes Intel® System Studio for Microcontrollers 2016 Release Notes. The release notes contain all system requirements and prerequisites. Known issues and workarounds are also included. Intel® System Studio for Microcontrollers 2016... - Page 15 Intel® System Studio 2016 for Microcontrollers User and Distributed in toolchain Reference Guide NOTE: The Intel® System Studio 2016 for Microcontrollers User and Reference Guide is a separate document and should be followed at this point. Intel® Quark™ Microcontroller Developer Kit D2000...
-
Page 16: Bsp Release Note
BSP Release Note The Intel® Quark™ Microcontroller Software Interface BSP Release Notes contain release-specific information, including: Notes about the Board Support Package Installation instructions Details on provided utilities and applications Known issues and workarounds. Supported features of the release. - Page 17 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Intel MTFLD.CRBD.AL...
