CHAPTER 1
GENERAL DESCRIPTION
1. 1 Introduction
This chapter provides a basic introduction to the physical and functional char-
acteristics of the Series IV Development System (hereafter referred to as the
Series IV or just the system). It contains a physical and functional description
of the system and its major subassemblies, and a summary of the physical, func-
tional and environmental specifications. It also includes information on available
options, typical system configurations and power supply loading.
1.2 Physical Description
The physical system consists of two major assemblies: the mainframe and the
keyboard (see Figure 1-1).
1.2. 1 Mainframe
The mainframe contains a CRT subsystem, either a
5~-inch
Winchester Disk
Drive and a
5~-inch
floppy disk drive or dual 5v..-inch floppy disk drives, a
multiple-output power supply, an auxiliary 5 volt power supply, a 10-s10t card
cage and three cooling fans. These subassemblies are contained in a high-impact
COVER RETAINING
THUMBSCREW (1)
(BOTTOM-LEFT
OF UNIT)
BOARD
ACCESS
4-----
DOOR
ACCESS
TO BOARDS
IN SLOTS
7 THRU 10

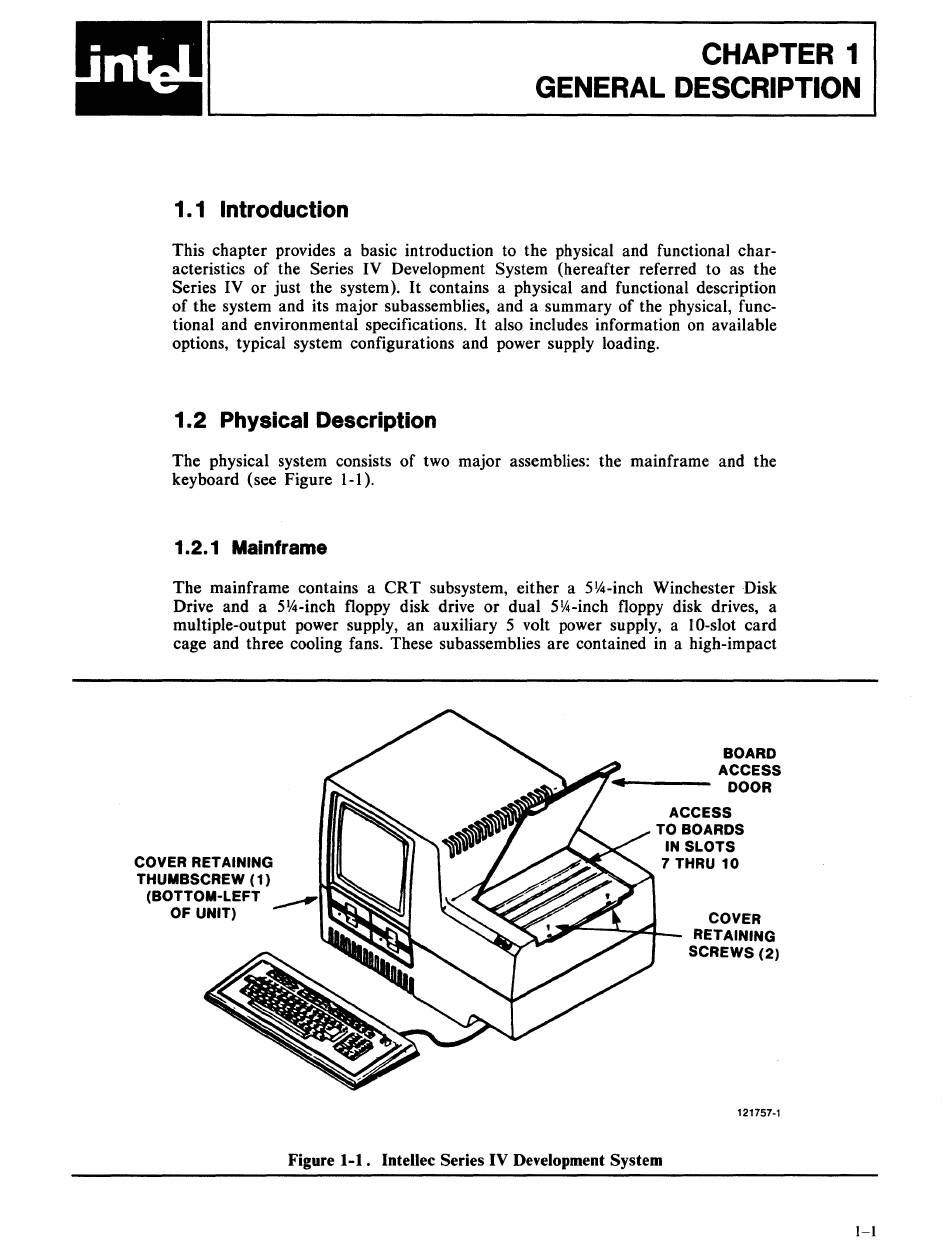

Figure 1-1. Intellec Series IV Development System
COVER
RETAINING
SCREWS (2)
121757-1
1-1
