UM1907
7

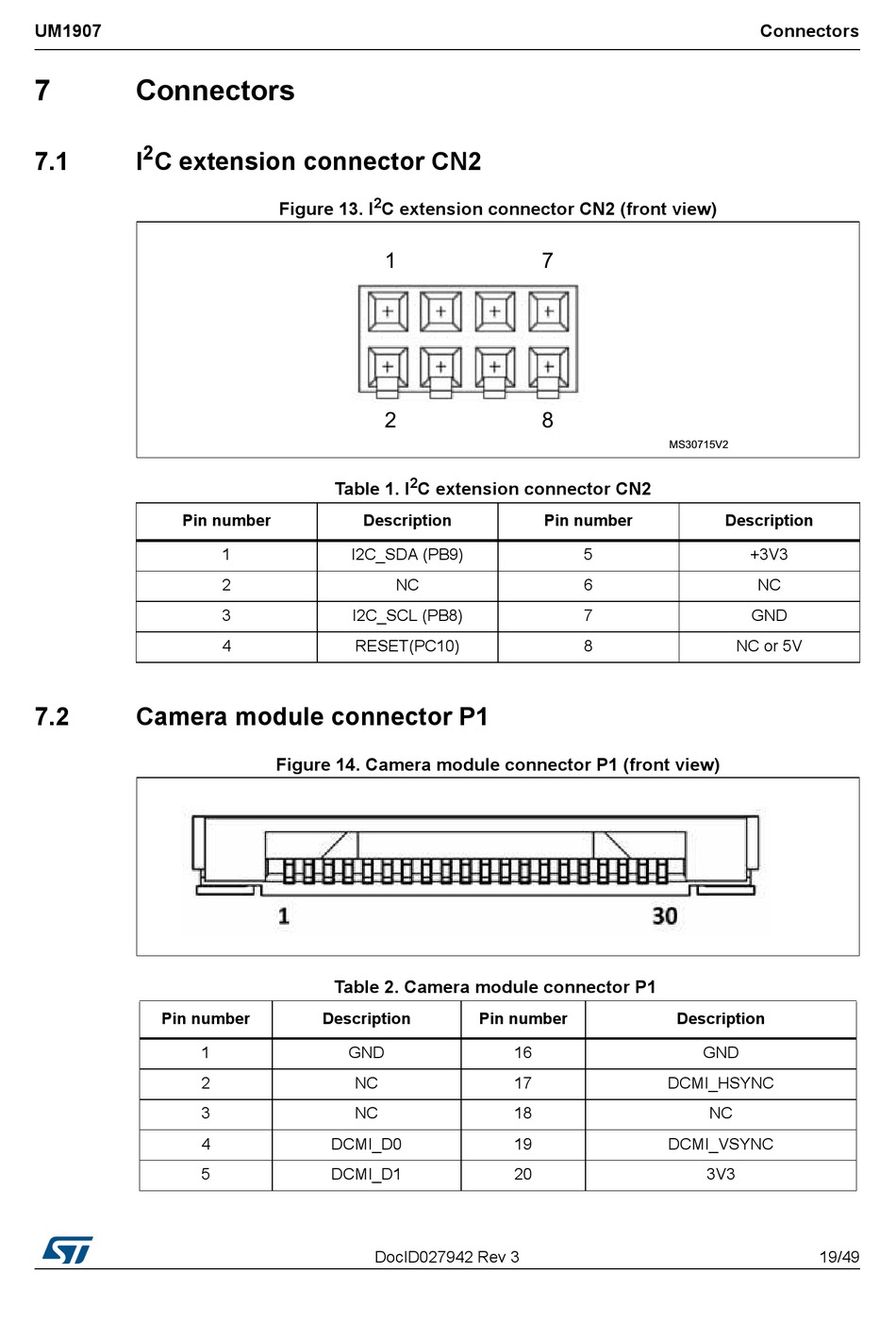

Connectors

2
7.1 I

C extension connector CN2

Pin number
7.2

Camera module connector P1

Pin number
1
2
3
4
5
2
Figure 13. I C extension connector CN2 (front view)
Table 1. I
Description
1 I2C_SDA (PB9)
2
3 I2C_SCL (PB8)
4 RESET(PC10)

Figure 14. Camera module connector P1 (front view)

Table 2. Camera module connector P1

Description
GND
NC
NC
DCMI_D0
DCMI_D1
DocID027942 Rev 3
2
C extension connector CN2
Pin number
NC
Pin number
16
17
18
19
20
Description
5 +3V3
6
7 GND
8 NC or 5V
Description
GND
DCMI_HSYNC
NC
DCMI_VSYNC
3V3
Connectors
NC
19/49
