INSTALLATION MANUAL –CCL-PT3 SMART & CCL-PT3 SMART 3G–

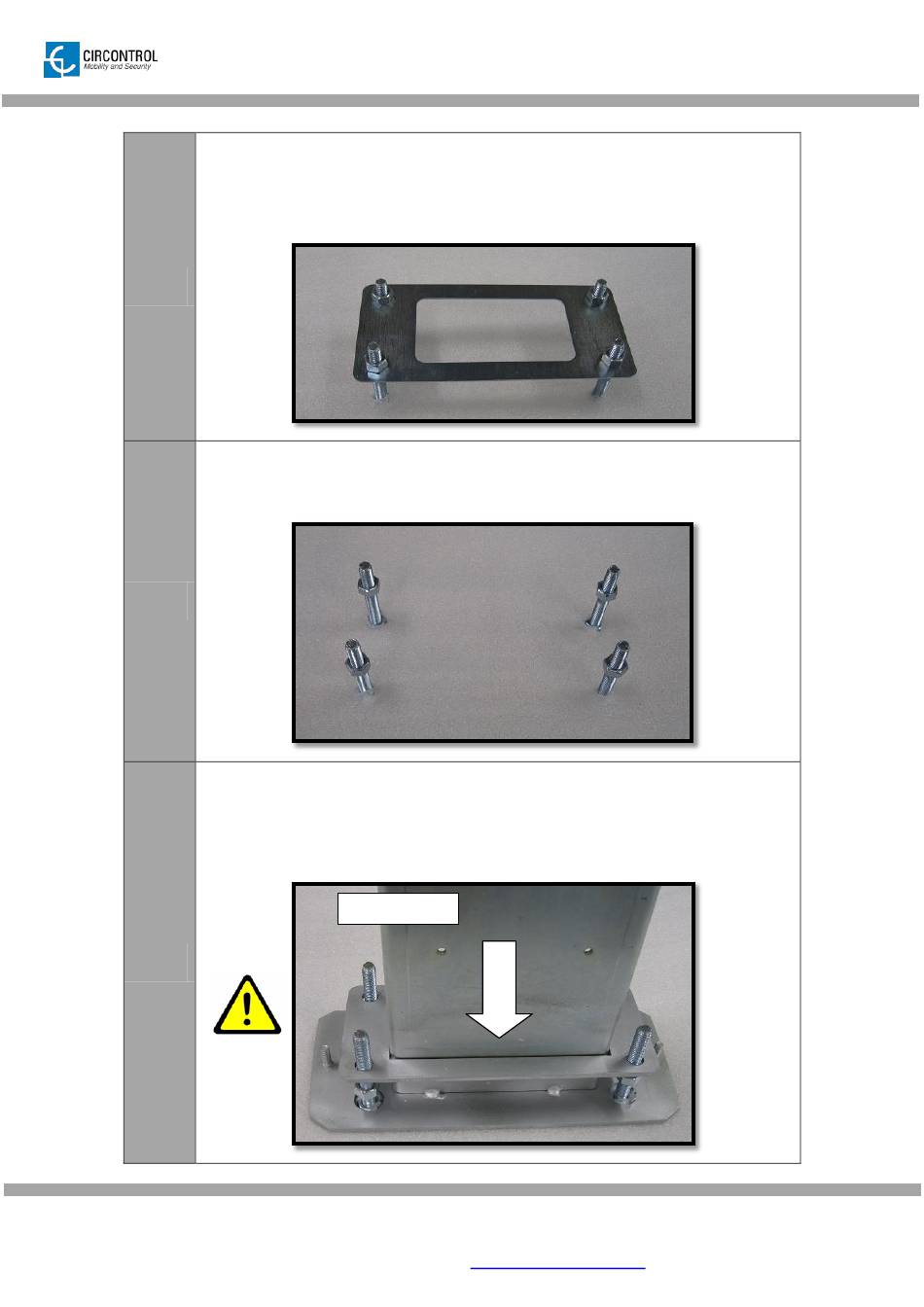

Once the four "L" threaded bars are undergrounded, the metal template must
be mounted, as shown in the image, in order to get the bars completely
aligned.
2
When dry, remove the template, and keep the four nuts that must be
lowered close to the floor level.
3
Insert the main fixing structure through the lower holes.
ATTENTION!!
: Be careful with the position of the base (BACK & FRONT)
due is not symmetrical.
4
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941
Web: www.circontrol.com – E-mail:
FRONT VIEW
ps-suport@circontrol.com
10
