9.3 Reference Scaling - Examples

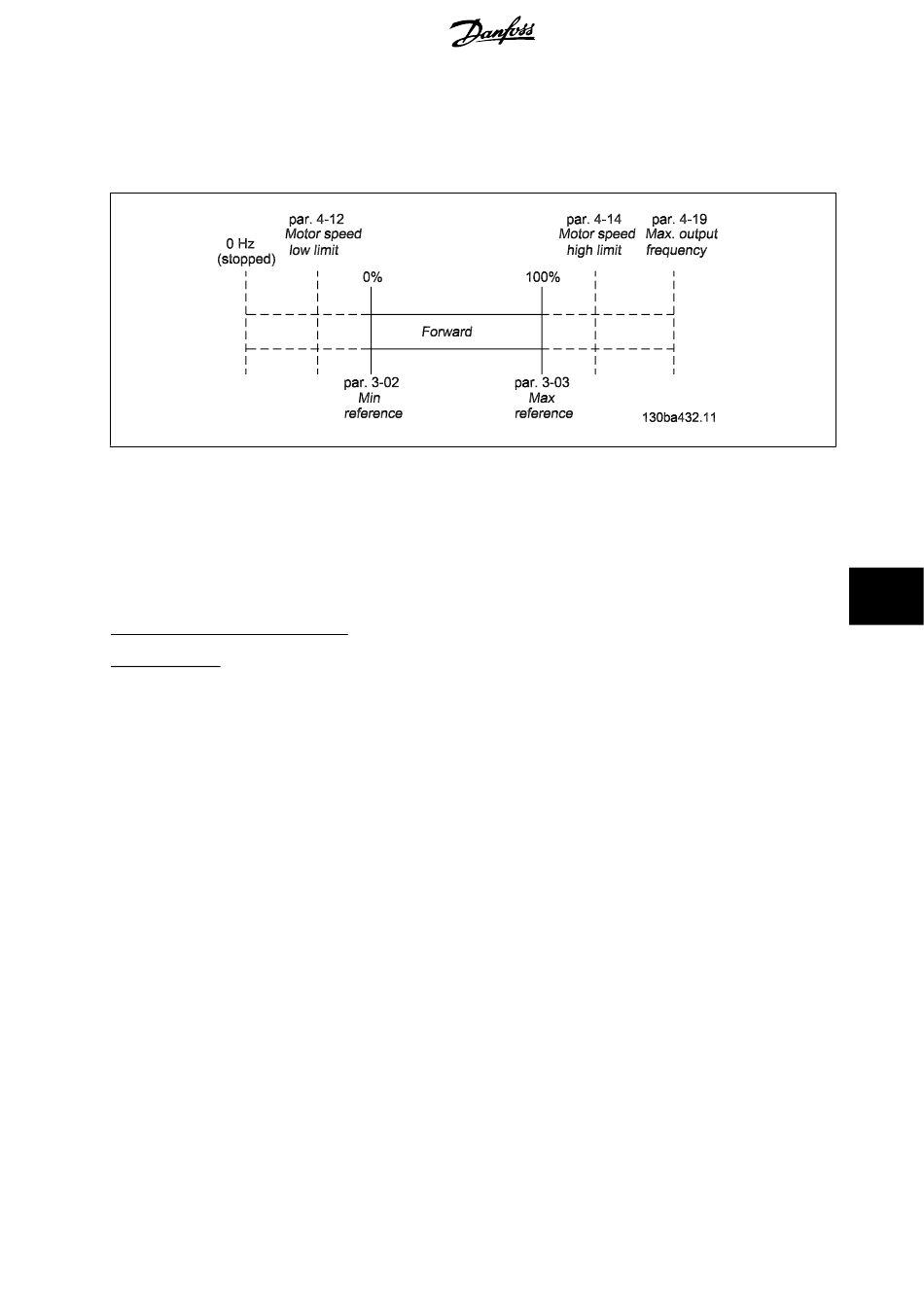

9.3.1 Reference Scaling - Open Loop
Example:
Minimum Reference
par. 3-02
Maximum Reference
par. 3-03
Reference send = 1500 hex (5376 dec)
Output:
The output can be calculated as:
Reference (decimal) * (par.3−03 − par.3−02)
16384
5376 * (1500 − 100)
+ 100 = 559 RPM
16384
= 100 RPM
= 1500 RPM
+ par.3 − 02 =
