In the above example, you can see that all cuelists will be released (Rel All). The next drop down
box allows you to select whether you will have intensity fade out first and then other attributes, or
if all attributes will fade simultaneously. Note that the release time for all cuelists released will be
as specified for each cuelist in the cuelist options selection (see "Cuelist Options" on page 131).
The final dropdown allows you to specify a single cuelist that will not be affected by the macro.
D
E L E T I N G O R
Once inserted into a cuelist, a macro can later be edited or deleted. Use the following procedure:
1 Select the desired cuelist and view it in the Cuelist window.
2 Press the macro action (the cell that contains the macro type followed by the cuelist number).
3 To edit the macro, enter any changes in the trigger or cuelist selection then press apply.
4 To delete the macro, press "Delete Macro."
5 The edits to the macro will be applied.
M
A S T E R I N G T H E

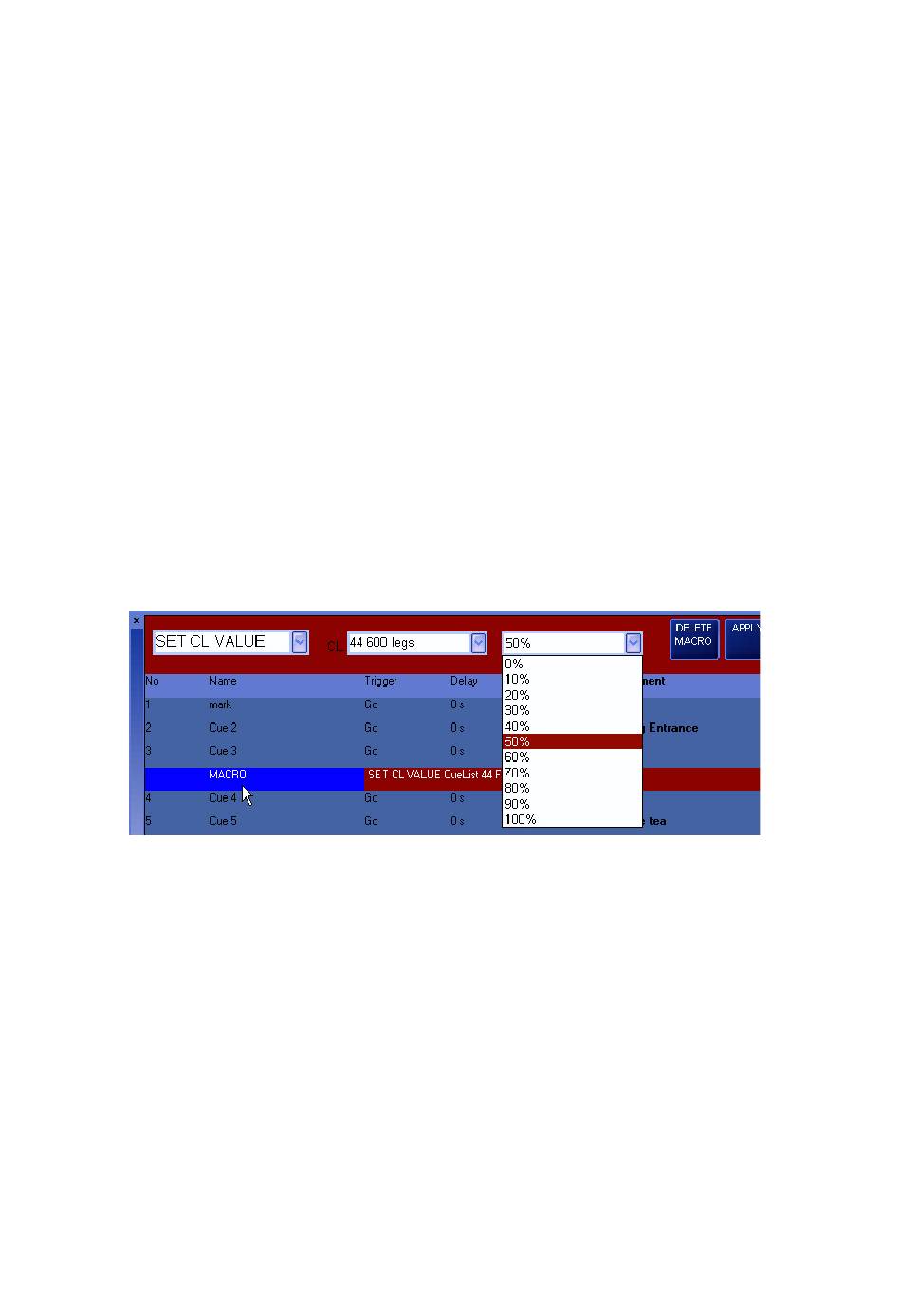

Using the "Set CL Value" macro allow you to change the intensity levels of another cuelist. This
is a proportional change in much the same way that pulling down the playback fader would affect
that cuelist. In fact, if the cuelist is on a physical playback, the fader will move to the specified
level.
In the example above, you can see that when cue 3 is reached on the current cuelist, the
intensities of all fixtures in all cues of cuelist 44 will be reduced by 50% of their recorded value.
M I D I
M A C R O
The Maxxyz console implements MIDI commands through the use of macros. A basic
understanding of MIDI and MIDI equipment is strongly advised and is beyond the scope of this
document, although enough information will be given for basic MIDI operation.
MIDIM
ACRO
On the back of the Maxxyz console, there is a MIDI A in and out port and a MIDI B in and out
port. These ports are identical in function. The in ports connect to the output from the MIDI
generating device (synthesizer, PC, etc.). Both the A input and B input will accept incoming MIDI
messages. Please note the the Maxxyz console does not differentiate between a message on
the A port and a message on the B port. An incoming message on either port will be treated
exactly the same. The A output port will send out only those messages that come in on the A
146
E
M
D I T I N G A
A C R O
L
E V E L O F A
P
C
HYSICAL
ONNECTION
C
U
U E L I S T
S I N G A
Maxxyz
M
A C R O
